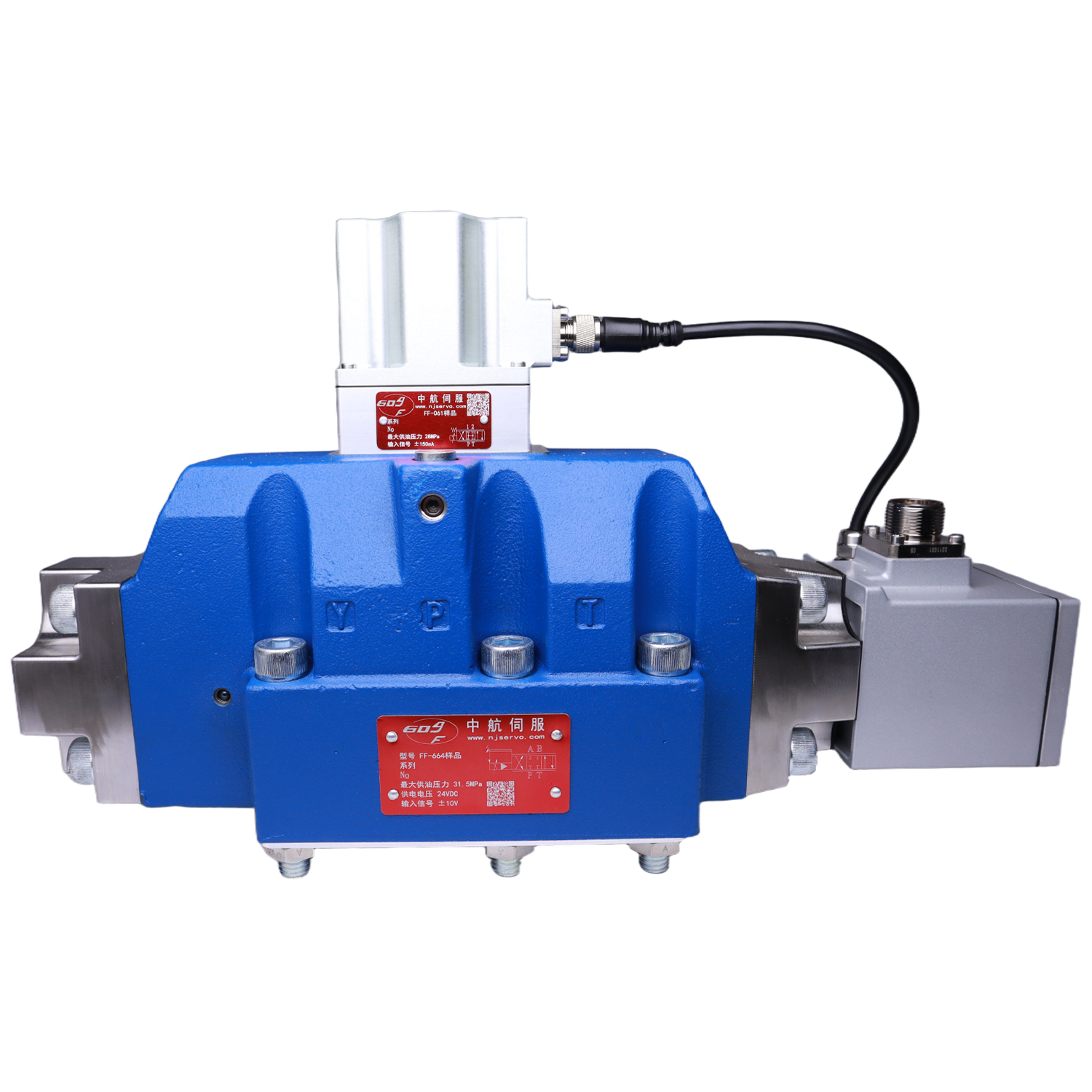

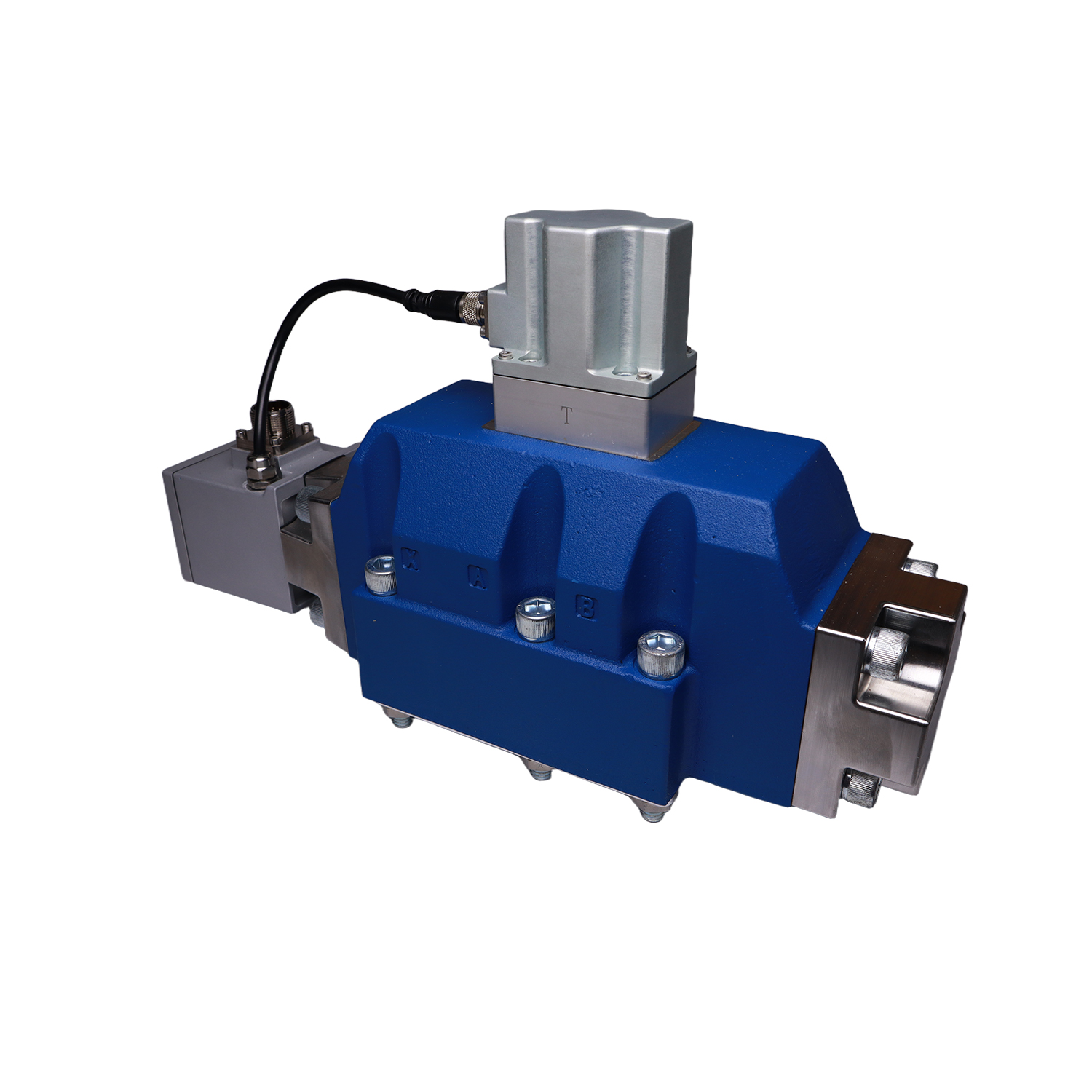

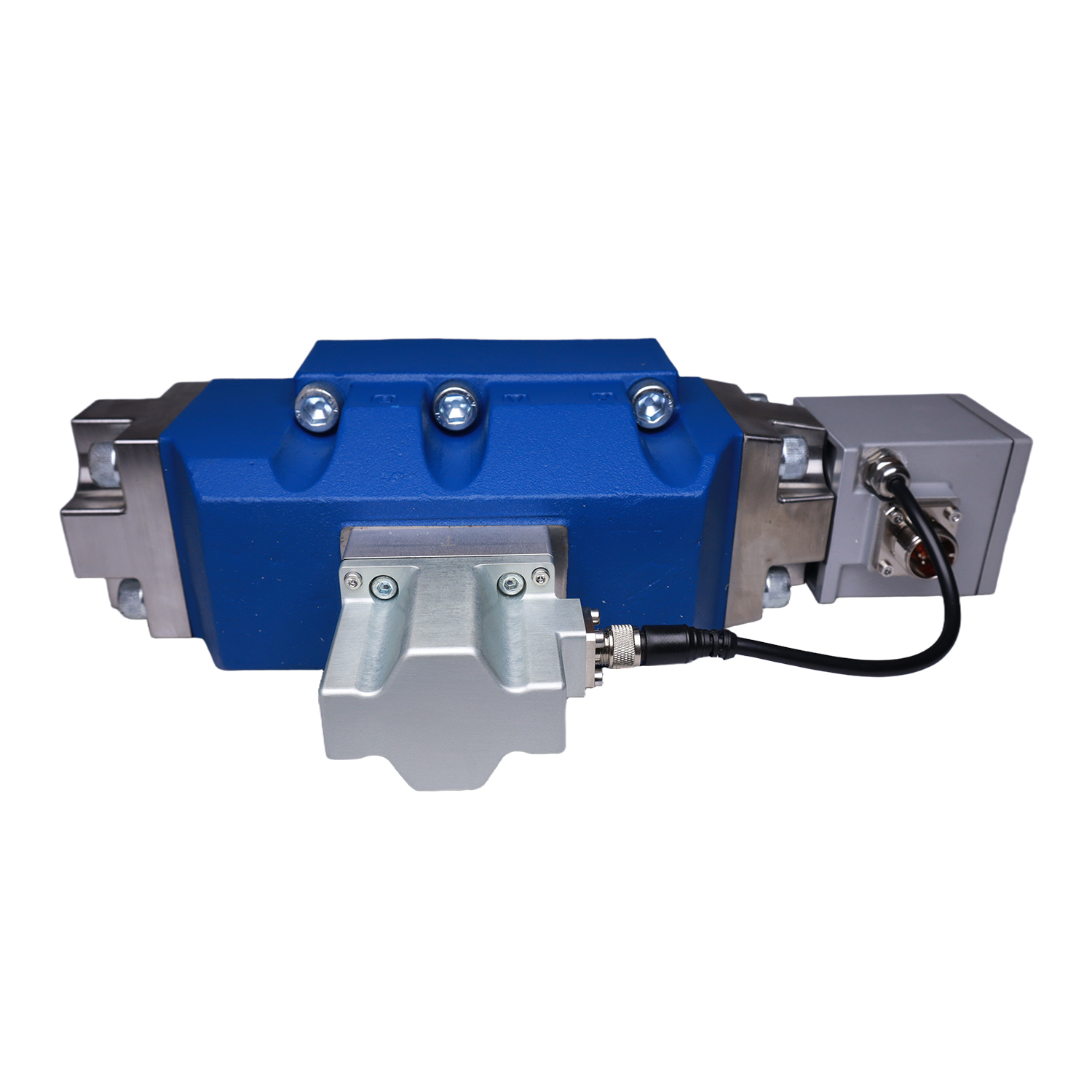

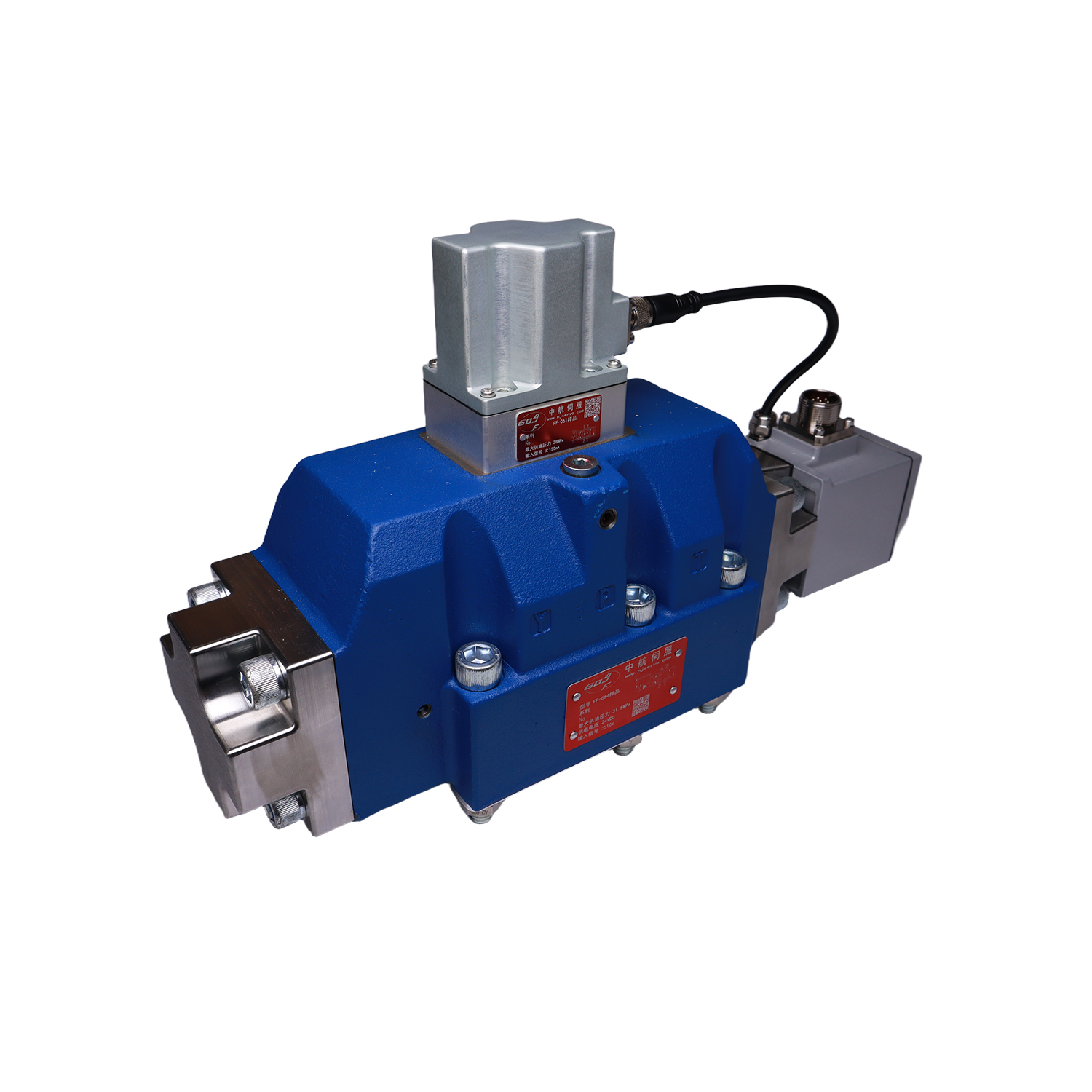

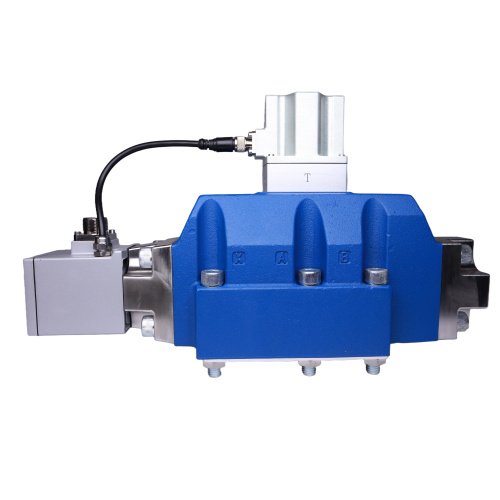

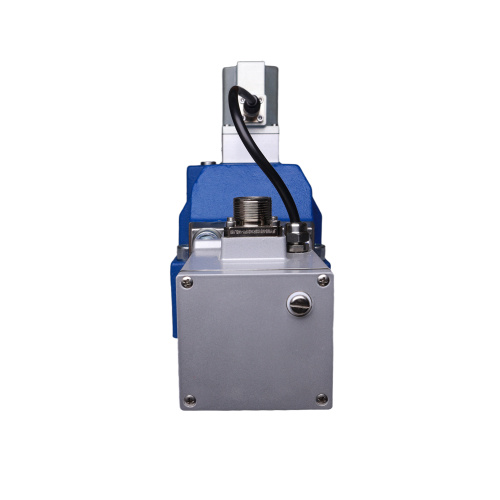

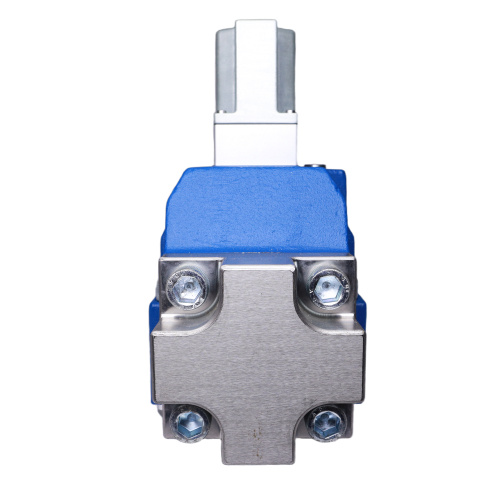

Hot Sale Electric Feedback High Flow Servo Valves

$1650-2250 /Set/Sets

Material	Stainless Steel
Contact Now

Payment Type: T/T
Incoterm: EXW,CIF,CFR,FOB,FAS,FCA,CPT
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: shanghai

Description

Product Attributes

Model No.: FF-664

Certification: Ul

Support Customization: Oem

Flow Medium: Oil

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	carton
Picture Example:

Supply Ability & Additional Information

Packaging: carton

Productivity: 1000SET/MONTH

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 1000sets/month

Certificate: ISO,CE.UL

Port: shanghai

Payment Type: T/T

Incoterm: EXW,CIF,CFR,FOB,FAS,FCA,CPT

Product Description

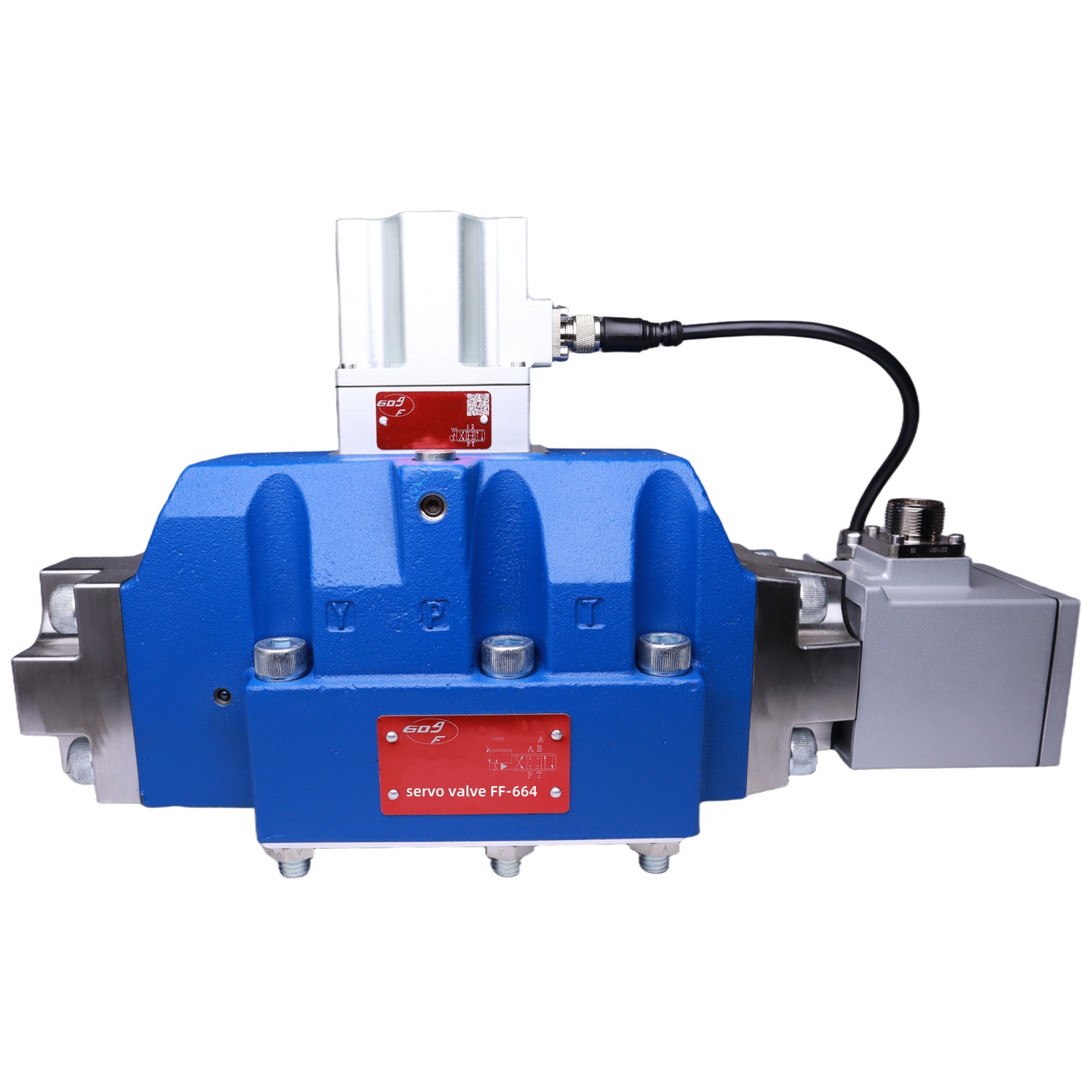

The FF-664 series electro-Hydraulic Servo Valve is an electric feedback high flow Servo Valve, and its pilot valve is divided into two types: high flow single-stage jet tube servo valve and dual nozzle baffle servo valve. Under a pressure difference of 1MPa, its flow rate can reach 550L/min. When the pilot valve is a high flow jet pipe servo valve, it has strong anti pollution ability and reliable performance; When the pilot valve is a two-stage dual nozzle baffle servo valve, it has fast response and high dynamic performance. The LVDT valve core position Sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. The internal and external oil supply of the pilot stage is available for selection, and the control box is designed with an external electrical zero position adjustment device for more convenient use. At the same time, according to the requirements, the safety position of the valve core can be customized after power-off and pressure interruption.

Product Features:

●Strong anti pollution ability

● Pilot stage internal and external supply and return oil are available for selection

●The secondary slide valve has a large driving force and reliable performance

● High dynamic response

●Good static characteristics and high resolution

●Power off, restore safety function after voltage interruption

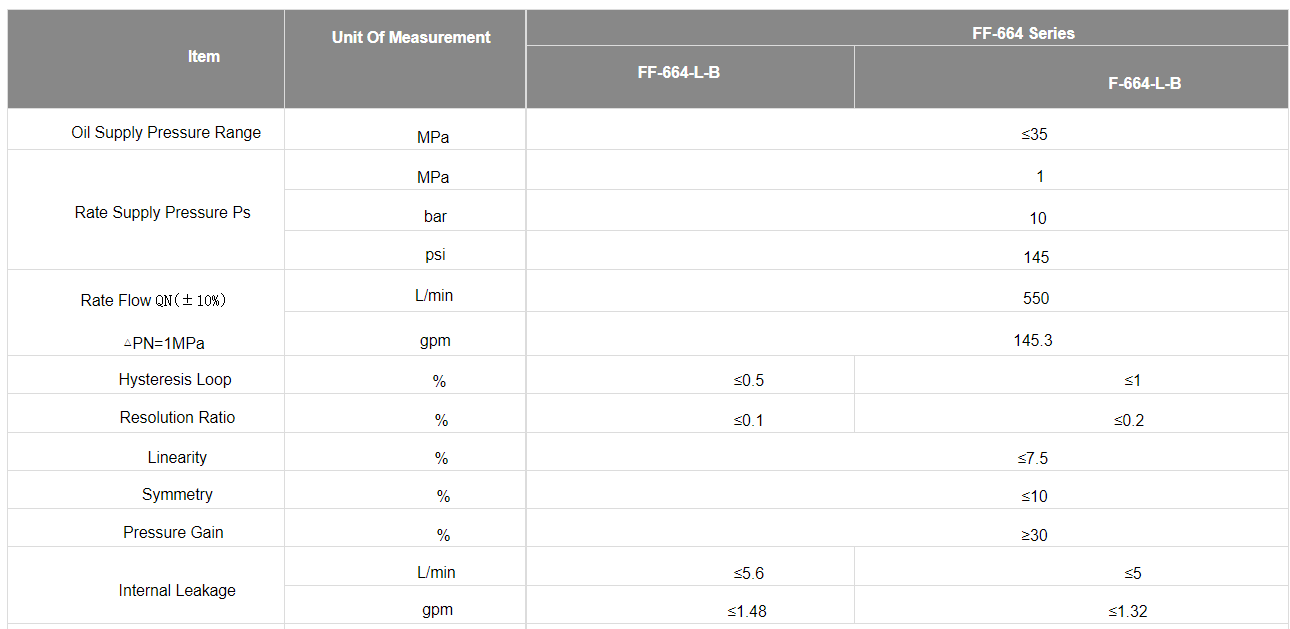

Technical Parameter：

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
