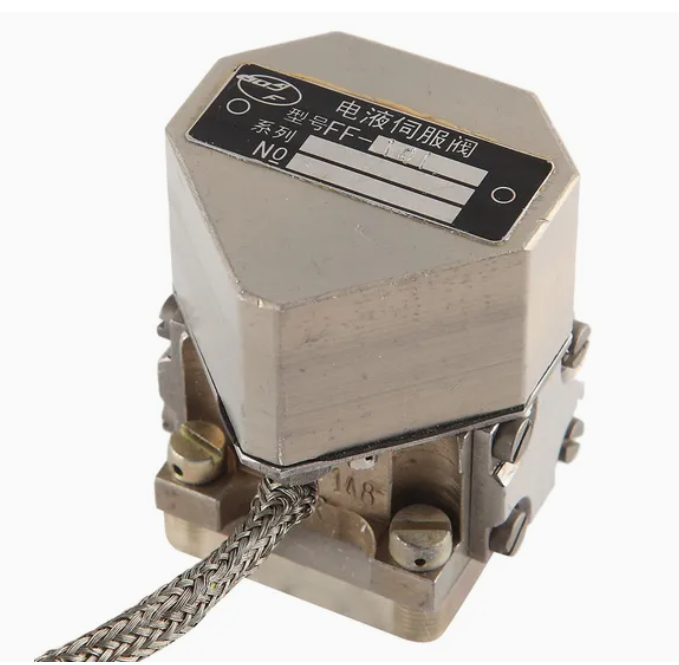

Double Nozzle Flapper Electro-hydraulic Servo Valves FF-101

Double Nozzle Flapper Electro-hydraulic Servo Valves FF-101

$100-5000 /Set/Sets

Material	Stainless Steel
pressure	Low Pressure
option	SUPPLY PRESSURE[Mpa]: 2~28 RATED SUPPLY PRESSURE Ps[MPa]:21 RATED FLOW Qn[L/min]: 1,1.5,2,4,6 or 8 RATED CURRENT In [mA]:10 or 40 HYSTERESIS [ % ]:≤4
Contact Now

Payment Type: T/T
Incoterm: FOB,CFR,Express Delivery,DDP,CPT,CIF,EXW,FAS,FCA
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai,Ningbo,Shenzhen

Description

Product Attributes

Model No.: FF-101

Origin: China

Certification: ISO,CE,UL

Certification: Ul

Support Customization: Oem

Place Of Origin: China

Medium Temperature: Medium Temperature

Power: Solenoid

Flow Medium: Oil

Product Name: Electro-hydraulic Servo Valve

Applications: Shipbuilding industry, chemical industry, power industry, metallurgical industry, machinery industry

Features: Stable performance, good linearity, and strong driving force

Type: Double Nozzle Flapper

Housing Material: Stainless steel housing

Sealing Material: Nitrile rubber, fluororubber

Ambient Temperature: -55℃~+150℃

Oil Temperature: -40℃~+120℃

Relative Humidity: 10%~90%

Vibration Resistance: 30g, three-axis, 5Hz~2kHz

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	Carton
Picture Example:

Supply Ability & Additional Information

Packaging: Carton

Productivity: 1000 sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: China

Supply Ability: 1000sets/month

Certificate: ISO,CE,UL

HS Code: 848180

Port: Shanghai,Ningbo,Shenzhen

Payment Type: T/T

Incoterm: FOB,CFR,Express Delivery,DDP,CPT,CIF,EXW,FAS,FCA

Product Description

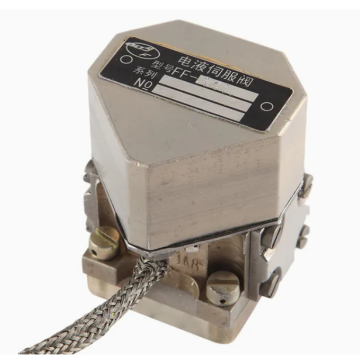

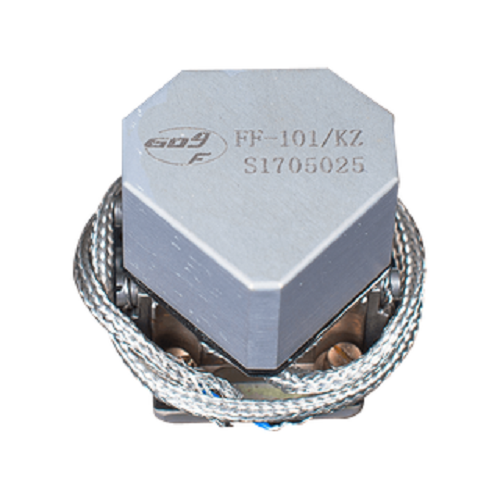

The FF-101 series electro-Hydraulic Servo Valve is a dual nozzle baffle force feedback electro-hydraulic flow Servo Valve.

This series of servo valves adopts a stainless steel shell with high structural strength, no valve sleeve inside, and a simple structure. It has a compact structure, light weight, high dynamic response, stable and reliable operation, and long lifespan. Very suitable for hydraulic control systems with strict volume and weight requirements or low flow rates, such as robot control systems and small hydraulic equipment.

Product Features:

●All stainless steel shell, high structural strength

● Compact internal structure, small volume, and light weight

● Small internal leakage and low power consumption

● Small hysteresis loop, high resolution, and high repeatability accuracy

●Good linearity, strong driving force, and small zero drift

●High control accuracy, fast dynamic response, and convenient operation

●Stable working performance, high reliability, and long service life

●The lead wire can be selected in both "P" and "R" directions

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
