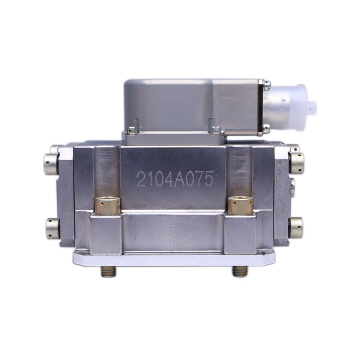

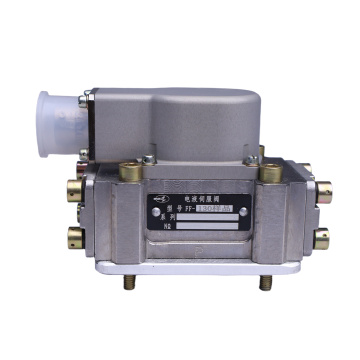

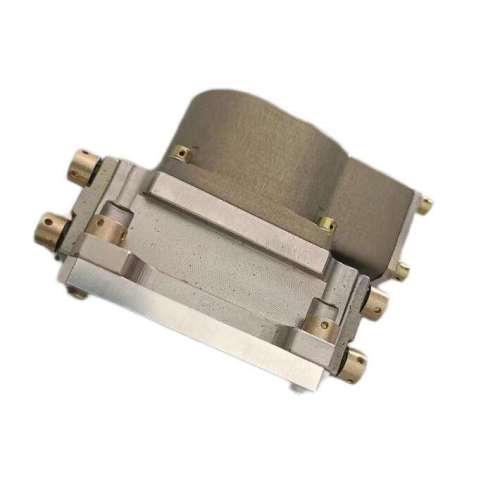

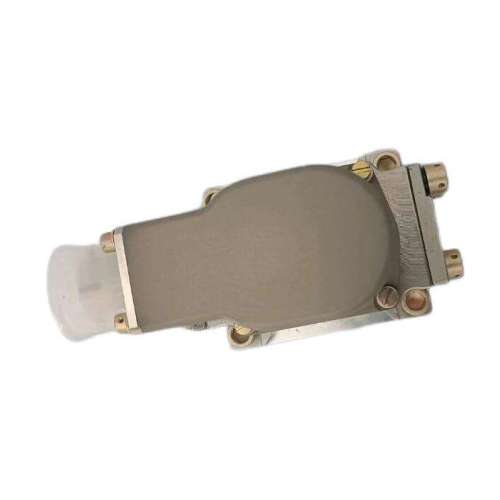

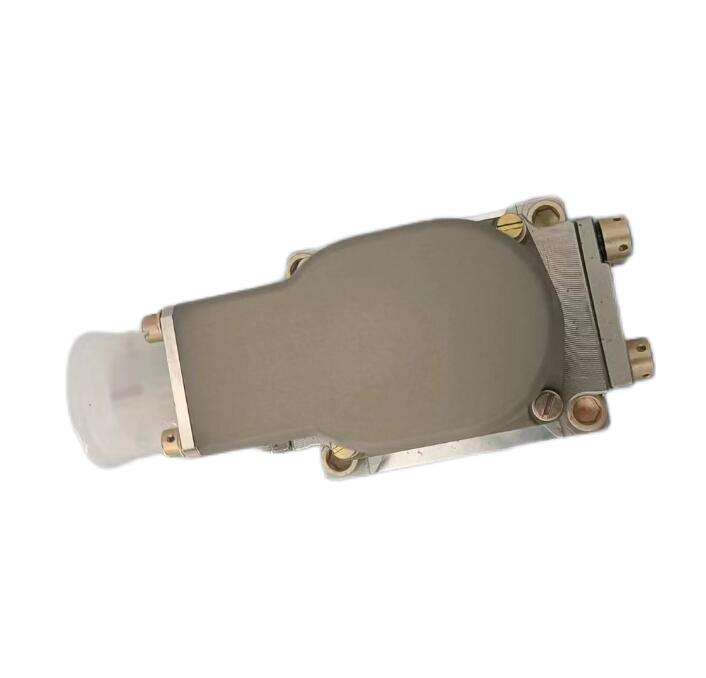

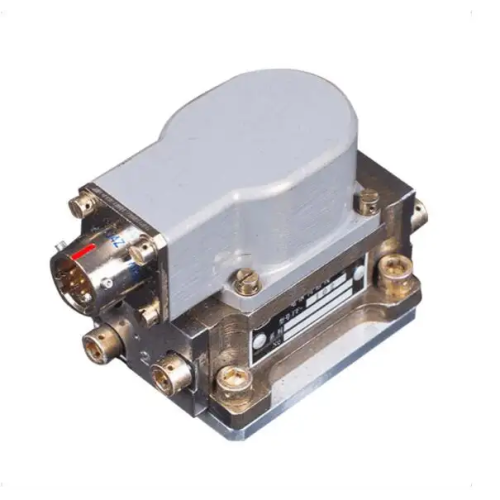

Electro-Hydraulic Flow Control Two Stage Servo Valve



Electro-Hydraulic Flow Control Two Stage Servo Valve

Name: 1
Uploaded: 2024-11-27T09:13:20+08:00
Description: The FF-102 series electro-hydraulic servo valve is a two-stage dual nozzle baffle flow servo valve with force feedback.

$1050-1550 /Set/Sets

Material	Stainless Steel
Contact Now

Payment Type: T/T,Paypal
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU
Min. Order: 1 Set/Sets
Transportation: Land,Ocean,Air,Express
Port: Shanghai

Description

Product Attributes

Model No.: FF-102

Support Customization: Oem

Power: Solenoid

Flow Medium: Oil

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	carton
Picture Example:

Supply Ability & Additional Information

Packaging: carton

Productivity: 1000sets/month

Transportation: Land,Ocean,Air,Express

Place of Origin: China

Supply Ability: 1000sets/month

Certificate: ISO,CE,UL

Port: Shanghai

Payment Type: T/T,Paypal

Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,DDP,DDU

01:56

Product Description

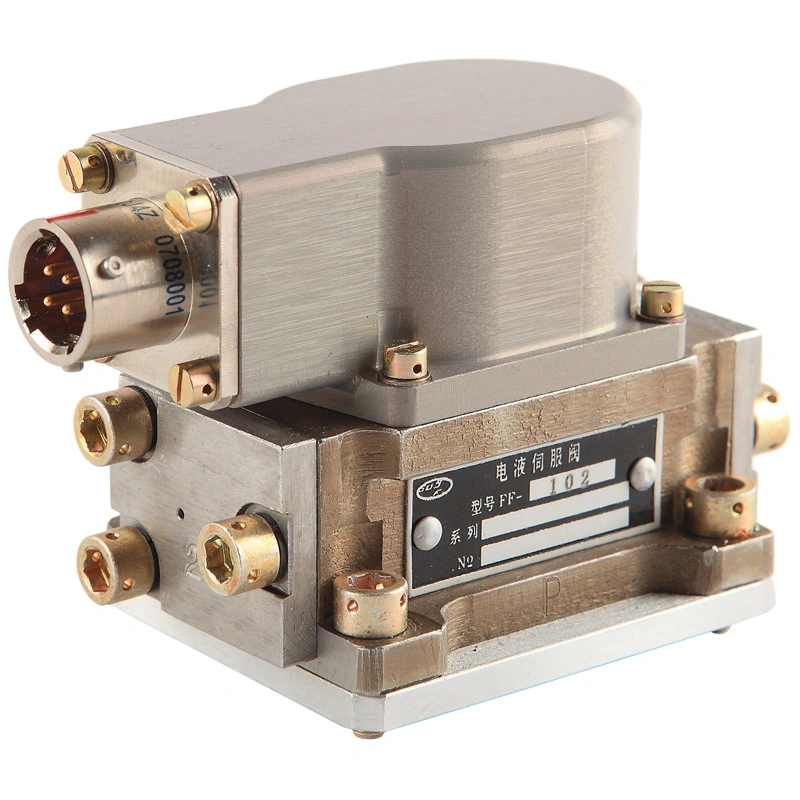

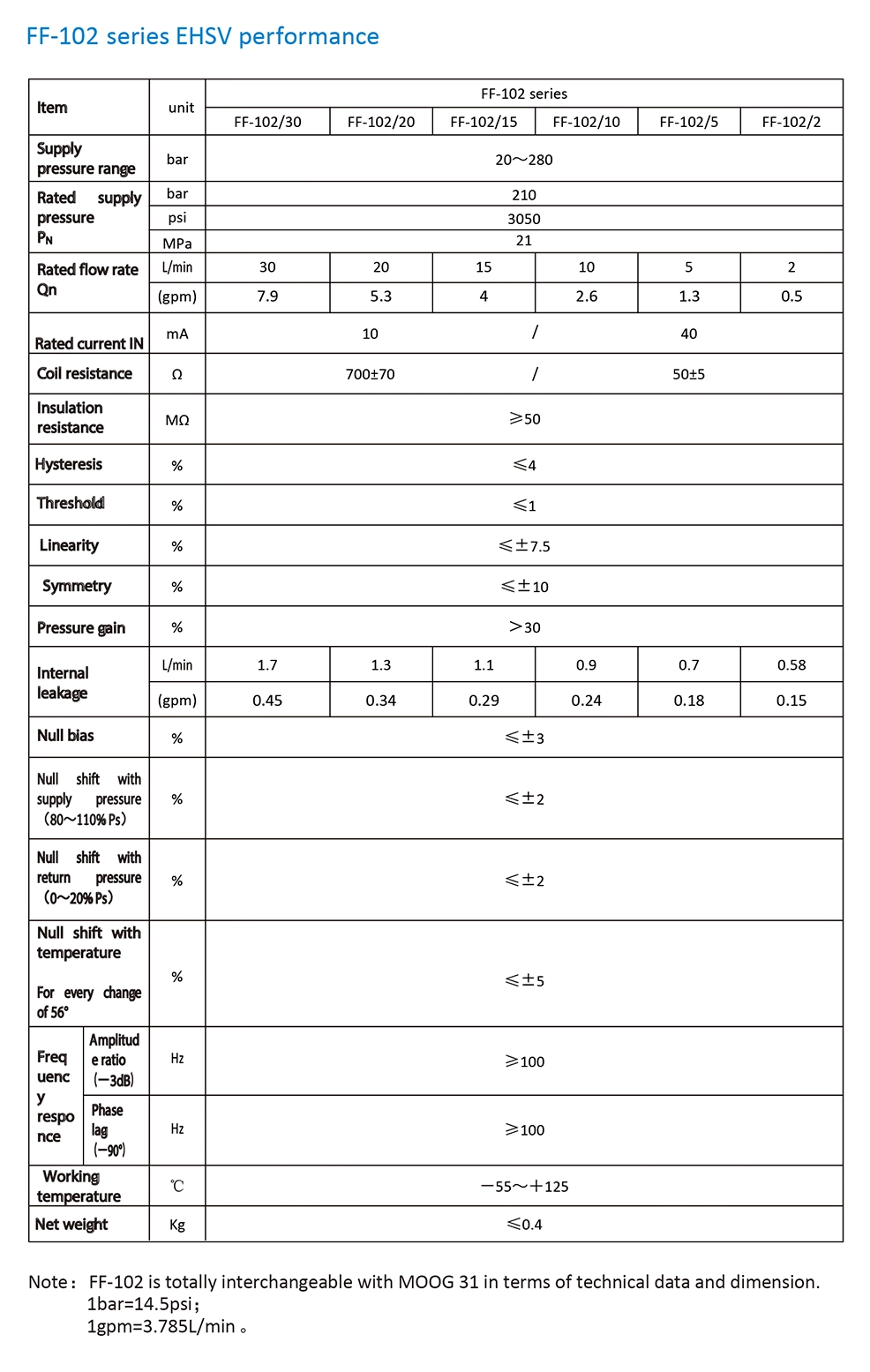

The FF-102 series electro-Hydraulic Servo Valve is a two-stage dual nozzle baffle flow Servo Valve with force feedback. Under a pressure difference of 21MPa, its flow range is 2L/min to 30L/min. This series of servo valves adopts a fully stainless steel shell, compact internal structure, high structural strength, and relatively small volume and weight. The installation direction of product plugs and sockets can be selected according to needs. It has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption. Suitable for small and medium-sized rolling mills, blow molding machines, testing equipment, etc.

● High control accuracy, fast dynamic response, and easy operation

● All stainless steel shell, high structural strength

● Compact internal structure, small volume, and light weight

● Stable working performance, high reliability, and long service life

● Small internal leakage and low power consumption

● Low hysteresis loop, high resolution, high repeatability accuracy

● Good linearity, strong driving force, and small zero drift

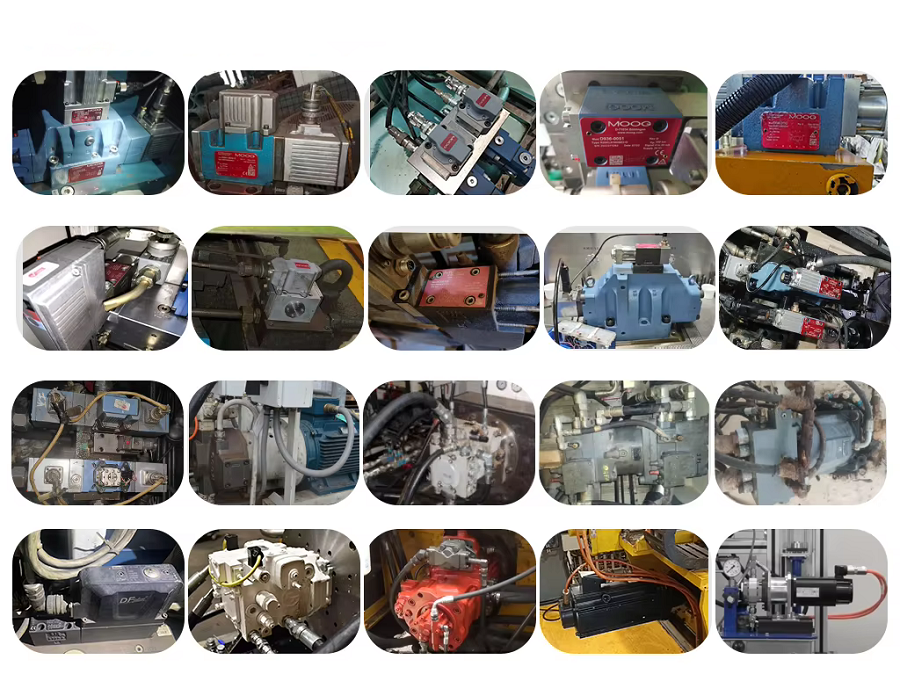

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
