Electro-Hydraulic Flow Control Servo Valve for Industry



Electro-Hydraulic Flow Control Servo Valve for Industry

Name: 1
Uploaded: 2024-11-27T09:13:20+08:00
Description: Product Description: The FF-106A series electro-hydraulic servo valve is a two-stage dual nozzle baffle flow servo

$1250-1650 /Set/Sets

Material	Stainless Steel
Contact Now

Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai

Description

Product Attributes

Model No.: FF-106A

Certification: Ul

Support Customization: Oem

Place Of Origin: China

Power: Solenoid

Flow Medium: Oil

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	carton
Picture Example:

Supply Ability & Additional Information

Packaging: carton

Productivity: 1000sets/month

Transportation: Ocean,Land,Air,Express

Place of Origin: CHINA

Supply Ability: 1000set/month

Certificate: IOS,CE.-,UL

Port: Shanghai

Payment Type: T/T

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA

01:56

Product Description

Product Description:

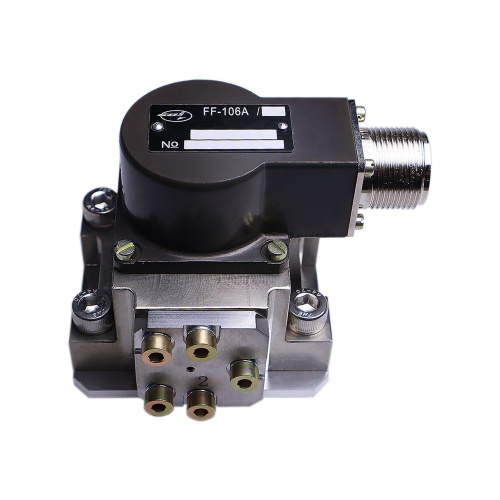

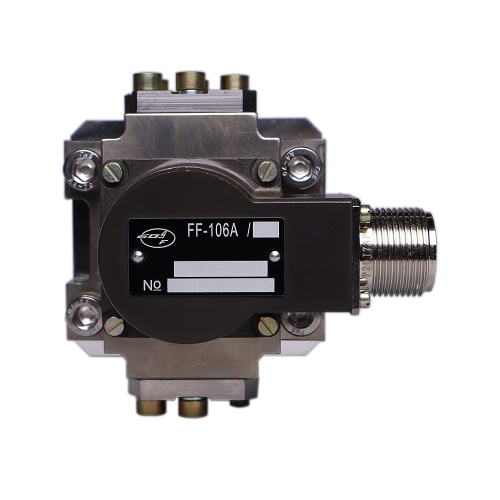

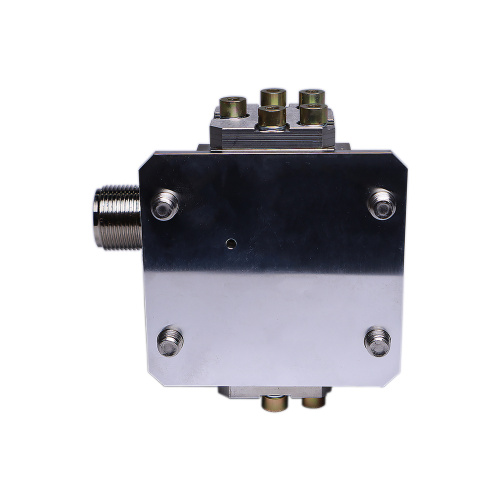

The FF-106A series electro-Hydraulic Servo Valve is a two-stage dual nozzle baffle flow Servo Valve with force feedback. Under a pressure difference of 21MPa, its flow range is 63L/min and 100L/min. This series of servo valves adopts a fully stainless steel shell, compact internal structure, high structural strength, and relatively small volume and weight. It has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption.

Product Features:

● High control accuracy, fast dynamic response, and easy operation

● All stainless steel shell, high structural strength

● Compact internal structure, small volume, and light weight

● Stable working performance, high reliability, and long service life

● Small internal leakage and low power consumption

● Low hysteresis loop, high resolution, high repeatability accuracy

● Good linearity, strong driving force, and small zero drift

● Products with fifth fuel supply can be provided upon request

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
