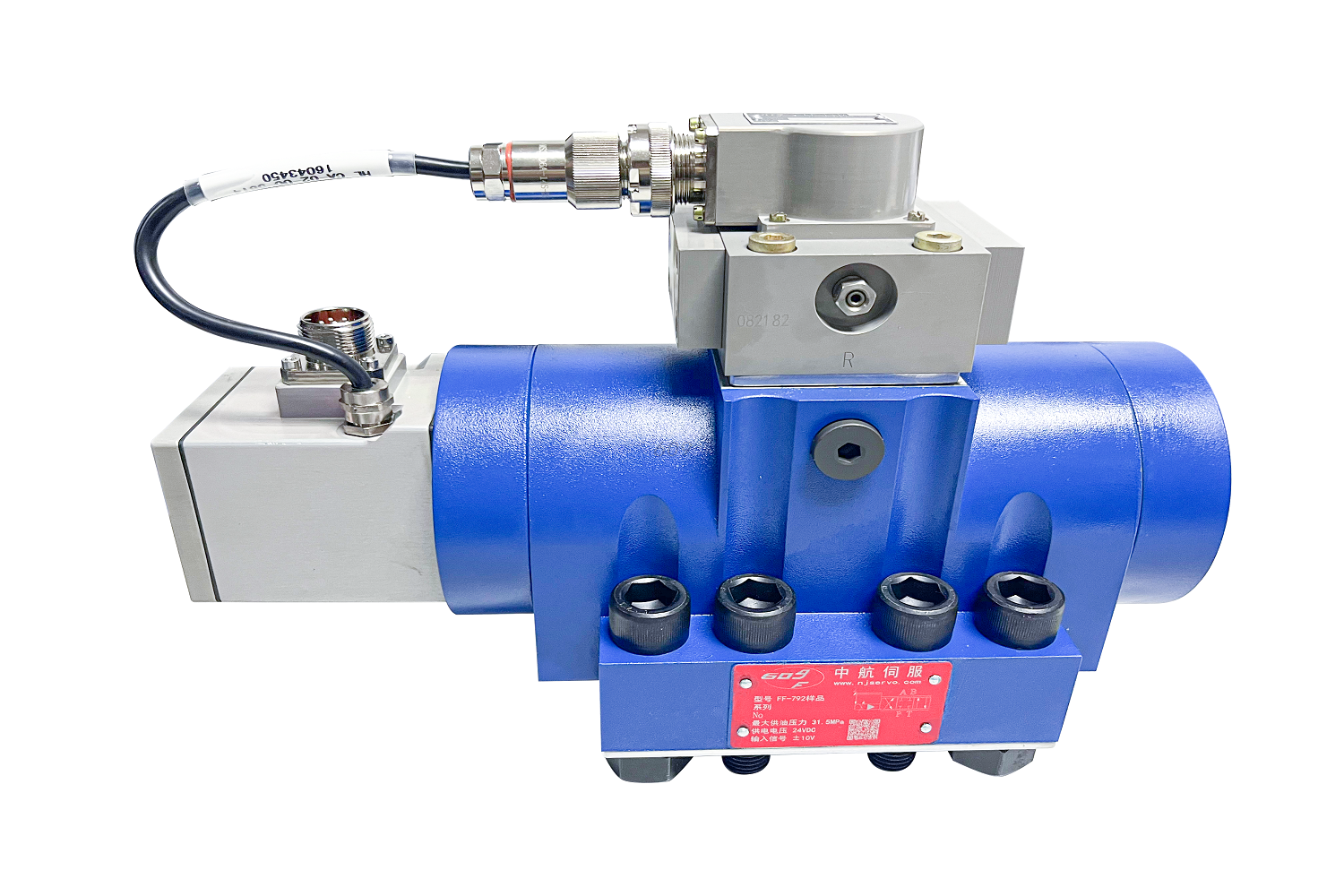

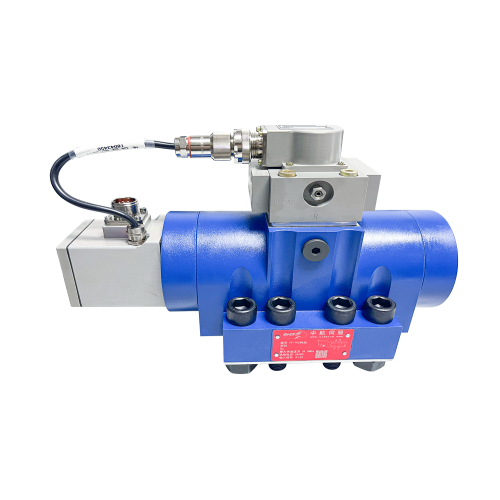

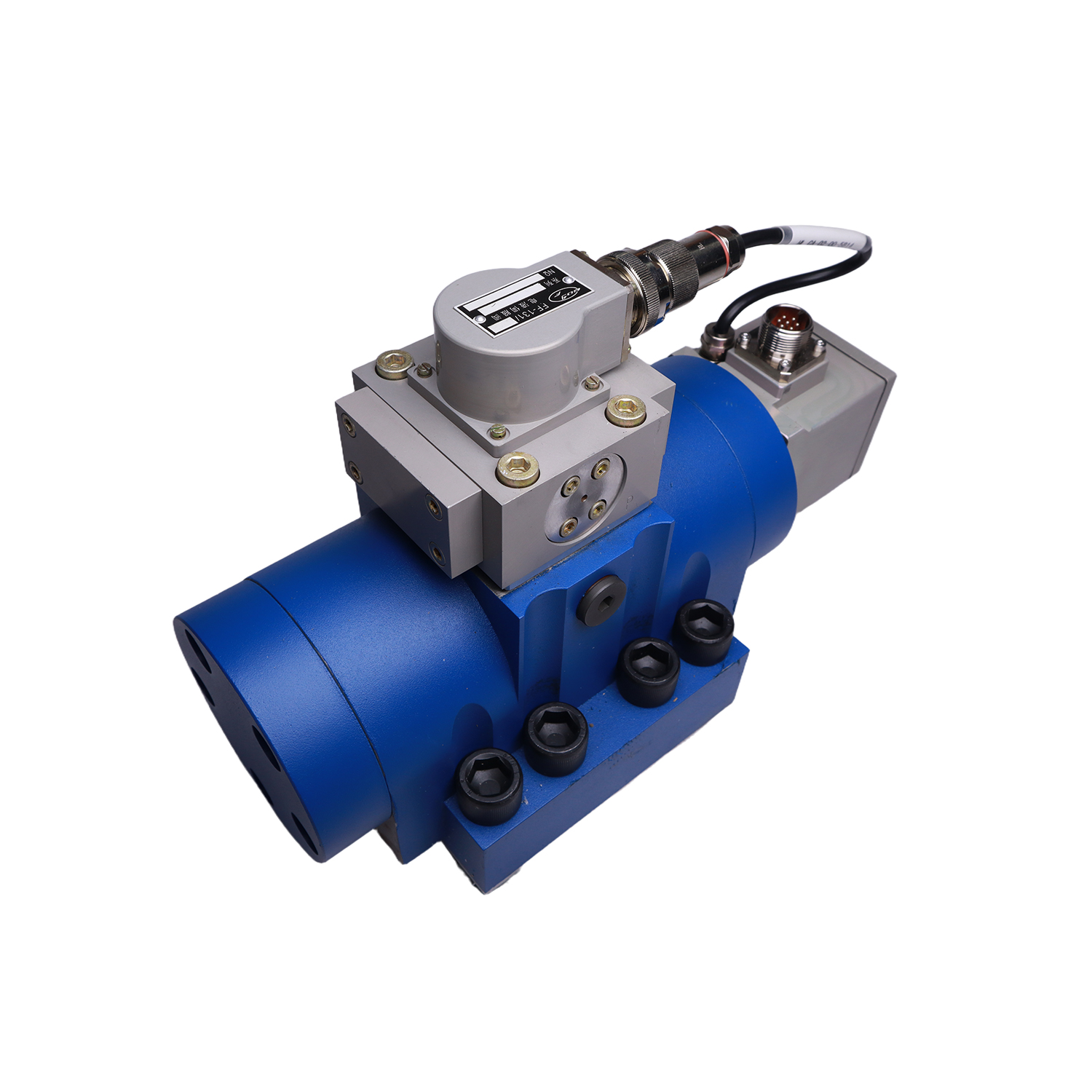

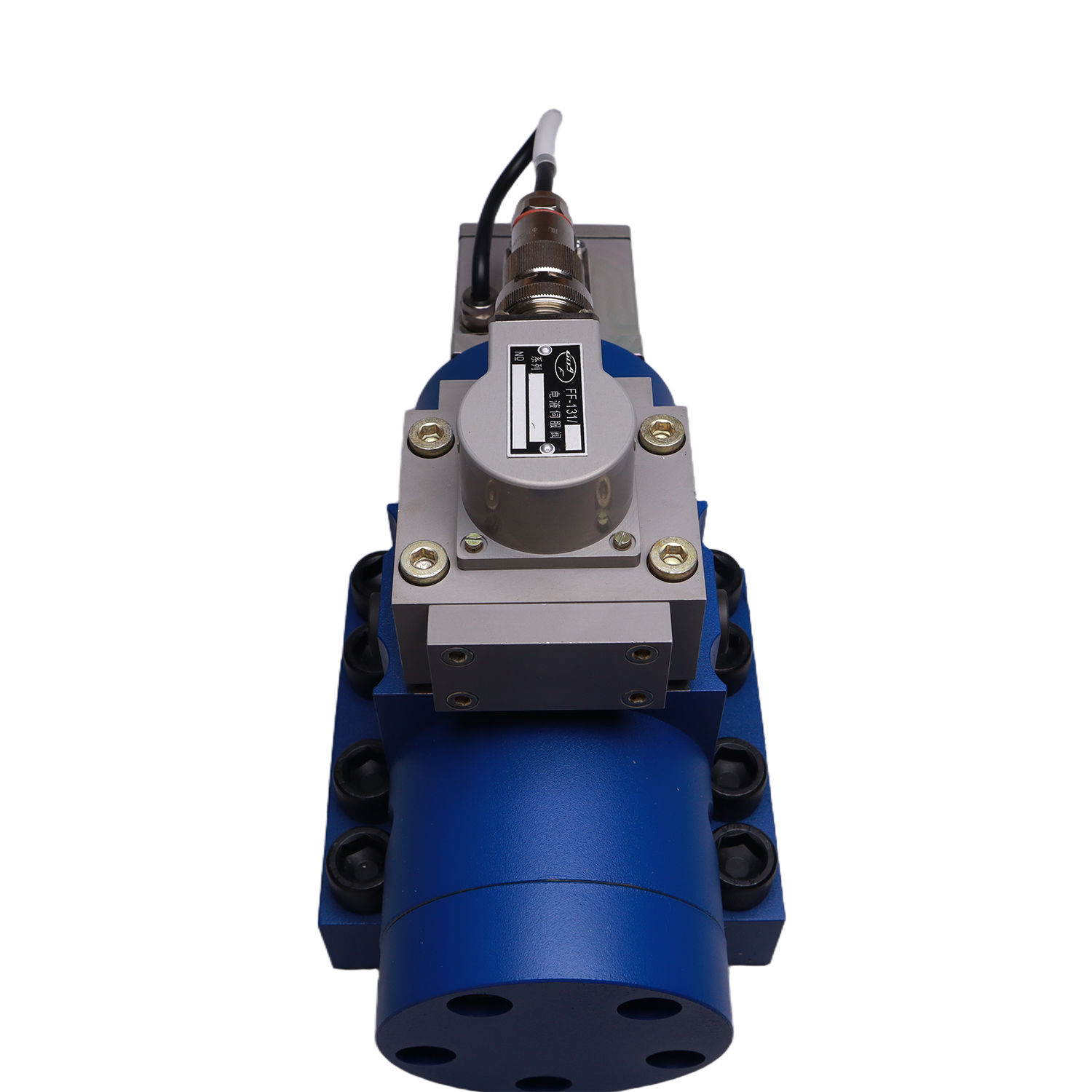

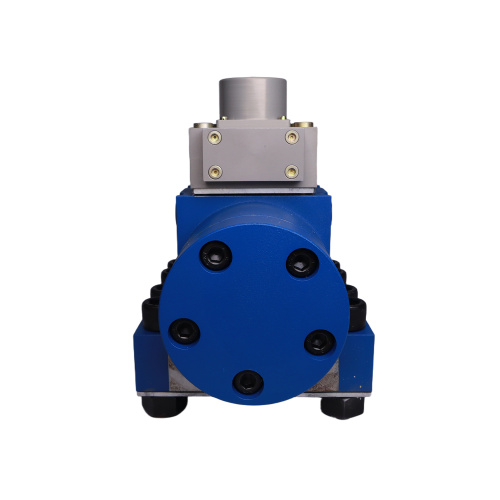

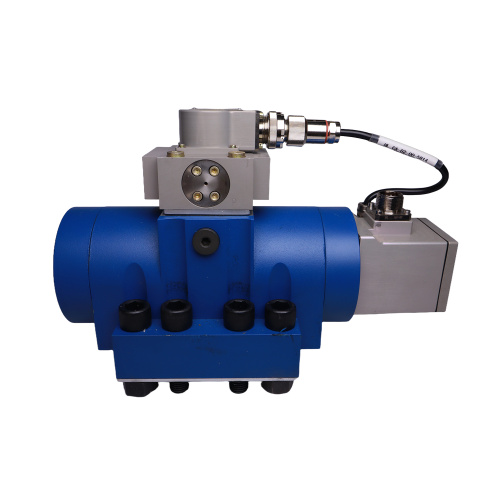

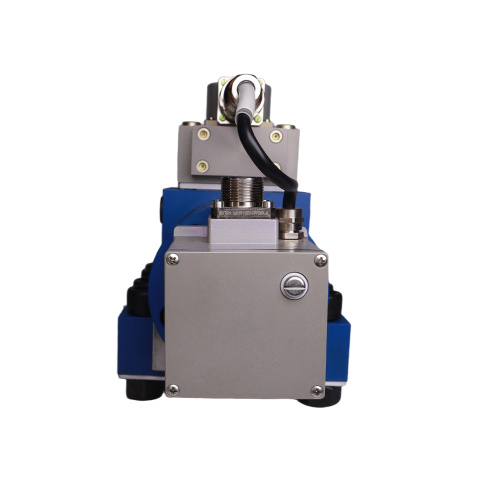

Nozzle-flapper Servo Valve for Steel Industry

$1650-1950 /Set/Sets

Material	Stainless Steel
Contact Now

Payment Type: T/T
Incoterm: CFR,FOB,FAS,FCA,CPT,CIP
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai

Description

Product Attributes

Model No.: FF-792

Certification: Ul

Support Customization: Oem

Flow Medium: Oil

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	carton
Picture Example:

Supply Ability & Additional Information

Packaging: carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 1000sets/month

Port: Shanghai

Payment Type: T/T

Incoterm: CFR,FOB,FAS,FCA,CPT,CIP

Product Description

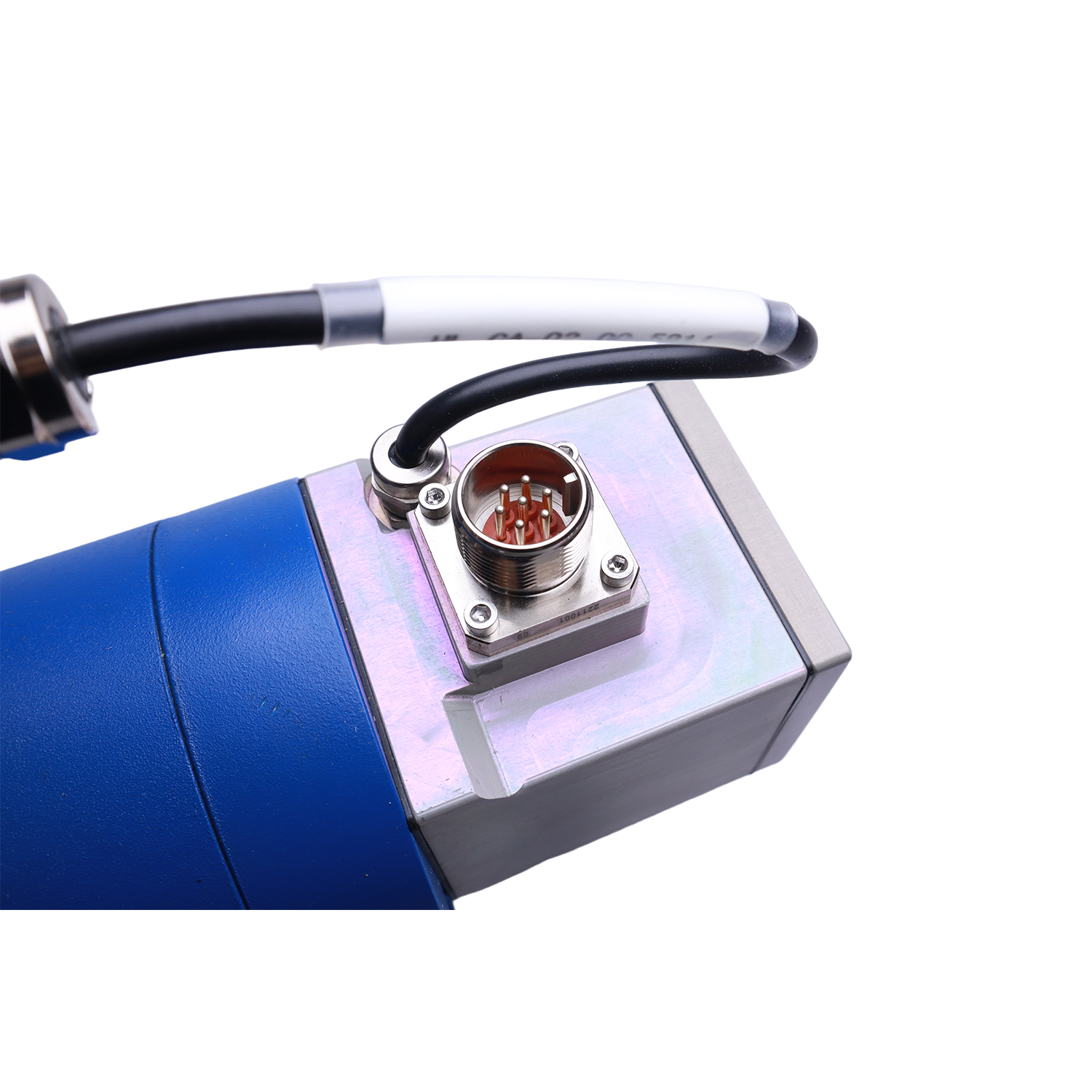

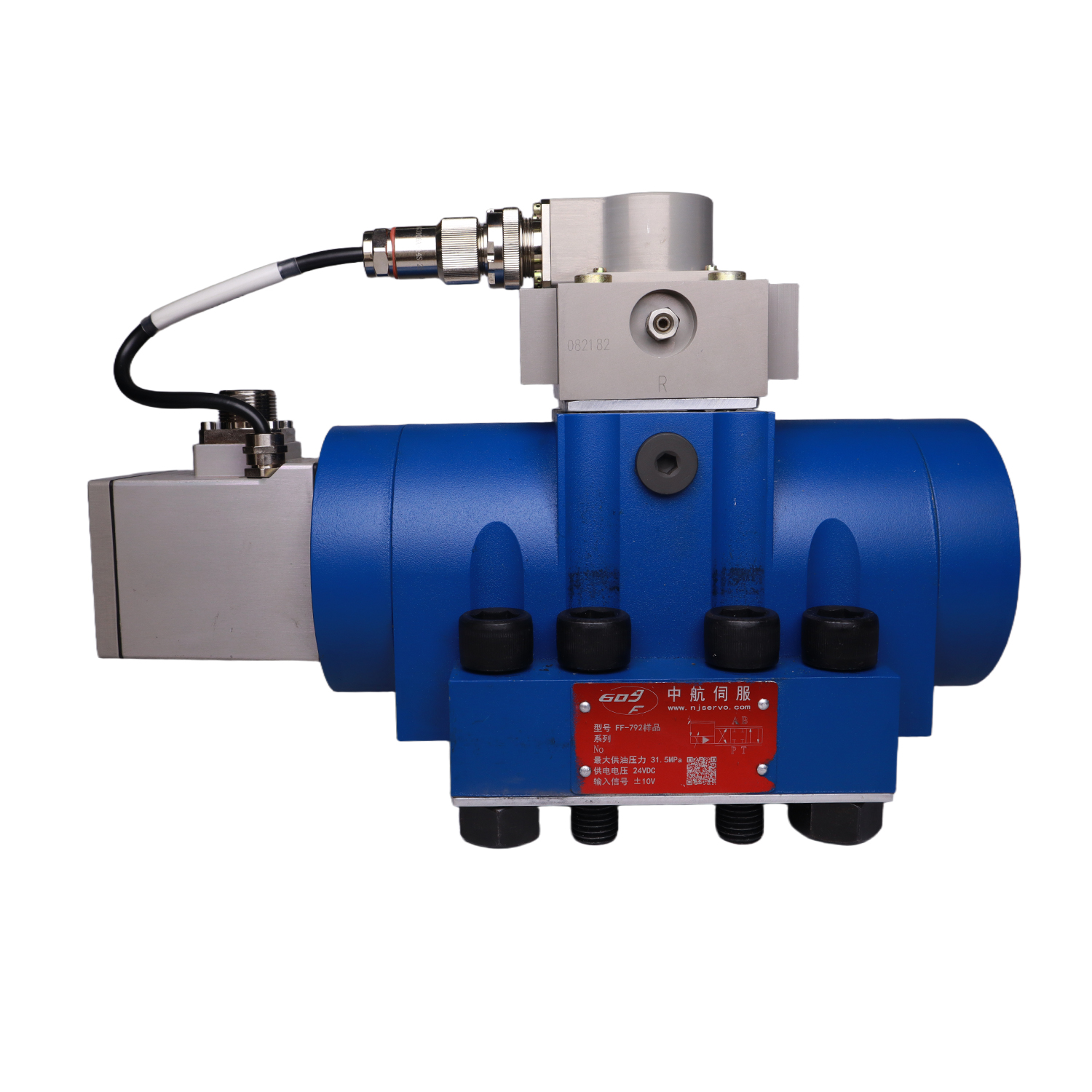

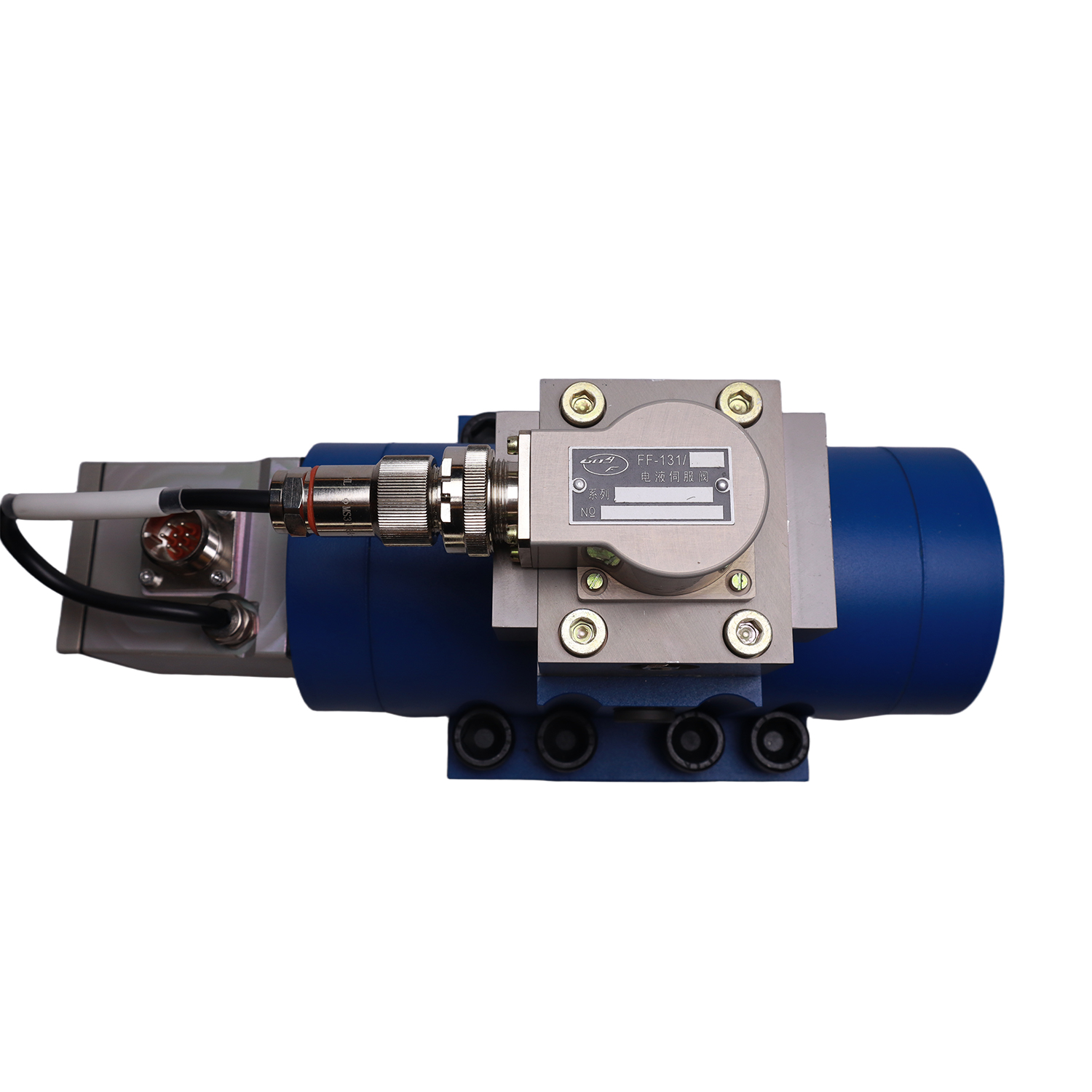

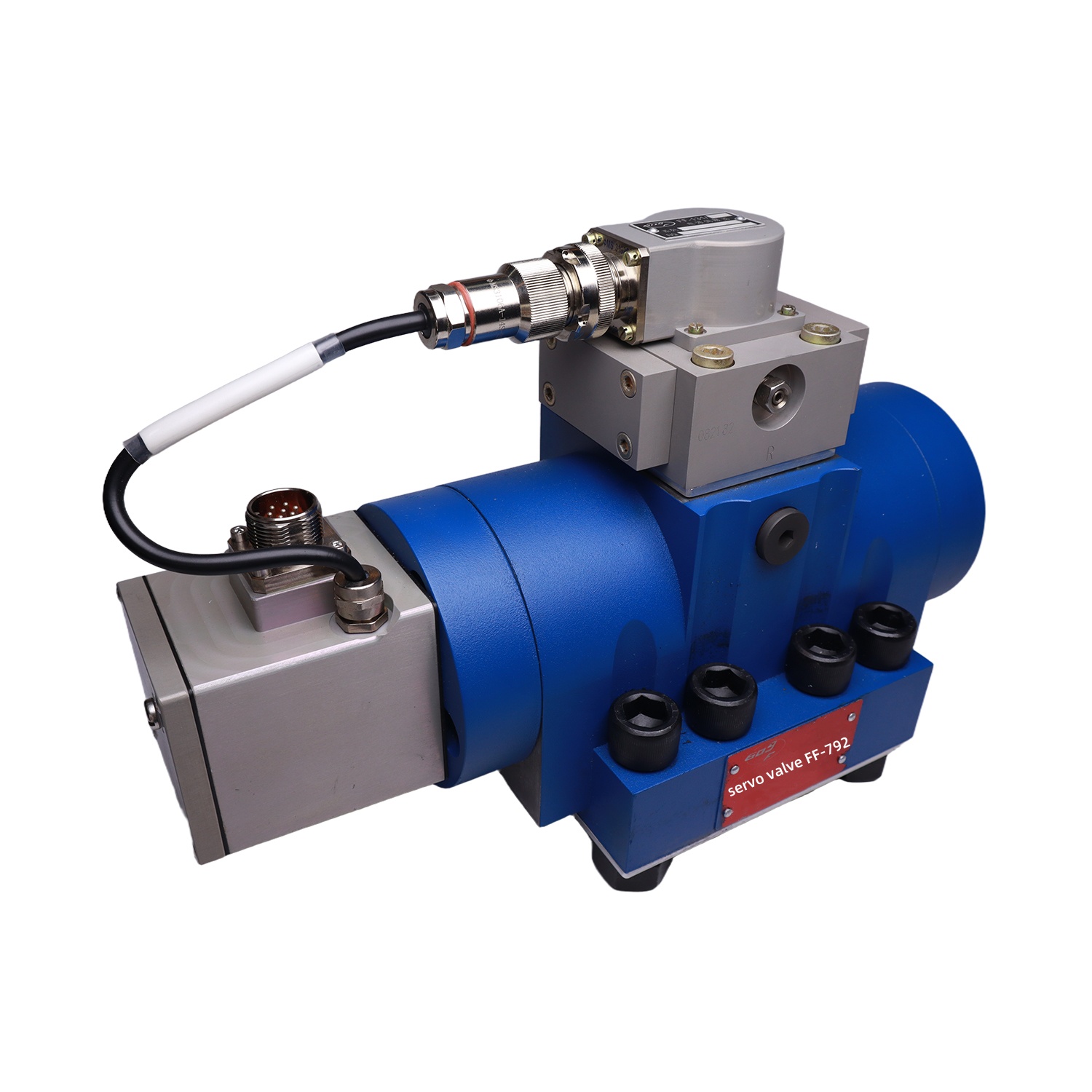

The FF-792 series electro-Hydraulic Servo Valve is an electric feedback three-stage nozzle baffle high flow Servo Valve. This type of servo valve uses a two-stage dual nozzle baffle servo valve as the pilot valve, with fast response and high dynamic performance. The LVDT valve core position Sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to two-stage jet tube high flow servo valves, its dynamic response is higher. This series of three-stage servo valves features both high flow rate and high dynamic response. The internal and external oil supply of the pilot stage is available for selection, and the control box is designed with an external electrical zero position adjustment device for more convenient use. Suitable for industries such as steel metallurgy.

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
