Electro-hydraulic Flow Control Servo Valves



Electro-hydraulic Flow Control Servo Valves

Name: 1
Uploaded: 2024-11-27T09:13:20+08:00
Description: The FF-101 series electro-hydraulic servo valve is a dual nozzle baffle force feedback electro-hydraulic flow servo

$1250-1650 /Set/Sets

Contact Now

Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Express,Air
Port: shanghai

Description

Product Attributes

Model No.: FF-101

Place Of Origin: China

Service System: Online Support

Valve Type: Flow Control Valve

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Express,Air

Port: shanghai

Payment Type: T/T

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT

01:56

Product Description

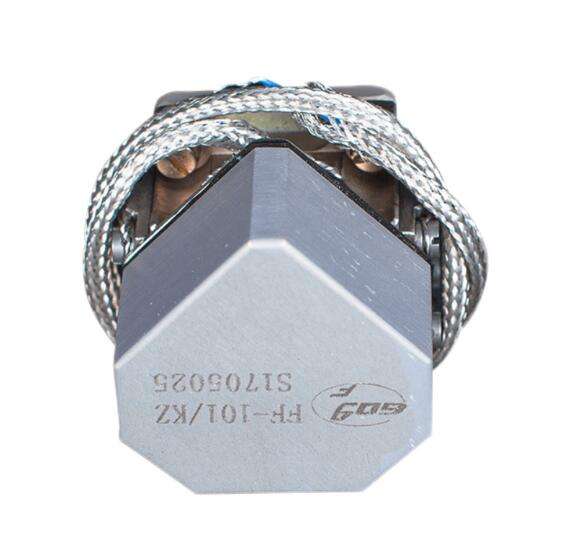

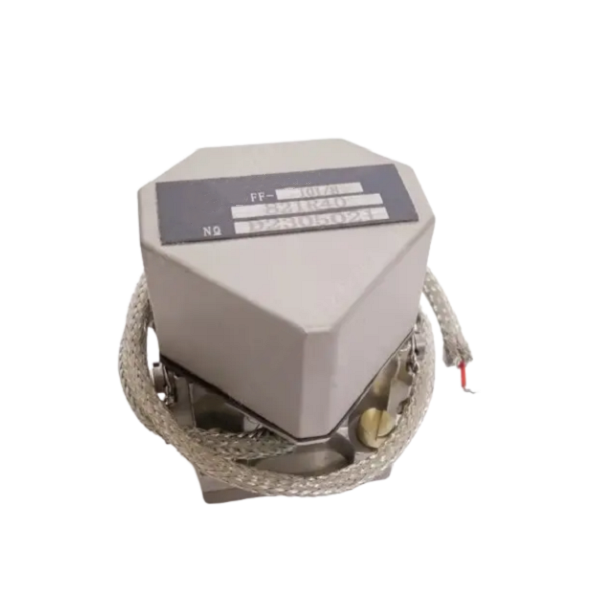

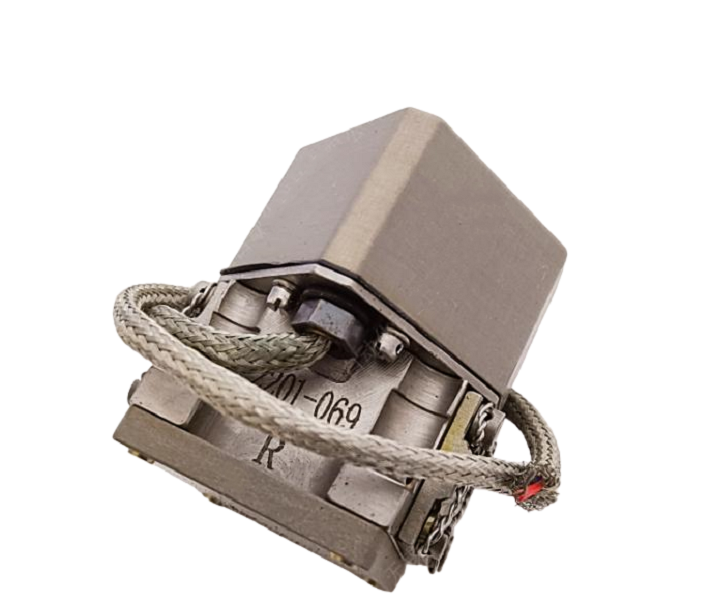

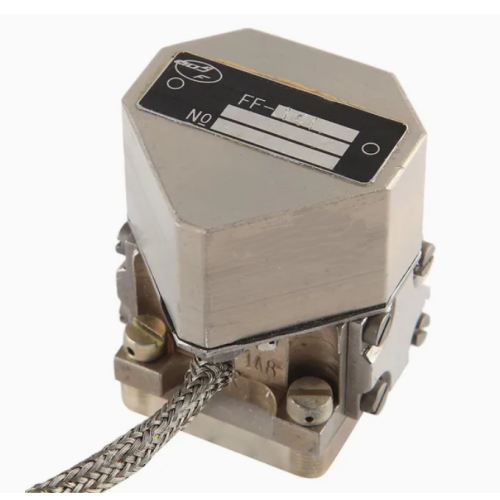

The FF-101 series electro-Hydraulic Servo Valve is a dual nozzle baffle force feedback electro-hydraulic flow Servo Valve.

This series of servo valves adopts a stainless steel shell with high structural strength, no valve sleeve inside, and a simple structure. It has a compact structure, light weight, high dynamic response, stable and reliable operation, and long lifespan. Very suitable for hydraulic control systems with strict volume and weight requirements or low flow rates, such as robot control systems and small hydraulic equipment.

Product Features:

●All stainless steel shell, high structural strength

● Compact internal structure, small volume, and light weight

● Small internal leakage and low power consumption

● Small hysteresis loop, high resolution, and high repeatability accuracy

●Good linearity, strong driving force, and small zero drift

●High control accuracy, fast dynamic response, and convenient operation

●Stable working performance, high reliability, and long service life

●The lead wire can be selected in both "P" and "R" directions

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
