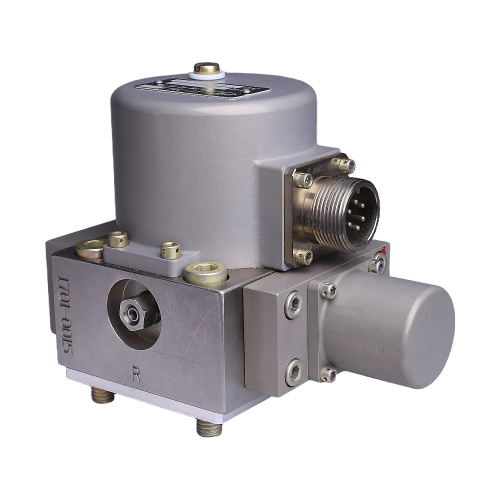

Electric Feedback Dual Nozzle Baffle Servo Valves

$1650-1950 /Set/Sets

Contact Now

Payment Type: T/T,Paypal
Incoterm: FAS,FCA,EXW,CIF,CFR,FOB
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Express,Air
Port: Shanghai

Description

Product Attributes

Model No.: FF-701

Certification: Reach

Support Customization: Oem

Place Of Origin: China

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Express,Air

Port: Shanghai

Payment Type: T/T,Paypal

Incoterm: FAS,FCA,EXW,CIF,CFR,FOB

Product Description

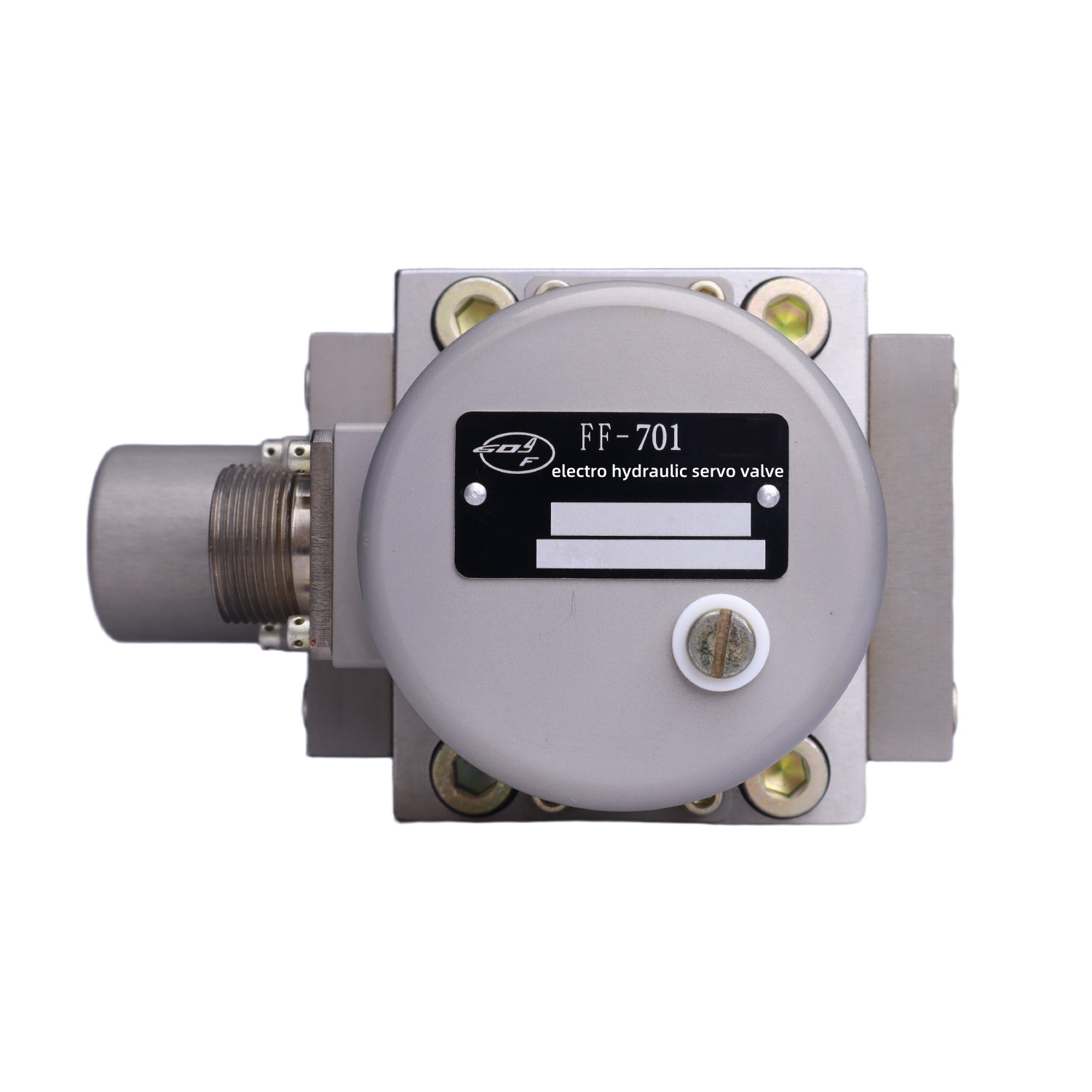

The FF-701 series electro-Hydraulic Servo Valve is a two-stage dual nozzle baffle high flow Servo Valve with electric feedback force feedback. Under a pressure difference of 21MPa, its flow range is 6.5L/min to 100L/min. This series of electro-hydraulic servo valves is similar to the FF-131 series, with the addition of LVDT valve core position Sensor and controller for position closed-loop control on the basis of the latter, resulting in smaller hysteresis, higher resolution, better repeatability, and taking into account the advantages of both force feedback servo valves and electric feedback servo valves, making it more convenient to use. The standard product of this series of servo valves adopts an aluminum alloy shell, which is lightweight. The product has an external electrical zero adjustment structure, which facilitates users to adjust according to their actual needs. The product has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption. The product installation surface has an optional fifth oil supply port, which can supply oil separately to the pilot stage. If the user's system pressure is particularly high, products with stainless steel shells can be customized.

Product Features:

● High control accuracy, fast dynamic response, and easy operation

● Compact internal structure, small volume, and light weight

● Stable working performance, high reliability, and long service life

● Small internal leakage and low power consumption

● Low hysteresis, high resolution, and high repeatability accuracy

● Good linearity, strong driving force, and small zero drift

Hot Products :

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
