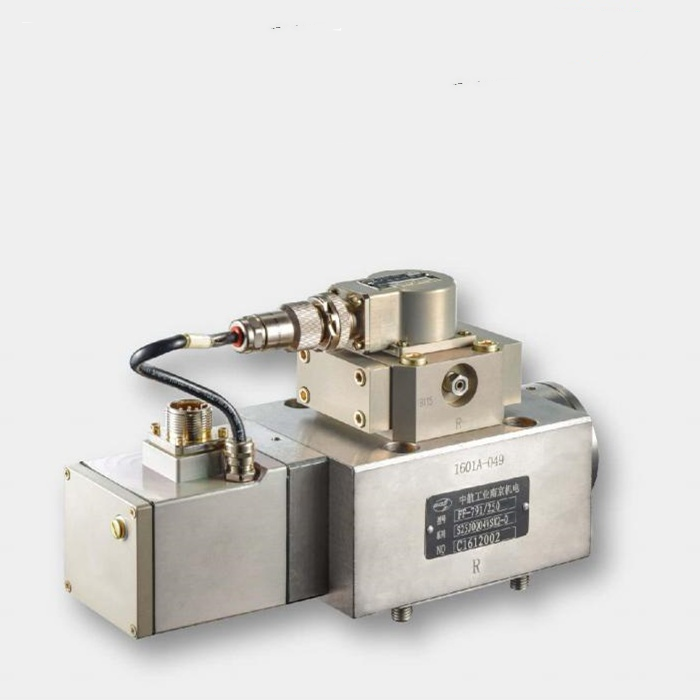

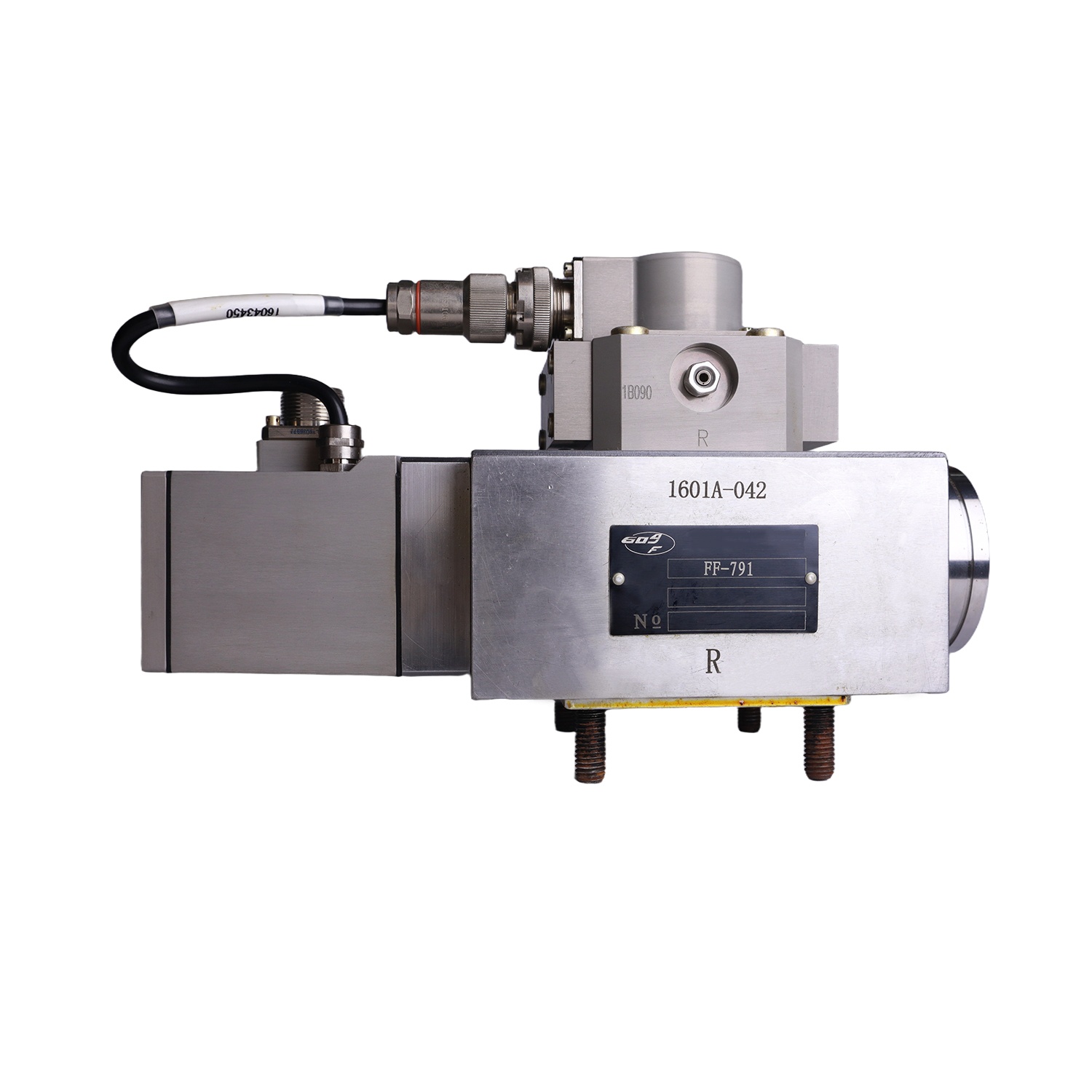

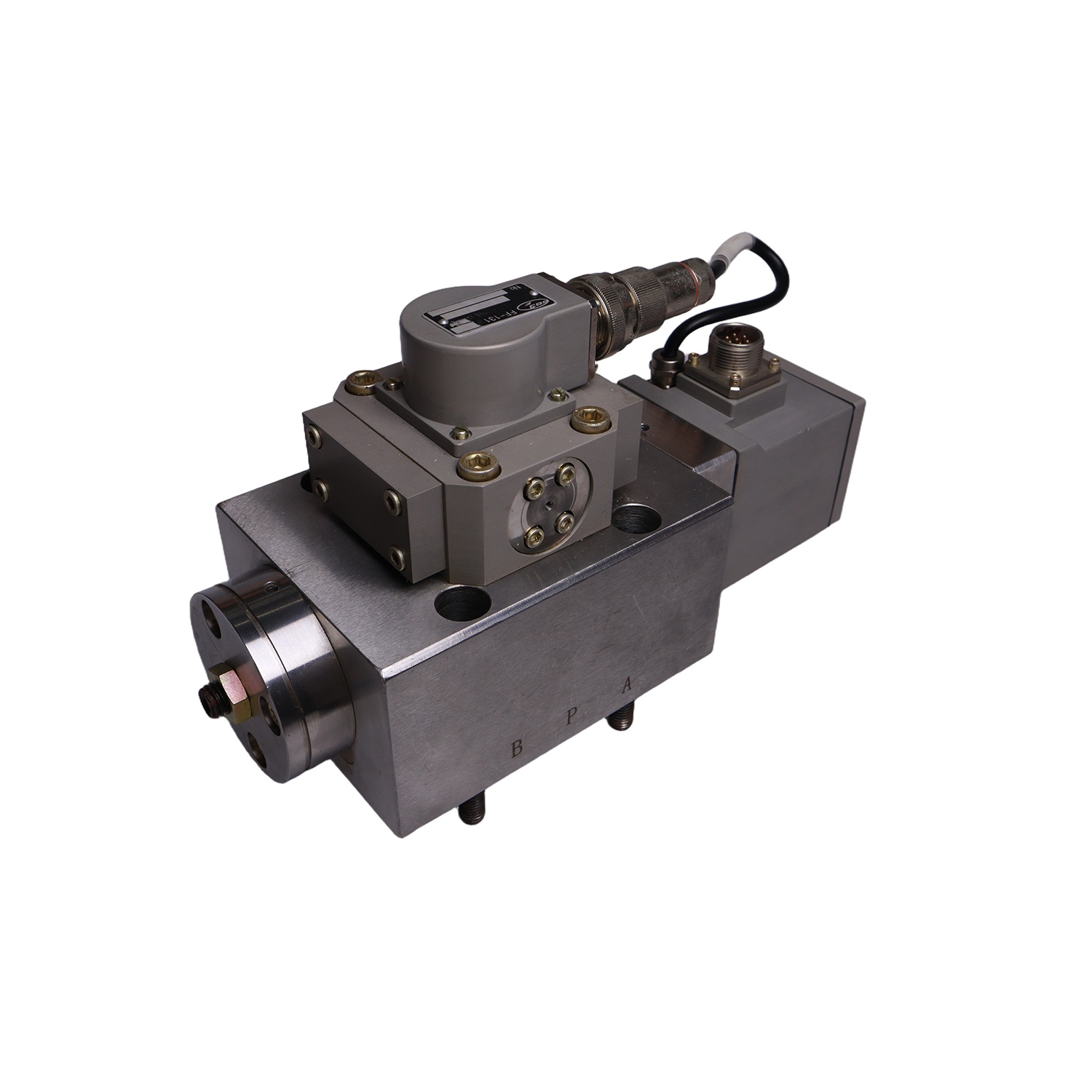

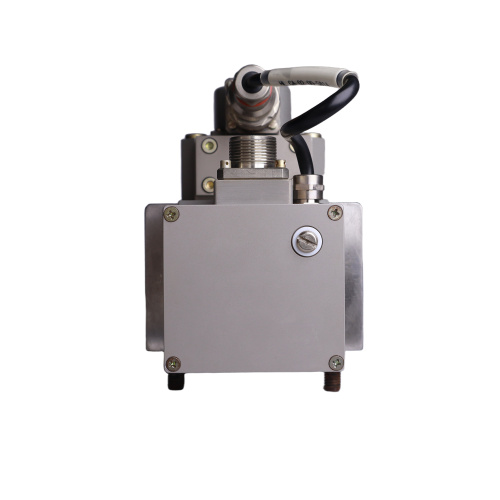

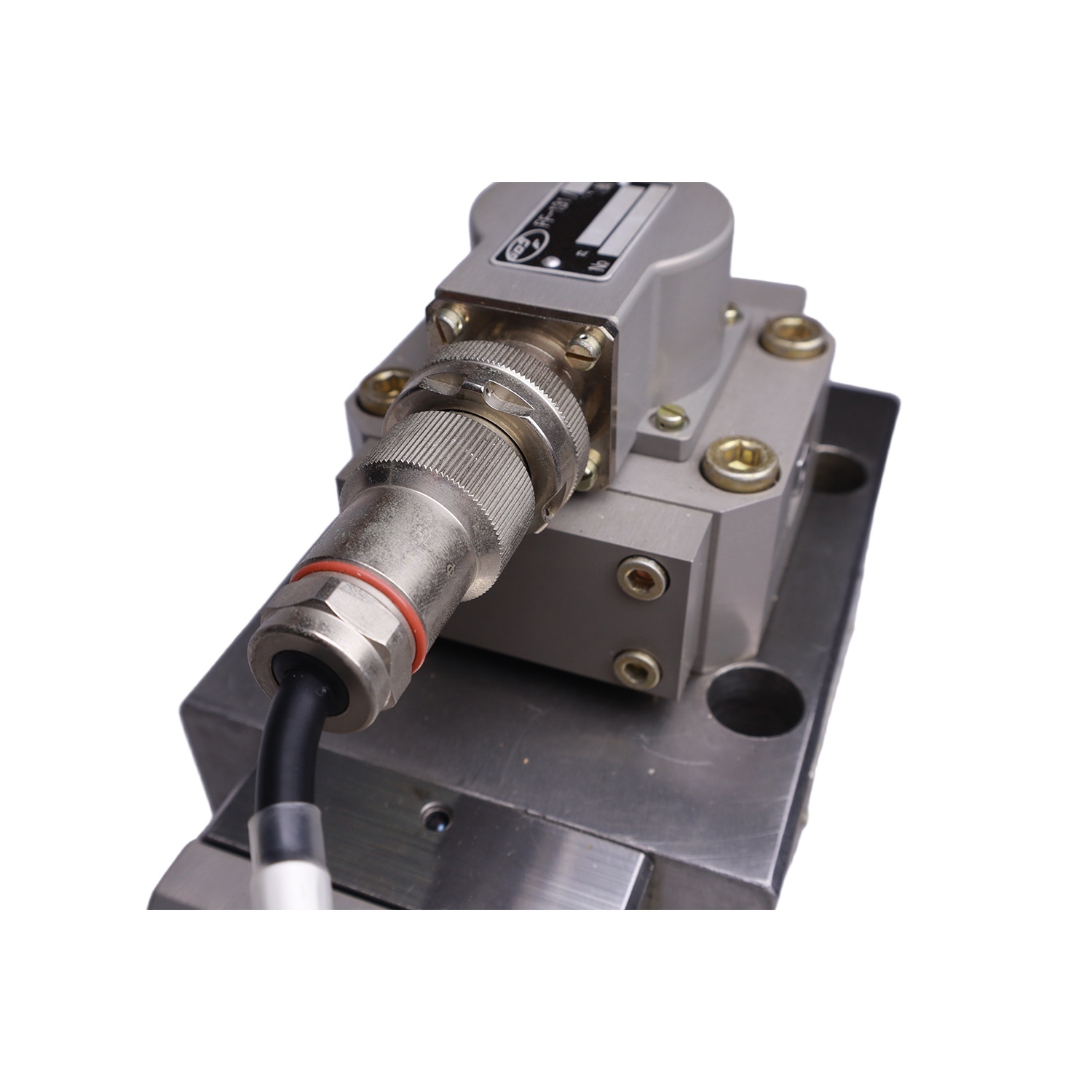

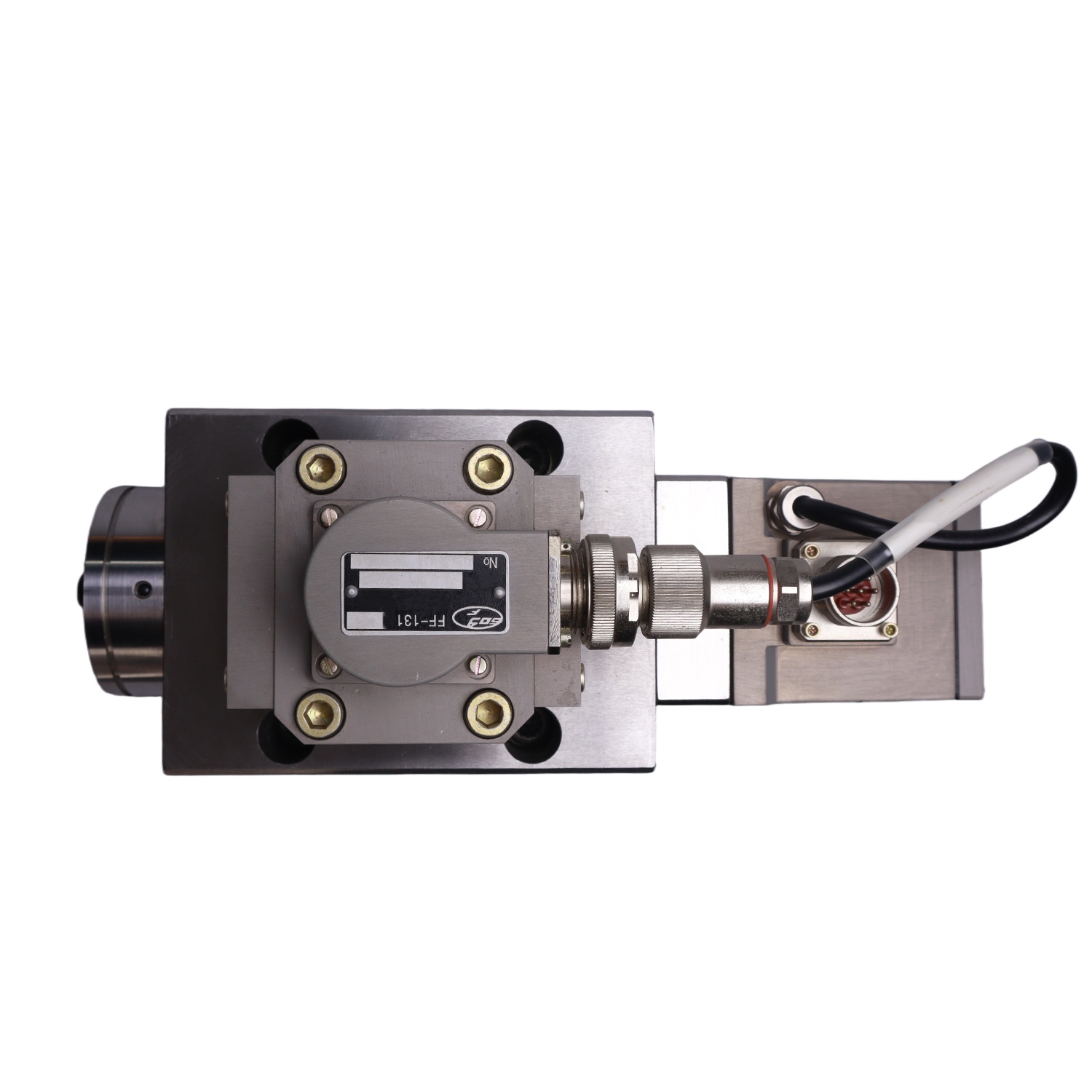

Three Stage Nozzle-flapper Electro-Hydraulic Servo Valve



Three Stage Nozzle-flapper Electro-Hydraulic Servo Valve

Name: 1
Uploaded: 2024-11-27T09:13:20+08:00
Description: The FF-791 series electro-hydraulic servo valve is an electric feedback three-stage nozzle baffle high flow servo

$1850-2550 /Set/Sets

Material	Fabric
Contact Now

Payment Type: T/T
Incoterm: FOB,CFR,CIF,EXW,FAS,FCA
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: Shanghai

Description

Product Attributes

Model No.: FF-791

Certification: Ul

Support Customization: Oem

Flow Medium: Oil

Packaging & Delivery

Selling Units:	Set/Sets
Package Type:	carton
Picture Example:

Supply Ability & Additional Information

Packaging: carton

Transportation: Ocean,Land,Air,Express

Supply Ability: 1000sets/month

Certificate: ISO ,CE,UL

Port: Shanghai

Payment Type: T/T

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA

01:56

Product Description

The FF-791 series electro-Hydraulic Servo Valve is an electric feedback three-stage nozzle baffle high flow Servo Valve. This type of servo valve uses a two-stage dual nozzle baffle servo valve as the pilot valve, with fast response and high dynamic performance. The LVDT valve core position sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to two-stage jet tube high flow servo valves, its dynamic response is higher. This series of three-stage servo valves features both high flow rate and high dynamic response.

Product Features:

● Large static traffic and high dynamic response

●Internal integrated controller, combined with LVDT and other components to form an electro-hydraulic servo valve

internal closed-loop control

● Good output linearity

●High resolution, small hysteresis loop

●The pilot inlet and return oil can be controlled externally

● External electrical zeroing

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
