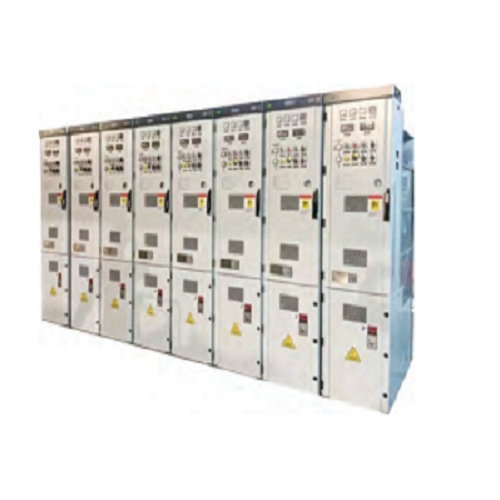

The SF6 gas-insulated metal-enclosed switchgear is designed for 10kV distribution systems with a rated frequency of 50Hz. As a cabinet-type medium-voltage gas-insulated switchgear, it extends air-insulated switchgear into the GIS technology domain through its modular design, multifunctional configuration, high reliability, and compact structure. Utilizing SF6 gas as the insulating medium, integrating GIS technology with switchgear technology to form a complete product. This product is an indoor complete unit for three-phase AC single busbar and busbar sectioning, primarily used in power plants, substations, high-rise buildings, industrial and mining enterprises, and other power distribution systems to achieve control, protection, and monitoring of power supply systems and loads.
Main Technical Parameters:
Rated Voltage: 12kV
Rated Current: 1250A, 2500A
Rated Short-Circuit Breaking Current: 25kA, 31.5kA, 40kA
Circuit Breaker Mechanical Life: 30,000 operations
Disconnector Mechanical Life: 3,000 operations
Product Features:
● Maintenance-free: High enclosure protection rating (IP67);
● Compact size: Miniaturized design saves floor space;
● Safe and eco-friendly: Meets “five-prevention” functions, equipped with pressure relief device, strong insulation performance, extremely low annual gas leakage rate (≤0.01%);
● Easy operation: Operating mechanism features position indicator and mechanical interlocking device; remote control and operation achievable by adding electric operating device;
● Scalable: Flexible expansion or closure via bus connectors and end caps;
● Long mechanical life: 30,000 operations for circuit breakers, 3,000 for grounding switches;
● Fully insulated and sealed, resistant to condensation and contamination, suitable for high altitudes (4,000 meters);
● Comprehensive mechanical and electrical interlocks effectively prevent misoperation;
● Special insulation structure optimizes surrounding electric field distribution and enhances insulation performance;
● Primary circuits enclosed within a sealed gas-filled enclosure with safe-touch housing;
● Generous cable installation space with horizontally arranged cable connectors for convenient cable mounting.
