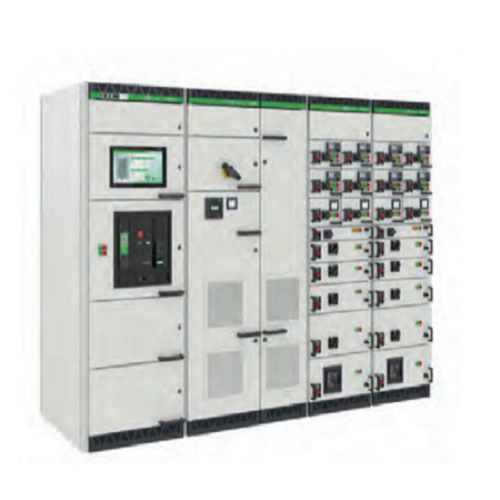

Schneider BlokSeT series switchgear

The Schneider BlokSeT series switchgear, abbreviated as B-cabinet, is specifically designed for its low-voltage power distribution products. It serves as equipment for power control, conversion, and distribution, applicable as power distribution centers, Motor control centers, capacitor compensation units, and terminal distribution systems. Suitable for diverse fields including power plants, substations, industrial and mining enterprises, and civil infrastructure.

Key Technical Parameters:

Rated Insulation Voltage: 1000V

Main Busbar Rated Current: 6300A

Rated Operating Voltage: 690V

Rated Short-Time Withstand Current: 100kA

Rated Impulse Withstand Voltage: 12kV

Compartment Type: 1B/2B/3B/4B

Overvoltage Category: IV

Protection Rating: IP20/IP31/IP42/IP54

Product Features:

● Modular design with high interchangeability of functional units;

● High-capacity, flexible busbar system meeting all high-reliability low-voltage system requirements for 6300A and below;

●Delivers high reliability and safety standards, enhancing protection for personnel and equipment;

●Standardized component configuration reduces delivery and installation time;

●Unique non-standard vertical busbar design;

●Multiple functional unit configurations: fixed and withdrawable;

●Flexible combinations and convenient expansion options.
