Extruded PET Foam Production Line
Our PET production line has been widely used in more than ten countries and regions in the world. The machine quality is high, the output is big, the stability is strong, deeply user favor.
Feininger PET sheet extrusion line are designed to ensure high performance, low energy consumption, durability and versatility for companies in the plastics industry. Each PET sheet extrusion line is modular and every detail can be customized, thanks to Feininger's accessories and machines: the best technology to ensure high productivity and long-term stable performance.
With the continuous improvement of performance level, Feininger's experience and continuous research on technology and solutions, plastic material extruders improve the productivity of the production line, reducing costs and energy consumption.
The main ingredient of PET foamed board is compulsory Polyethylene terephthalate, commonly known as polyester resin.The application of advanced foaming technology, carbon dioxide foaming. Traditional foam used in the production of fluoride as foaming agent, will have an impact on the environment and human health, ning, PET sheet extrusion line using composite foaming agent "CO2" replaces "fluorine series" foaming agent, greatly reduce the production cost, and CO2 as foaming agent is more environmental protection, can achieve zero emissions of greenhouse gases.
In addition, PET foamed board can be recycled, so it has good environmental protection performance, which is very conducive to environmental protection and more conducive to sustainable development.
PET foam board is an emerging application with great potential. It has good shear resistance, thermal insulation performance, good heat resistance, mechanical strength and other advantages, as well as environmental protection performance. Therefore, it is often used in the field of building thermal insulation materials, sandwich structure material core materials, sports equipment, fan blades, ships, aerospace and other fields.As a thermoplastic engineering material, PET has good mechanical properties, electrical insulation, chemical and creep resistance, fatigue and friction resistance, etc. It is widely used in daily consumption, transportation, sports equipment and biomedical and other important fields.
Feininger PET Foam Core Production Line Data
| Model | Raw Materials | Additives | Foam Agent | Output | Density | PET Foam Board Width | PET Foam Board Thickness |
| FS95T/250C | PET
(Bottle grade polyester chips) | chain extender,
nucleating agent,... | CO2,Cyclopentane | 400kg/hr - 650kg/hr | 60kg/m3 -120kg/m3 | 1000-1250mm | 5-60mm |

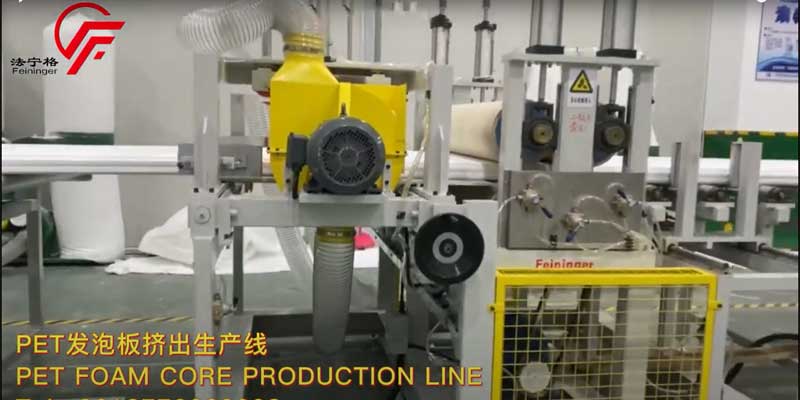

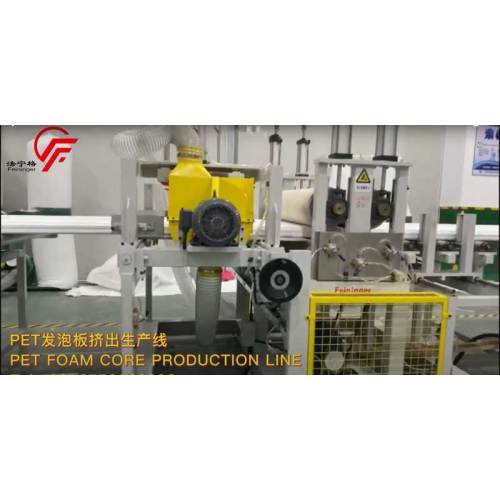

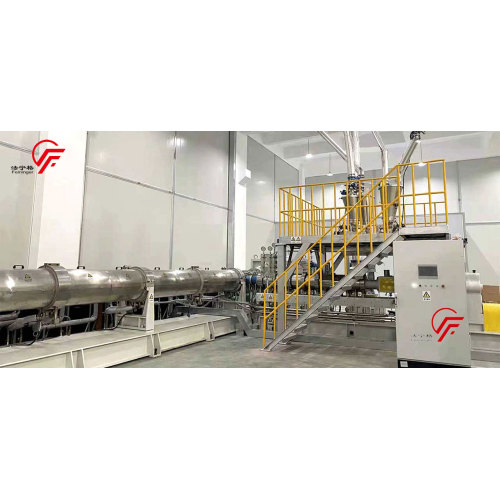

PET Foam Core Machine Composition
| 1 | Automatic Loading system with 5 feeding units |
| 2 | Primary Extruder:(twin screws） |
| 3 | Blowing Agent Injection System |
| 4 | Hydraulic Screen Exchanger with Hydraulic pressure station |
| 5 | Secondary Extruder:(single screw） |
| 6 | Static Mixer |
| 7 | DIE UNITS |
| 8 | Haul-off Unit |
| 9 | Cooling Racks |
| 10 | Second haul-off |
| 11 | Online planing machine(optional) |
| 12 | Widthwise Cross Cutting System |
| 13 | Driving Rollers |
| 14 | Revolving Cooling Unit |
| 15 | CENTRAL CONTROL STATION |
Factory Requirements
1、Power Supply: 800KVA, 3 phases, 380V, 50HZ
2、Normal running power: 300KW—400KW
3、Compressed Gas: 7bar, ≧6m3/min
4、Cooling Water: 4bar, 80m3/hr，15℃ (recommend to use industrial chiller)
5、Floor space：Min. L*W*H, 120M*25M*10M (this is the basic requirement)
6、Foundation: firm base ≥15cm reinforced cement (recommended)
After receiving the down payment, Feininger will provide the loads and forces for the foundation requirement for the extruders, revolving cooling unit and central dust collection system.
8、Labor required: 1-3 skilled workers /shift （3 shifts/day recommended ）
9、Ambient condition: Forced draught, vented, laminated , ambient temperature should be above 0 ℃, Bottom of workshop need ventilation, Ventilation Device must be installed on the Die port and Screen Changer by Customer.
10、Fire-fighting Grade: Plant design should reach safety requirements for that of Electronic products, Fire Extinguishing is requested around the production line. Check the details refer to the annex file.
Applications of PET Sheet Extrusion Line
Wind power
Rail transportation
Aviation and Aerospace
Energy saving building
Top 3 Factors Affecting PET Sheet Quality
Superior PET sheet production line
High-quality raw materials
Extensive production experience with the ability to identify and solve problems in the production process timely
How To Choose The Right PET Sheet Extrusion Line?
PET sheet extrusion lines are customized machines. We must first know your product information, such as the following, and then will give you professional advice.
Final sheet width
Final sheet thickness
Application of the sheet product
What material you will be using, sheet, virgin or mixed material?
Required output of the machine
Sheet product structure, ABA or single layer sheet
How Much Does A PET Sheet Extrusion Line Cost?
Regarding the price of PET production lines, we can offer different variations of machine costs, the first factor that affects the price is the output, the next factor is the speed and depending on the customer's request, we will adjust the configuration for any special case. So, you can get the price of the PET sheet extruder machine directly from us by sending us a message.
