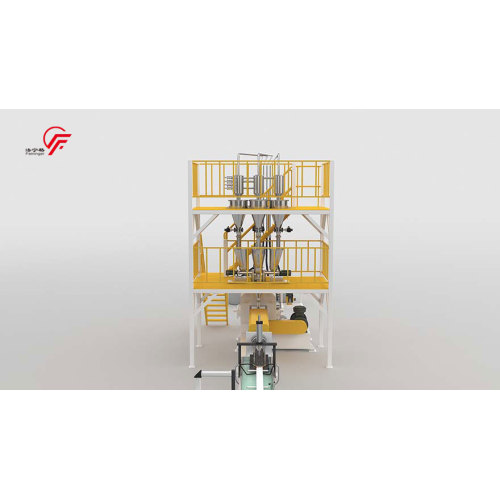

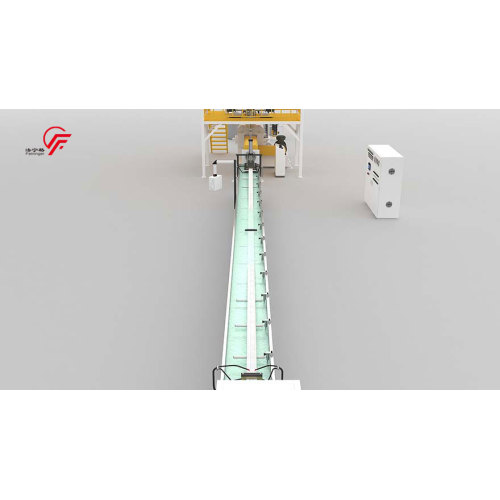

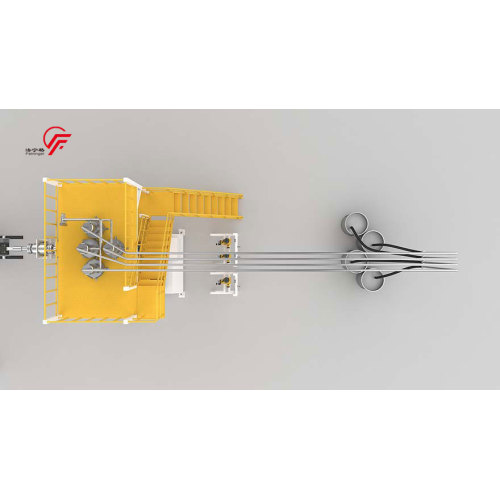

PS Skirting Line/Board Frame Making Machine Production Line
This polystyrene PS skirting board making machine for floor skirting baseboard covering panel mainly produce PS picture/photo frames, PS moulding, Mirror frame, skirting line, floor board , ceiling corner , wall panel etc for indoor and outdoor decoration.
However, Feininger PS skirting line production machines are different from traditional chemical foaming. It adopts supercritical CO2 physical foaming, which greatly reduces the product density and makes the product more environmentally friendly.
Brief Introduction of PS Skirting Board Profile Extrusion Line
PS Foamed Skirting line Production Machine Device Schematic
PS Skirting Line Frame Making Machine Production Process
1. Add the raw materials to be processed in a certain proportion and pour it into the mixer.
2. After regular mixing and homogenizing, they are transported to a quantitative feeder bin by a feeder.
3. The feeder is evenly fed to the outlet of the main extruder according to the addition amount set by the customer.
4. The raw material is conveyed to the heat exchanger by the high-temperature screw of the main engine, and the heat is homogenized.
5. Then the material is conveyed to the extrusion equipment after the die, in which carbon dioxide foaming agent is injected quantitatively.
6. The material model of high-temperature products made by mould is formed after cooling into a two-stage shaping jacket.
7. Then the material is cooled through a water channel.
8. The products are drawn to a tractor and cut with a fixed length.
9. Finally, it is formed into a qualified product and packaged and sold.
Product Description of PS Skirting Board
The Feininger XPS foaming profile extrusion line is primarily utilized for crafting profiles from GPPS foam resin. These profiles find extensive applications in creating photo frames, optical frames, door frame boards, skirting boards, and wood-like moldings, among others.
In contrast, Feininger PS skirting line production machines employ a unique approach distinct from traditional chemical foaming. They utilize supercritical CO2 physical foaming, significantly lowering product density and enhancing environmental friendliness.
Advantage of PS Skirting Board
● Environmentally Friendly and 100% Safe
Feininger PS baseboard manufacturing machines stand apart from traditional chemical foaming methods. Our baseboard extrusion line incorporates supercritical CO2 physical foaming, significantly reducing product density and enhancing environmental friendliness.
● Excellent Performance-to-Cost Ratio
Utilizing our PS skirting board extrusion machine enables the production of polystyrene cornice molding, PS photo frames, PS baseboards, and more, offering a high-performance cost ratio.
Basic Info. of PS Skirting Board
| Model | Extruder Type | Length/
Diameter | Foam output
(kg/hr) | Blowing Agent
(Gas) | Thickness of Profile
(mm) | Width of Profile
(mm) |
| SS-75T | TE75 | 22-26 | 20-80 | 100% CO2 | 5-15mm | 25-150mm |
| SS-85T | TE85 | 22-24 | 40-150 | 8-20mm | 40-220mm |
| SS-95T | TE95 | 22-24 | 60-250 | 8-20mm | 65-300mm |
Features of PS Skirting Board
1. Polystyrene skirting boards exhibit a favorable density coefficient, offering excellent impact resistance and the ability to absorb and respond to external impact forces by buffering the shape.
2. Featuring an independent bubble structure, even small areas of damage do not affect the entire wall surface.
3. These skirting boards have low water absorption on the surface, providing good impermeability and effectively preventing dampness, mold, or wall detachment issues.
4. Polystyrene baseboards remain unaffected by temperature variations; they do not melt or flow at high temperatures and do not become brittle at low temperatures.
5. High-density PS skirting boards are recyclable materials with the highest degree of plastic recycling capability.
