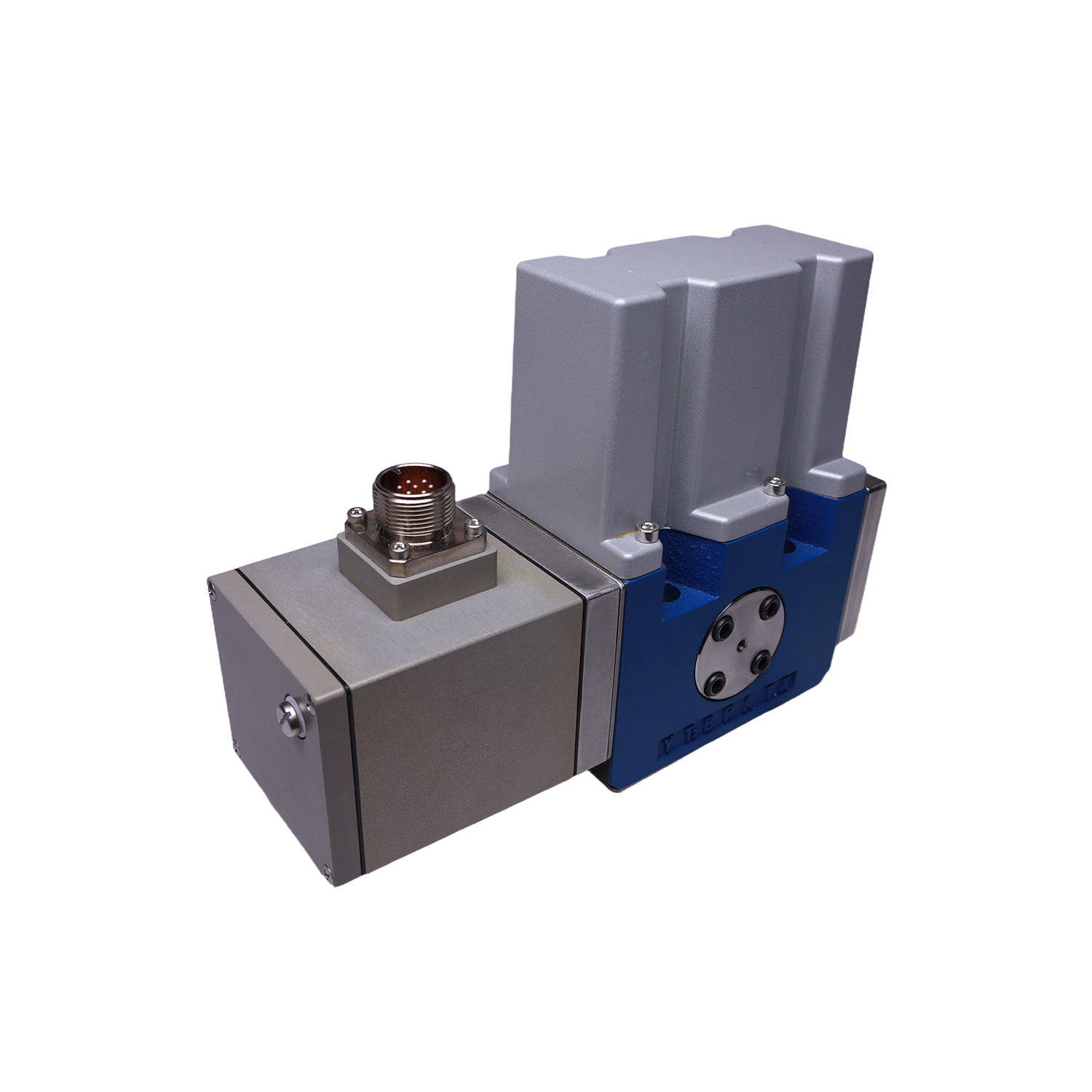

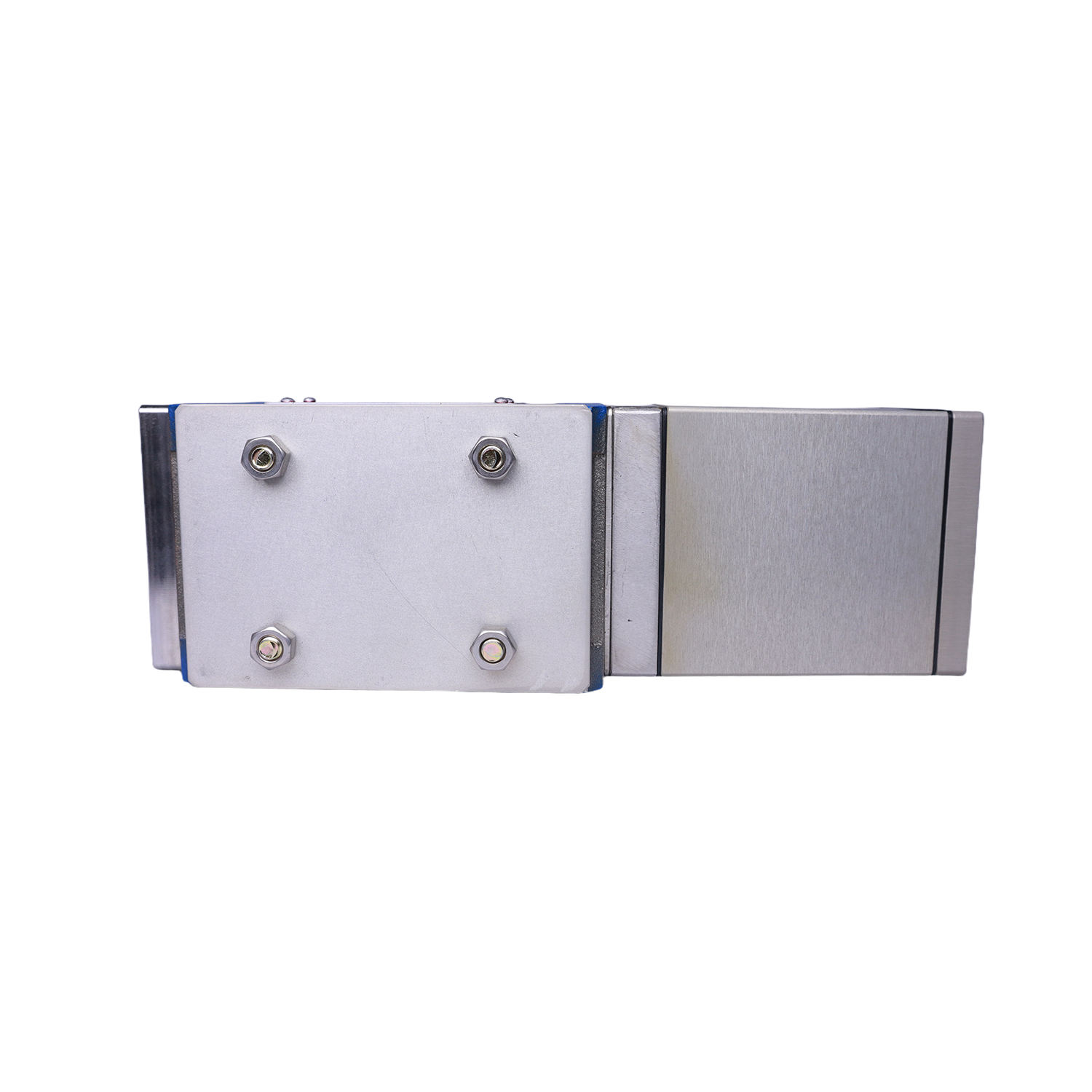

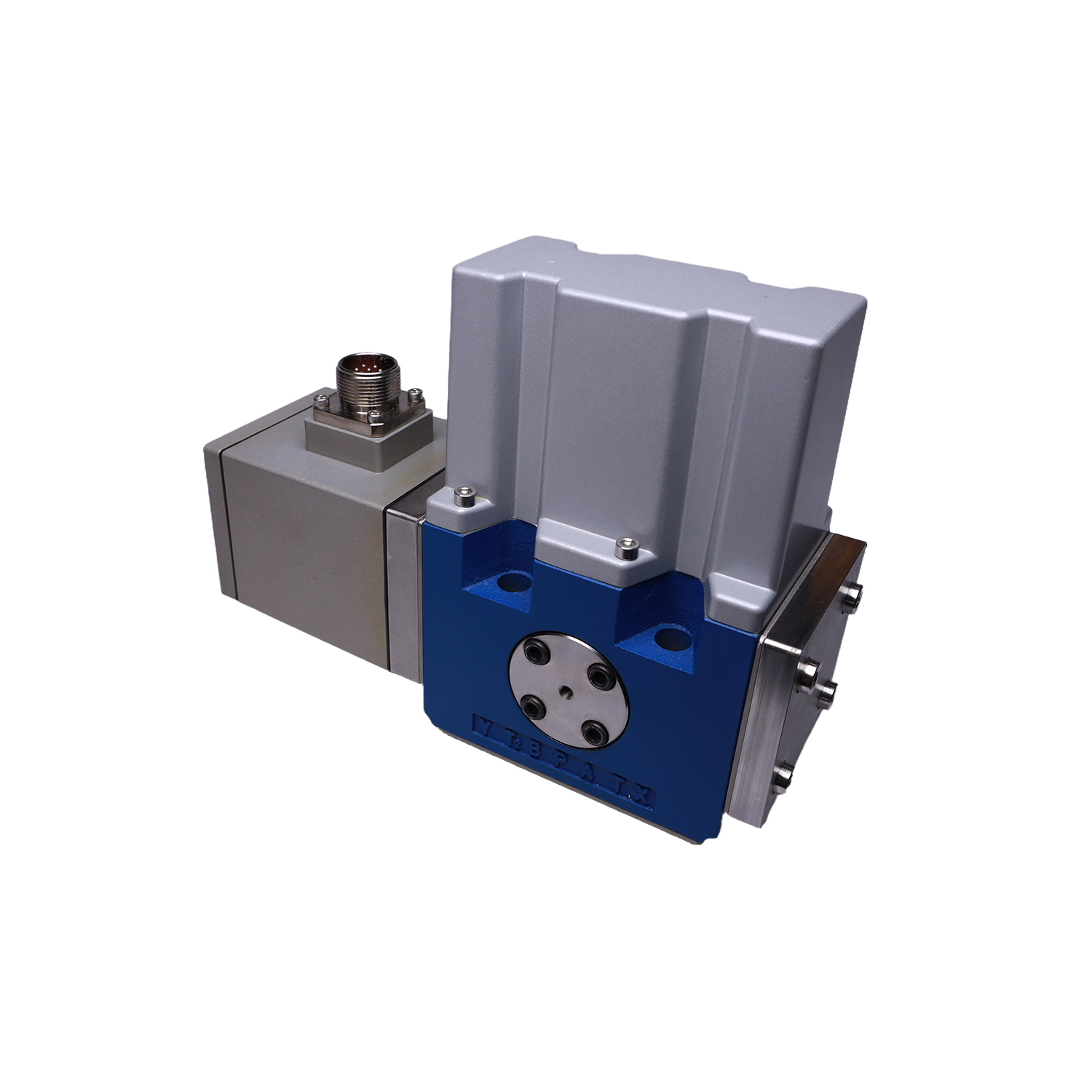

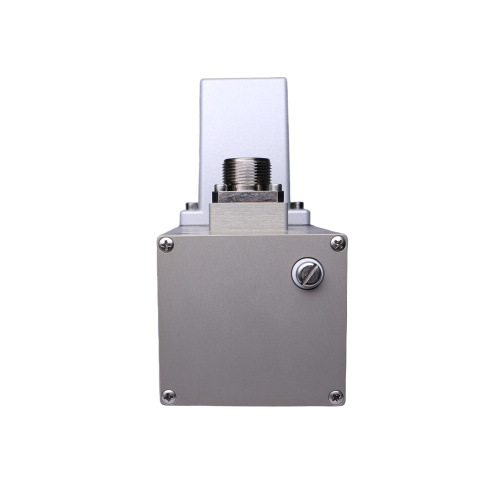

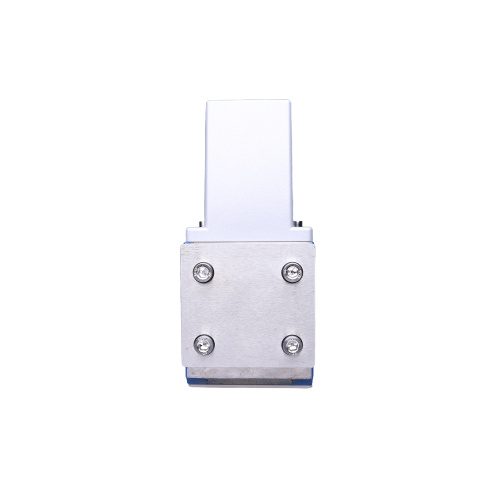

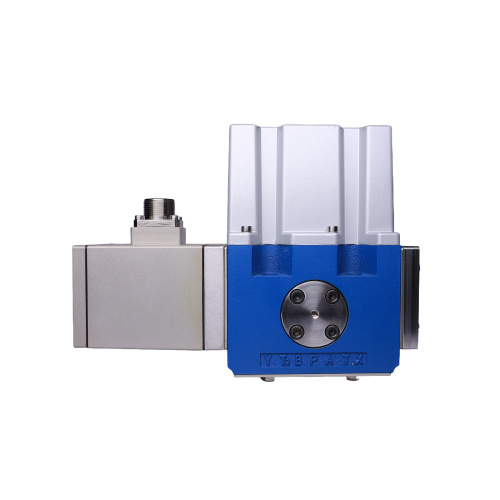

Electric Feedback Two-stage Jet Pipe Flow Servo Valve

$1250-1650 /Set/Sets

Contact Now

Payment Type: T/T,Paypal
Incoterm: EXW,CIF,CFR,FOB,FAS,FCA
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: shanghai

Description

Product Attributes

Model No.: FF-661

Certification: Reach

Support Customization: Oem

Place Of Origin: China

Power: Electric

Flow Medium: Oil

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Port: shanghai

Payment Type: T/T,Paypal

Incoterm: EXW,CIF,CFR,FOB,FAS,FCA

Product Description

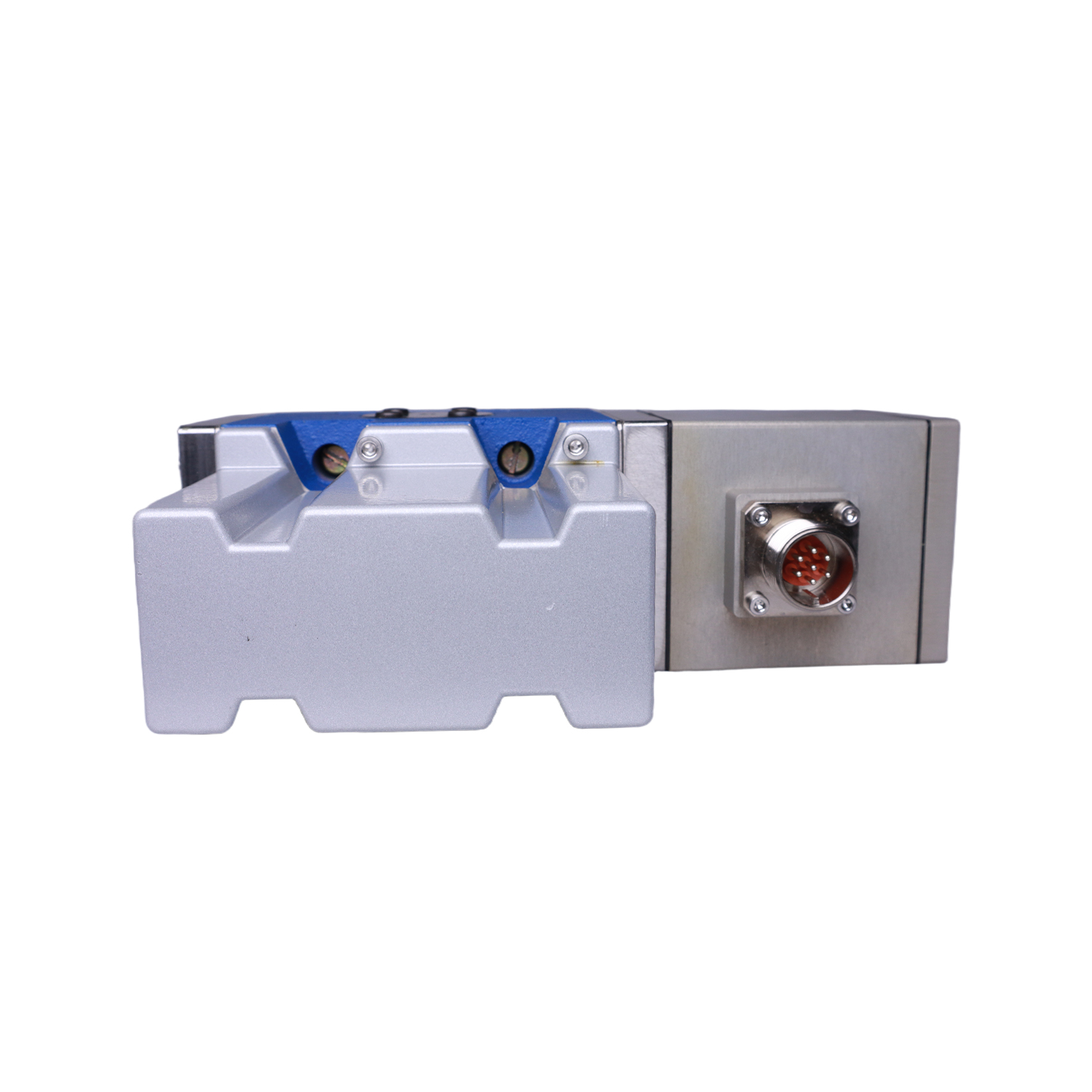

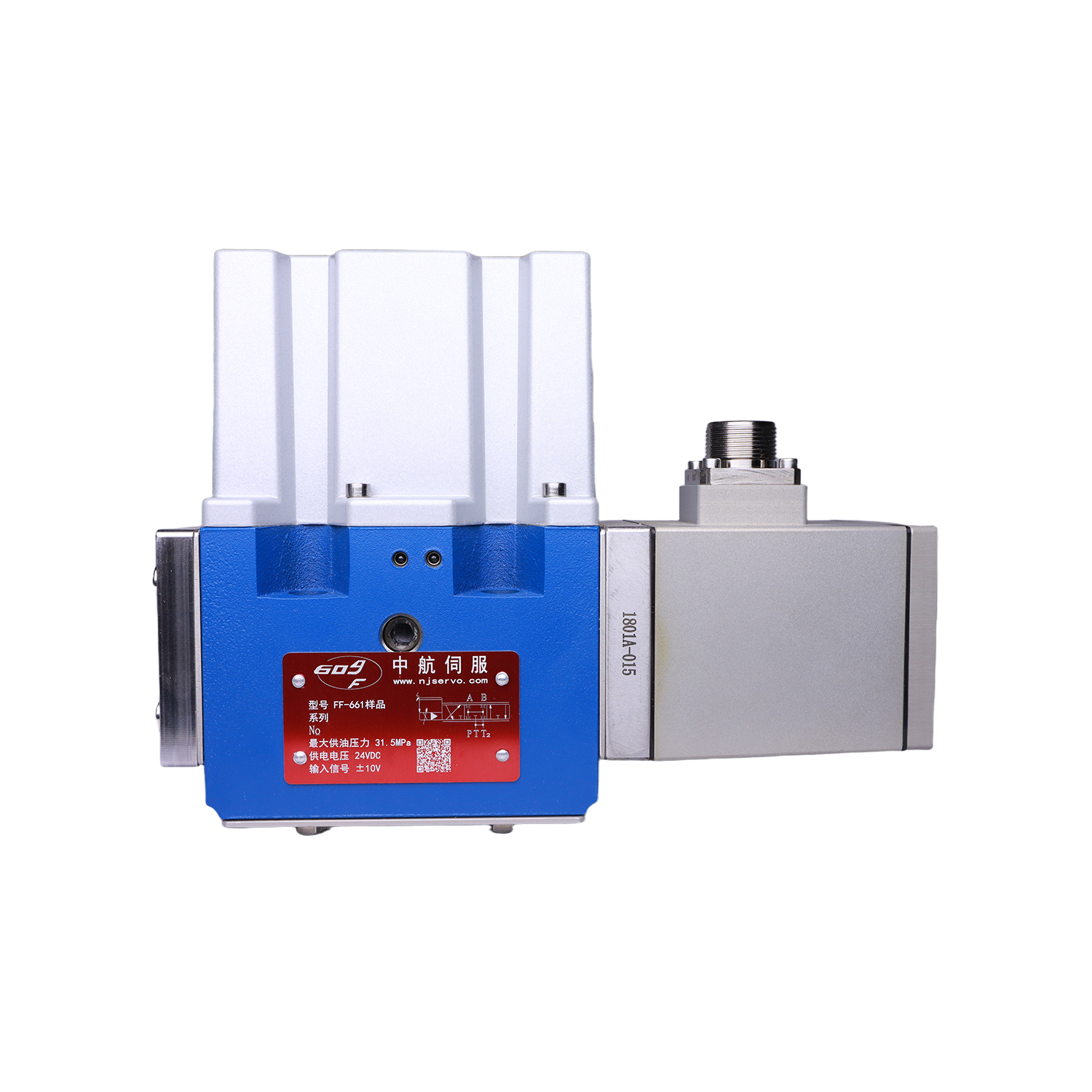

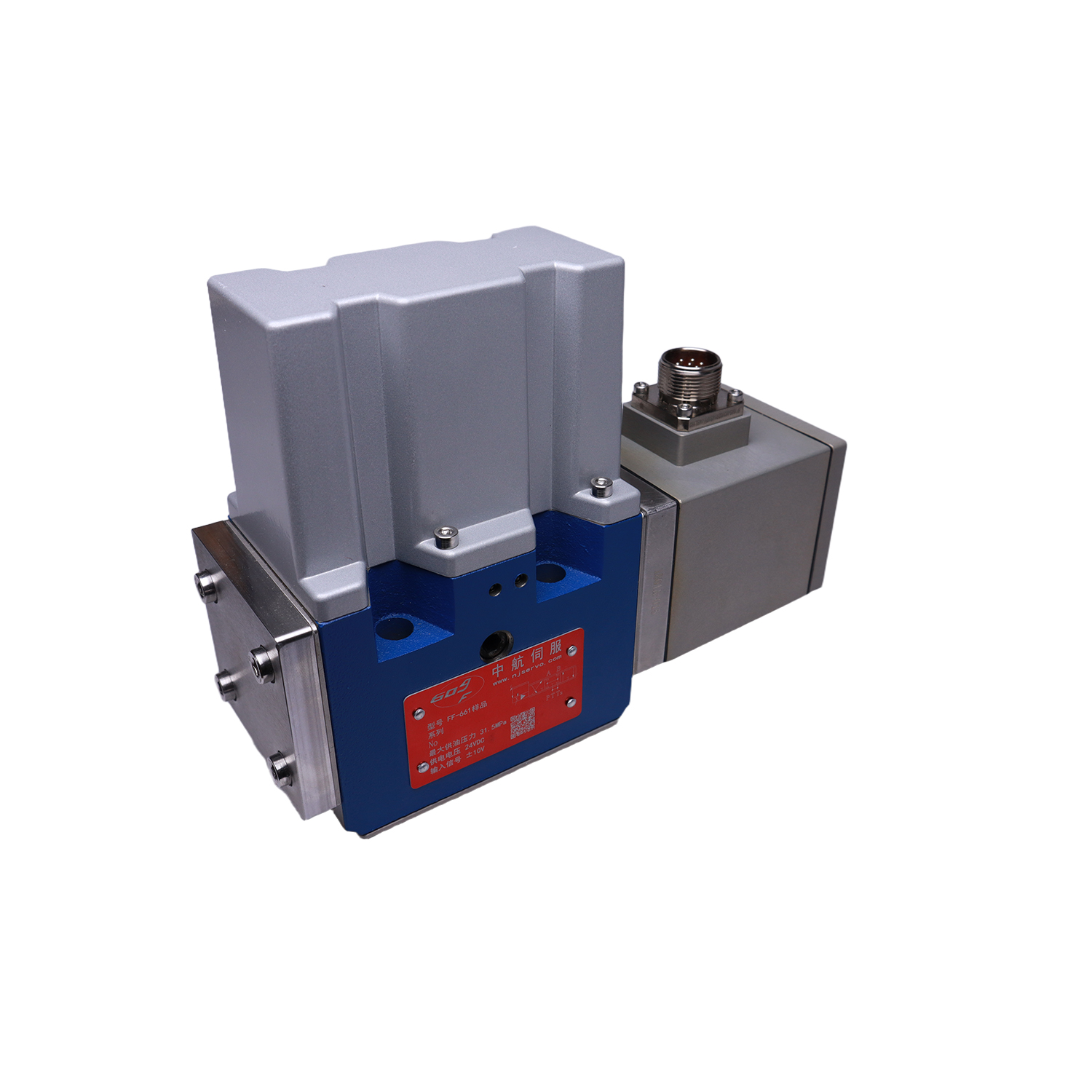

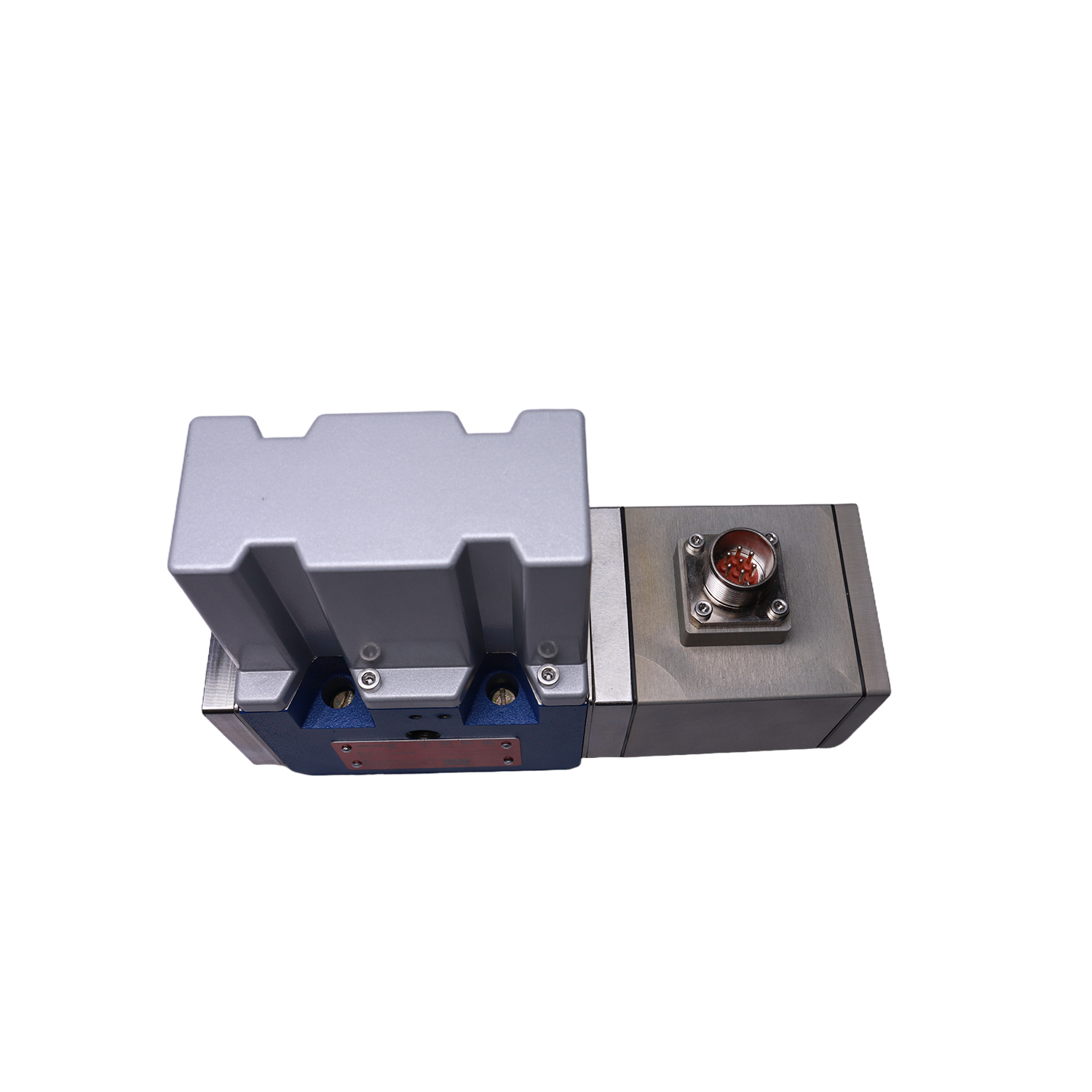

The FF-661 series electro-Hydraulic Servo Valve is an electric feedback two-stage jet tube flow Servo Valve, with a flow range of 8L/min to 80L/min under a pressure difference of 1MPa. This type of servo valve uses a high flow jet tube as the pilot stage, with strong anti pollution ability and reliable performance. The LVDT valve core position sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. The internal and external oil supply of the pilot stage is available for selection, and the control box is designed with an external electrical zero position adjustment device for more convenient use. At the same time, according to the requirements, the safety position of the valve core can be customized after power-off and pressure interruption. Widely used in metallurgy, chemical engineering, machinery manufacturing, geological exploration, power systems, and various testing equipment fields.

Product Features:

● Adopting jet tube pilot stage, with strong anti pollution ability

● Pilot stage internal and external supply and return oil are available for selection

● External electrical zeroing

● The secondary slide valve has a large driving force and reliable performance

● High dynamic response

● Good static characteristics and high resolution

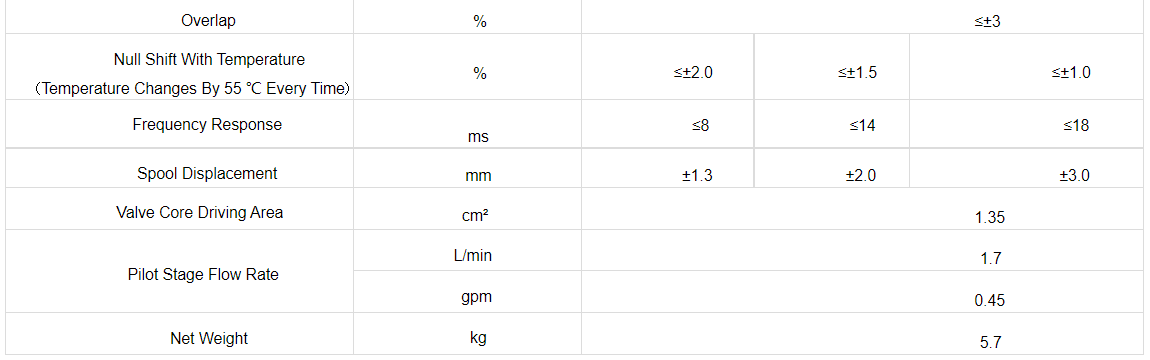

Technical Parameter：

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
