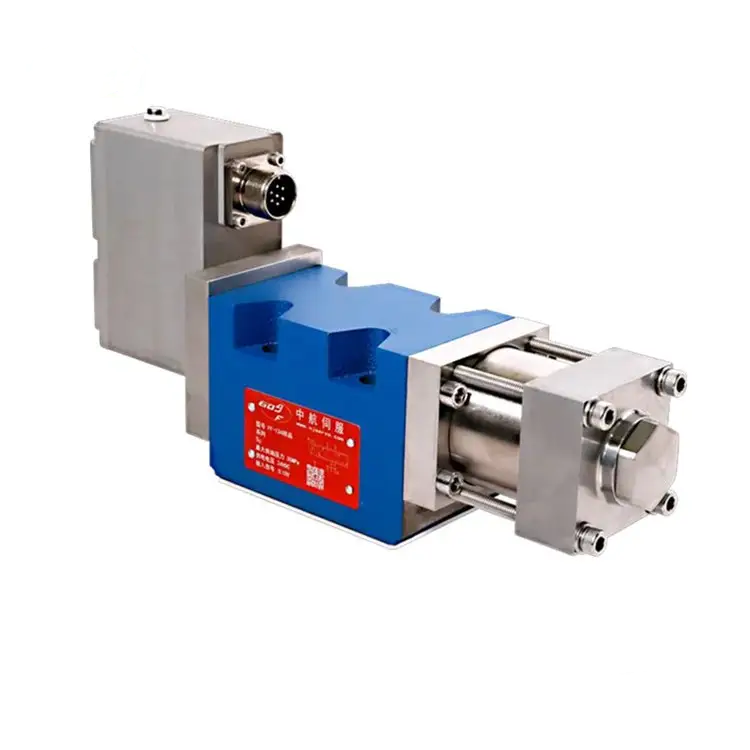

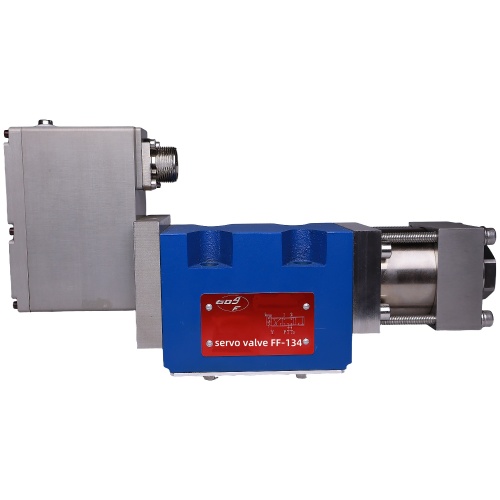

Proportional Flow Control Servo Electro-Hydraulic Valve

$1550-1955 /Set/Sets

Contact Now

Payment Type: T/T,Paypal
Incoterm: FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: shanghai

Description

Product Attributes

Model No.: FF-134

Certification: Reach

Support Customization: Oem

Place Of Origin: China

Power: Electric

Flow Medium: Oil

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Port: shanghai

Payment Type: T/T,Paypal

Incoterm: FAS,EXW,CIF,CFR,FOB

Product Description

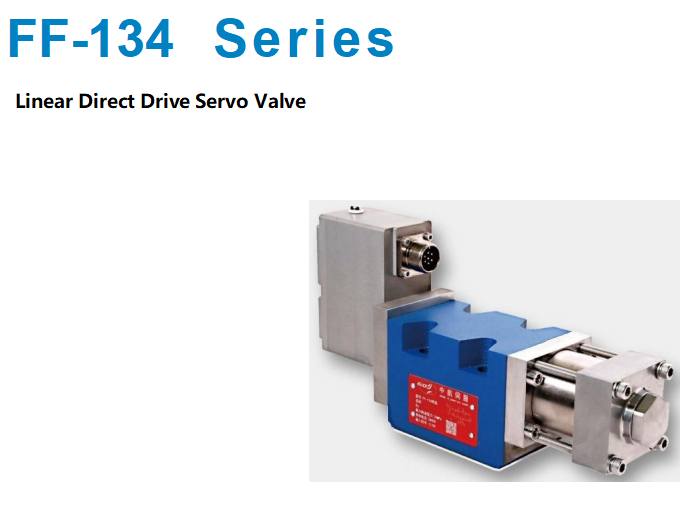

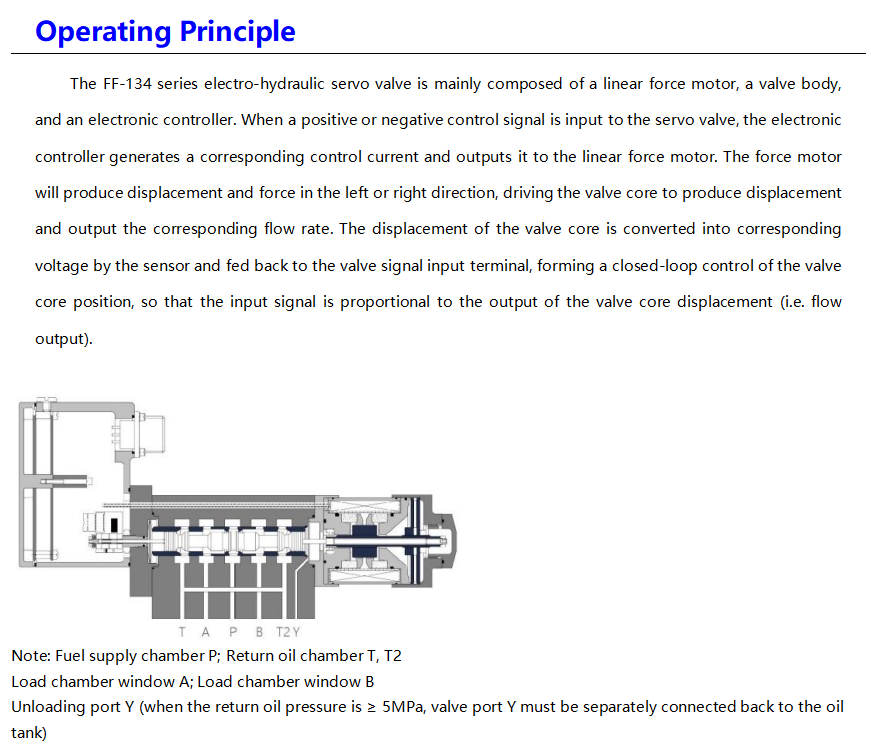

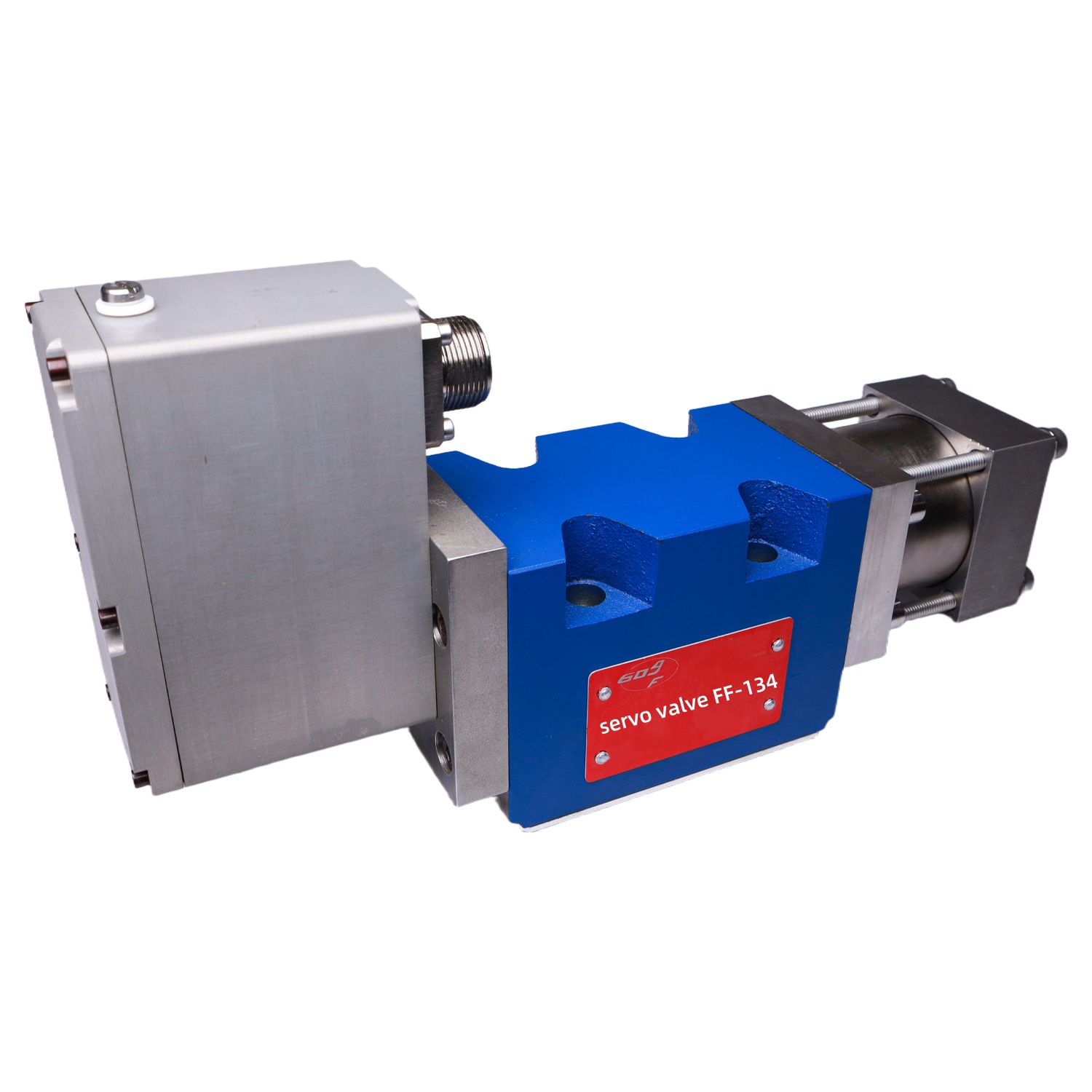

The FF-134 series electro-Hydraulic Servo Valve is a linear direct drive flow Servo Valve with flow rates of 60L/min and 100L/min under a pressure difference of 7MPa. This type of servo valve is directly driven by a linear force motor, without a pilot stage or internal throttling holes. Therefore, it has low leakage, low hydraulic power consumption, strong anti pollution ability, and minimal impact on valve dynamics due to reduced system oil supply pressure. The product uses LVDT valve core position sensors for position closed-loop control, resulting in small hysteresis, high resolution, good repeatability, and high dynamic performance. The product shell is made of stainless steel or cast iron, with high structural strength and high pressure resistance. Suitable for steel metallurgy, testing equipment, etc.

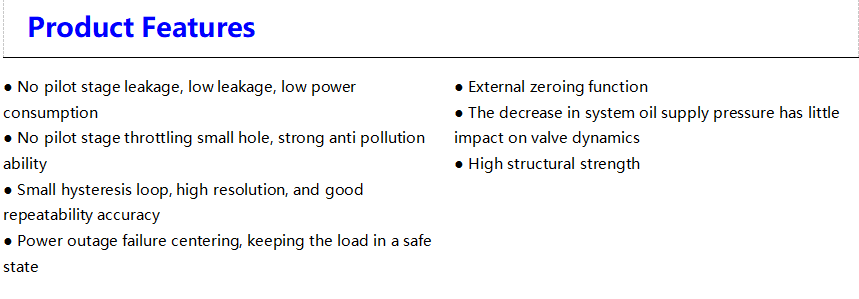

Product Features:

● No pilot stage leakage, low leakage, low power consumption

● No pilot stage throttling small hole, strong anti pollution ability

● Small hysteresis loop, high resolution, and good repeatability accuracy

● Power outage failure centering, keeping the load in a safe state

● External zeroing function

● The decrease in system oil supply pressure has little impact on valve dynamics

● High structural strength

Hot Products:

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
