Electric Feedback Nozzle Baffle High Flow Servo Valves

$1550-1985 /Set/Sets

Contact Now

Payment Type: T/T,Paypal
Incoterm: FCA,FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: shanghai

Description

Product Attributes

Model No.: FF-792

Certification: Reach

Support Customization: Oem

Power: Electric

Flow Medium: Oil

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Port: shanghai

Payment Type: T/T,Paypal

Incoterm: FCA,FAS,EXW,CIF,CFR,FOB

Product Description

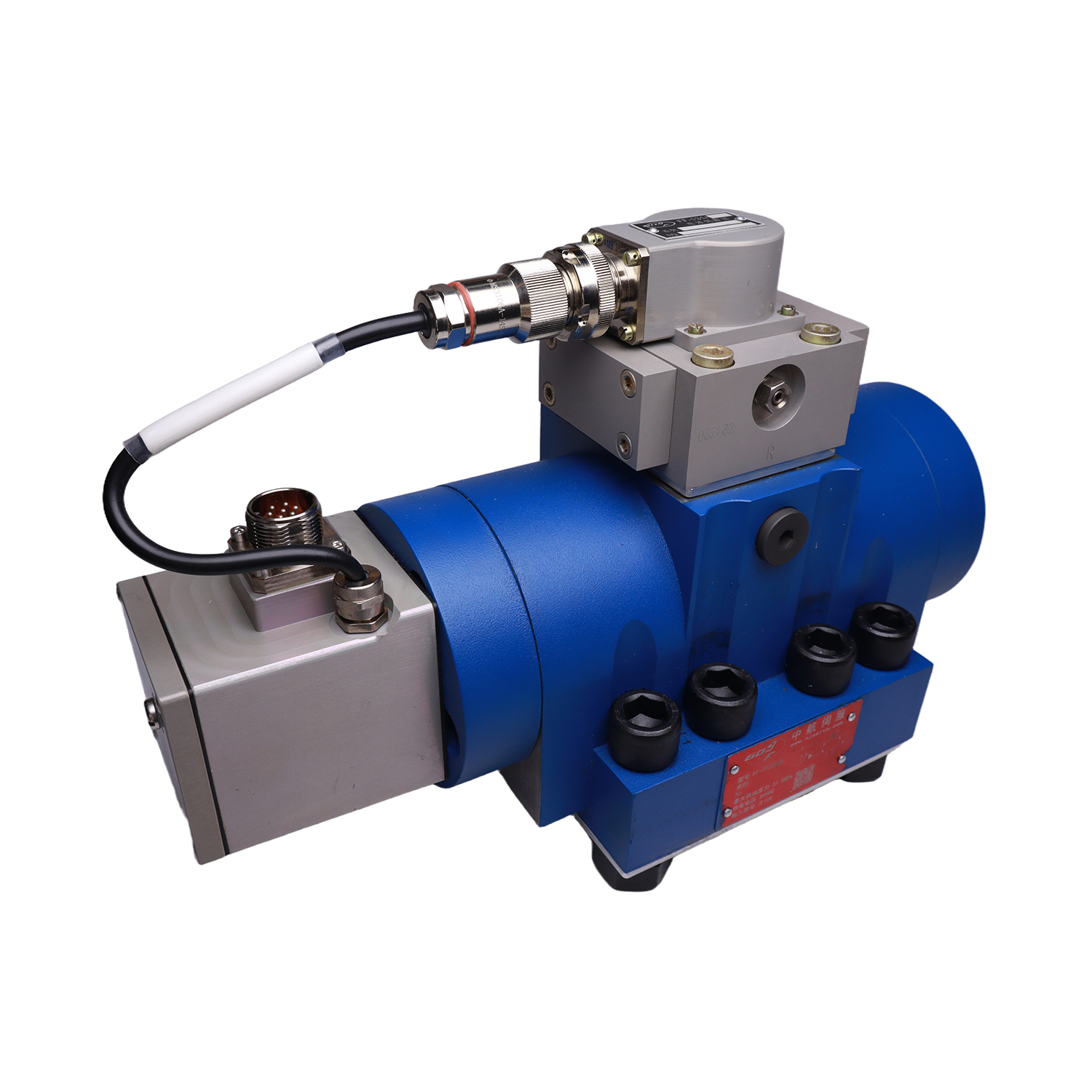

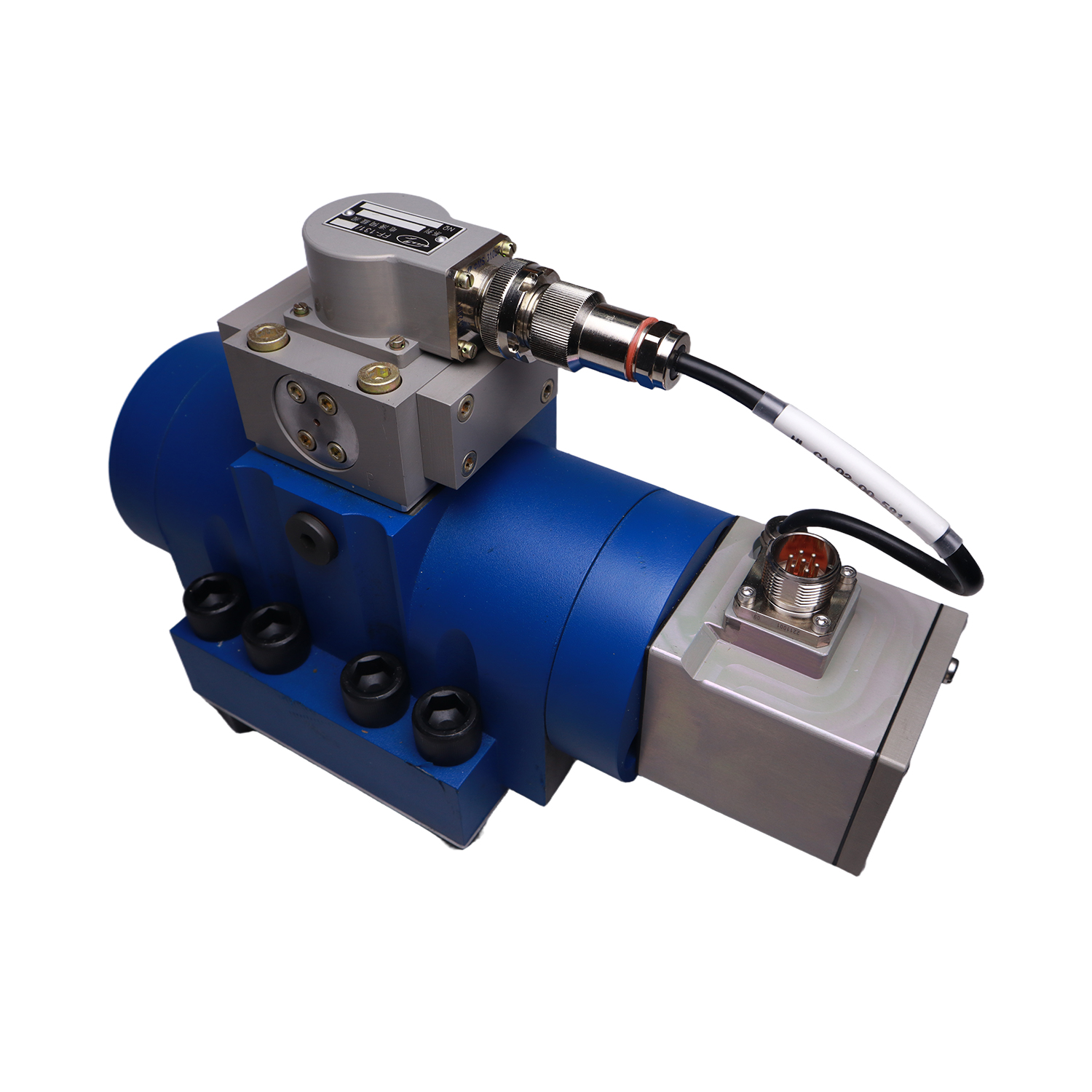

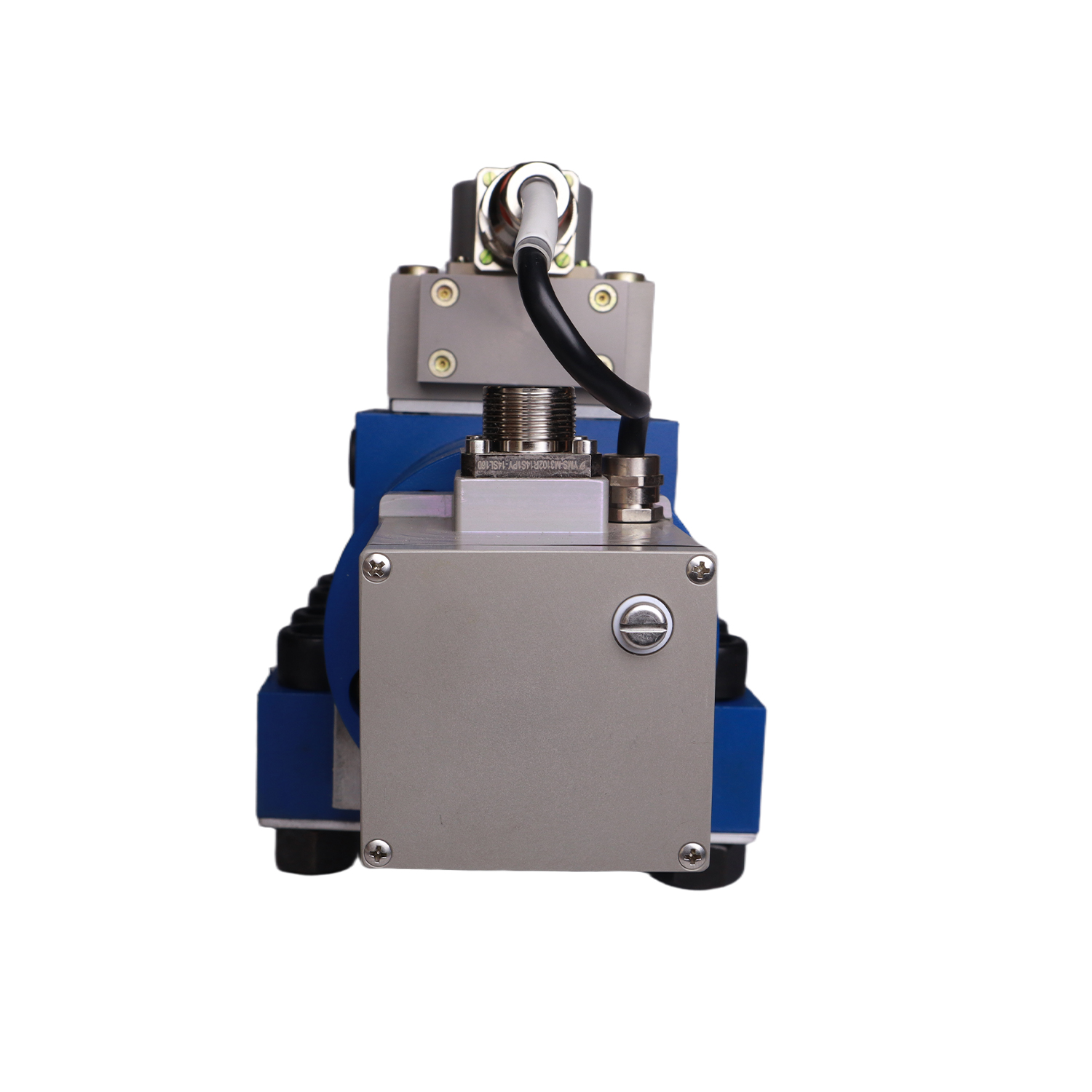

The FF-792 series electro-Hydraulic Servo Valve is an electric feedback three-stage nozzle baffle high flow Servo Valve, with a flow rate of 400L/min under a pressure difference of 7MPa 630L/min, 800L/min, and 1000L/min. This type of servo valve uses a two-stage dual nozzle baffle servo valve as the pilot valve, with fast response and high dynamic performance. The LVDT valve core position Sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to two-stage jet tube high flow servo valves, its dynamic response is higher. This series of three-stage servo valves features both high flow rate and high dynamic response.

The internal and external oil supply of the pilot stage is available for selection, and the control box is designed with an external electrical zero position adjustment device for more convenient use. At the same time, according to the requirements, the safety position of the valve core can be customized after power-off and pressure interruption. Suitable for industries such as steel metallurgy.

Product Features:

● Large static traffic and high dynamic response

●Internal integrated controller, combined with LVDT and other components to form an electro-hydraulic servo valve internal closed-loop

control

● Good output linearity

●High resolution, small hysteresis loop

●The pilot inlet and return oil can be controlled externally

● External electrical zeroing

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
