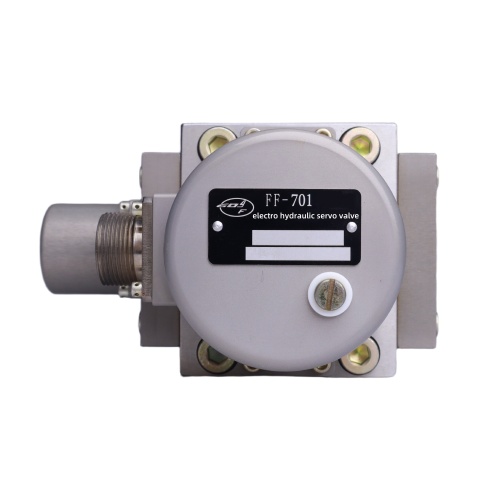

Hydraulic Servo Solenoid Valve Fast Response

$1650-2450 /Set/Sets

Contact Now

Payment Type: T/T,Paypal
Incoterm: FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Set/Sets
Transportation: Ocean,Land,Air,Express
Port: shanghai

Description

Product Attributes

Model No.: FF-701

Certification: Reach

Support Customization: Oem

Place Of Origin: China

Flow Medium: Oil

Structure: Control

Packaging & Delivery

Selling Units:	Set/Sets

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Port: shanghai

Payment Type: T/T,Paypal

Incoterm: FAS,EXW,CIF,CFR,FOB

Product Description

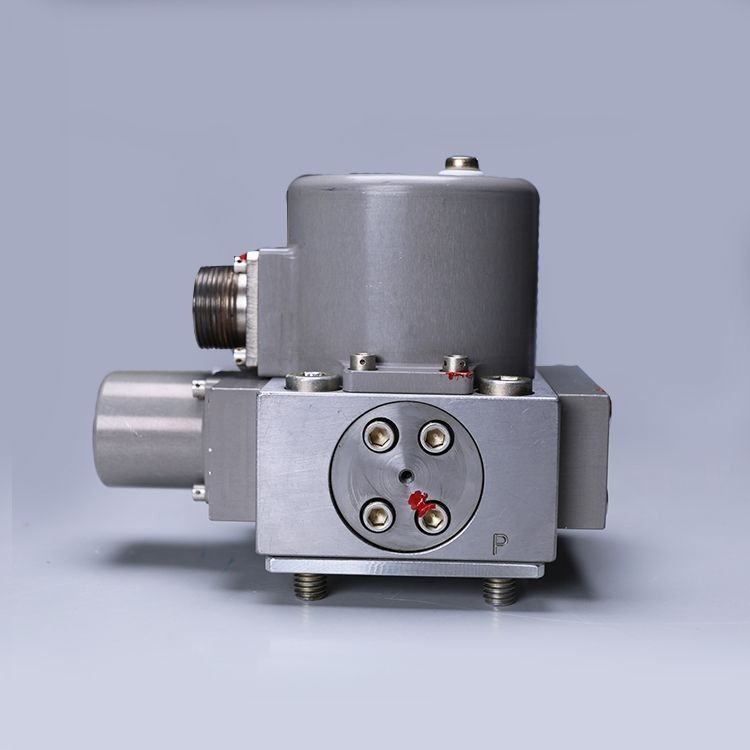

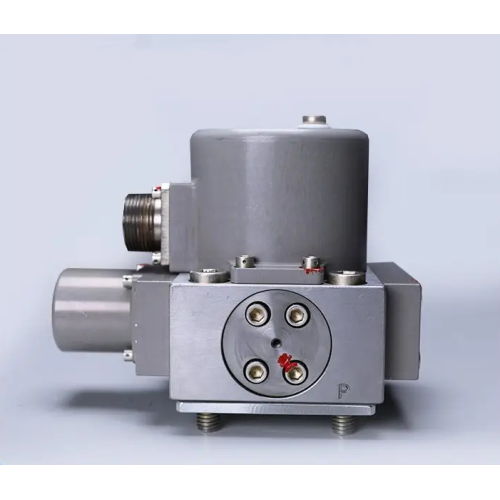

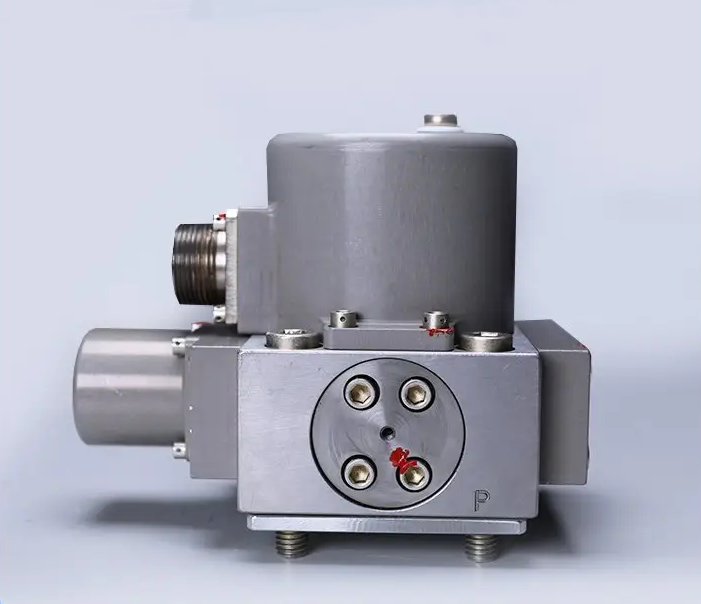

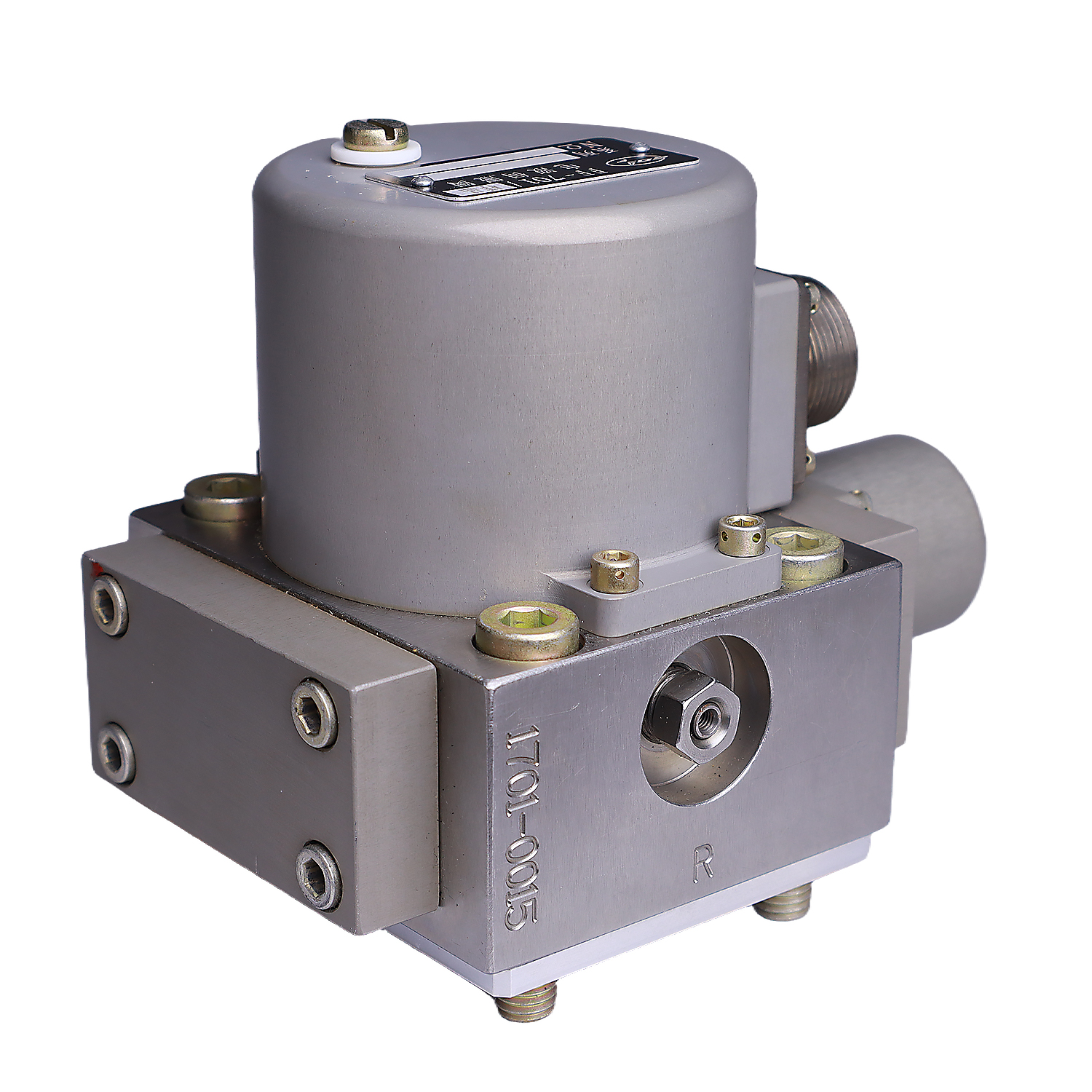

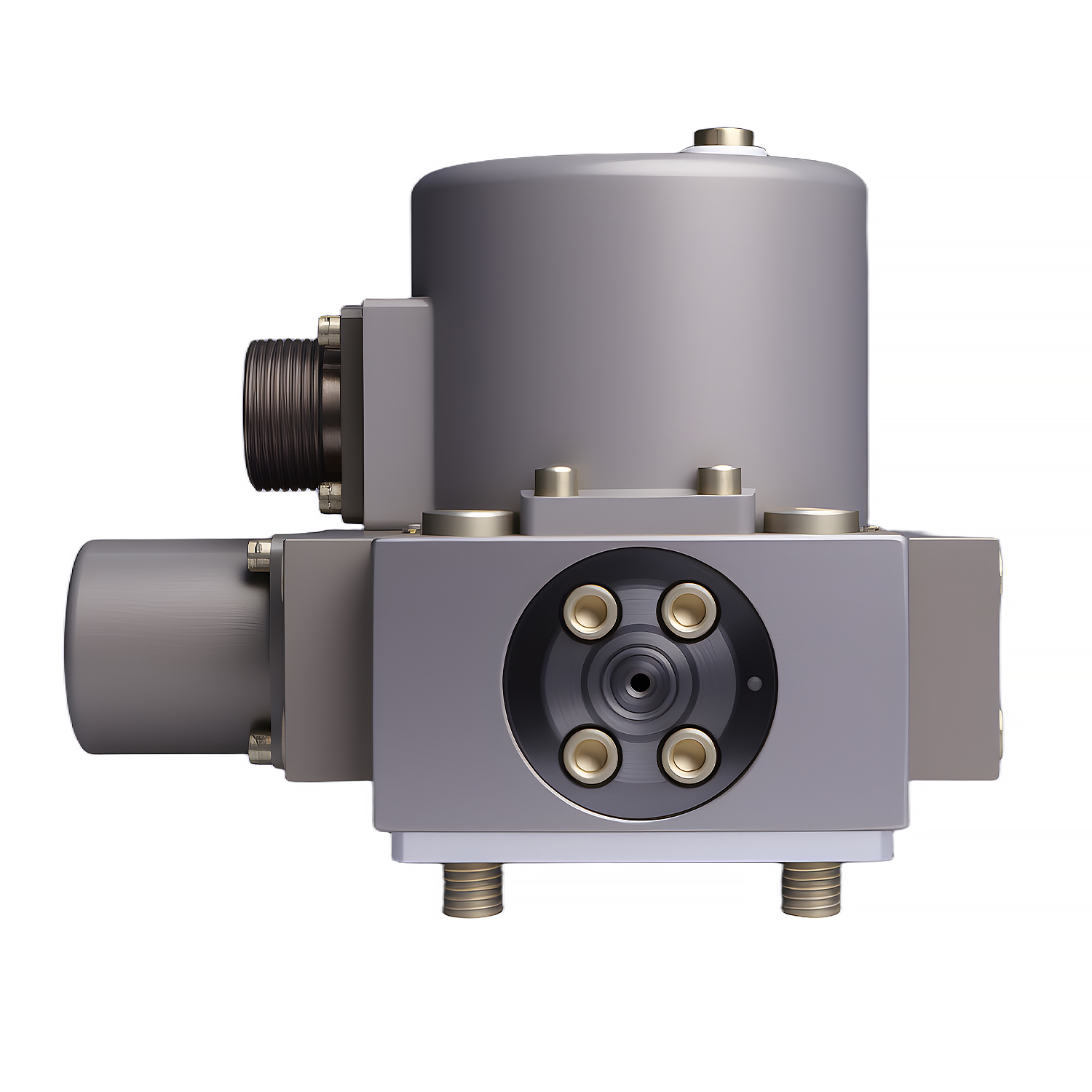

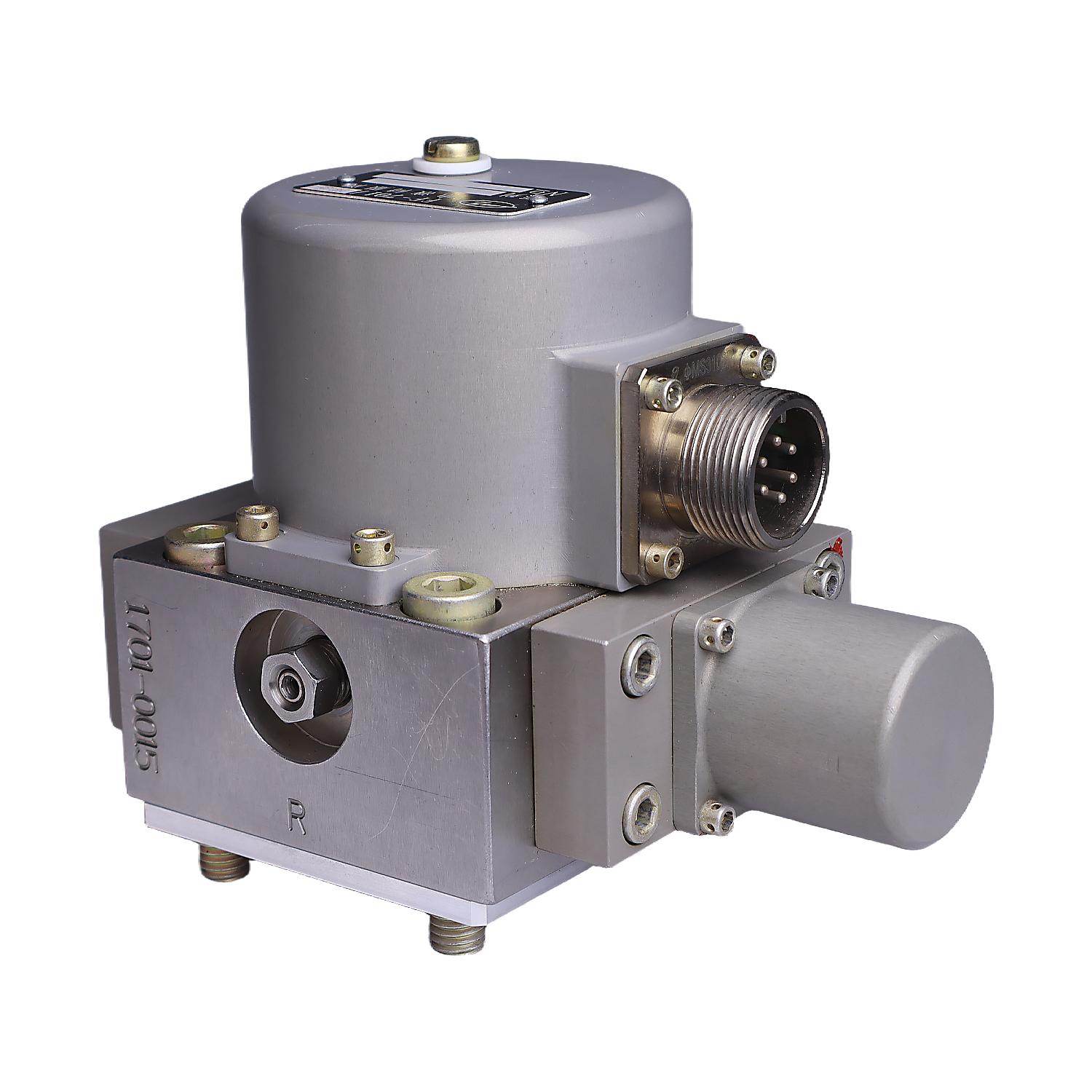

The FF-701 series electro-Hydraulic Servo Valve is a two-stage dual nozzle baffle high flow Servo Valve with electric feedback force feedback. Under a pressure difference of 21MPa, its flow range is 6.5L/min to 100L/min. The standard product of this series of servo valves adopts an aluminum alloy shell, which is lightweight. The product has an external electrical zero adjustment structure, which facilitates users to adjust according to their actual needs. The product has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption

Product Features:

● High control accuracy, fast dynamic response, and easy operation

● Compact internal structure, small volume, and light weight

● Stable working performance, high reliability, and long service life

● Small internal leakage and low power consumption

● Low hysteresis, high resolution, and high repeatability accuracy

● Good linearity, strong driving force, and small zero drift

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
