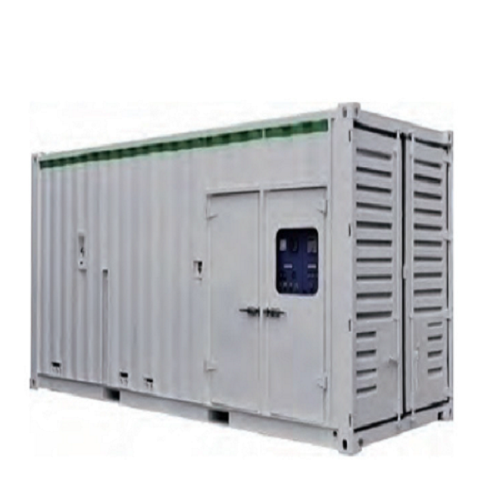

The photovoltaic power generation containerized collection station integrates 10kV and 35kV switchgear cabinets for grid-connected PV power generation systems along with monitoring and communication equipment. These components are pre-installed and commissioned within a mobile, sealed, moisture-proof, rust-resistant, and insulated double-layer enclosure. This configuration enables grid-connection control, data acquisition, and remote transmission functions for the PV power generation system. Compared to traditional civil-engineered substations, the photovoltaic power generation containerized collection station offers lower costs, smaller footprint, higher integration, simpler installation and commissioning, and an aesthetically pleasing design. It is particularly suitable for constructing large-scale grid-connected photovoltaic systems in complex environments such as deserts, tidal flats, high altitudes, and frigid climates.
Main Technical Parameters:
Rated Voltage: 12kV, 40.5kV
Rated Current: 630A–4000A
Rated Frequency: 50Hz
Protection Rating: IP65
Rated Short-Circuit Breaking Current: 25kA, 31.5kA
Dimensions: 20ft, 30ft, 40ft, 45ft
Product Features:
● Aesthetically pleasing cabinet design with high strength, rigidity, and precision assembly;
● Flexible configuration options: AIS products offer stable operation and proven technology; GIS products provide compact size and high protection rating;
● Mature five-prevention interlocking design effectively prevents field misoperation;
● Various cabinet structures are well-established with stable and reliable operation;
● High level of intelligence with integrated automated switching, facilitating remote operation and maintenance;
● This solution is typically suitable for large-scale photovoltaic grid-connected power generation systems;
● Collection station dimensions can be customized per project requirements;
● Exceptional thermal insulation and heat retention within enclosures;
● Seams sealed with long-life gaskets to ensure dustproof, moisture-proof, and anti-condensation performance;
● Multi-layer anti-corrosion technology provides robust protection, guaranteeing no corrosion for 30 years.
Note: AIS Products include:
KYN61-40.5 Series Metal-Clad Withdrawable Switchgear
EAM(KYN28)-12 Series Metal-Clad Withdrawable Switchgear
GIS Products include:
ESR-40.5 Series Gas-Insulated Metal-Enclosed Switchgear
ESR-12 Series Gas-Insulated Metal-Enclosed Switchgear
