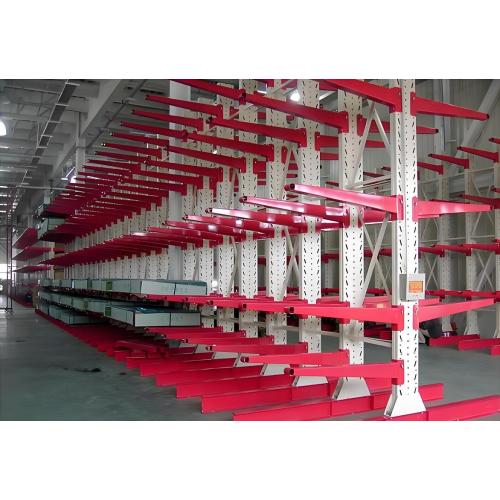

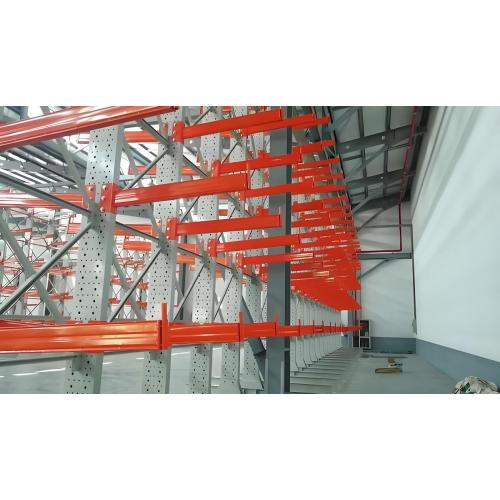

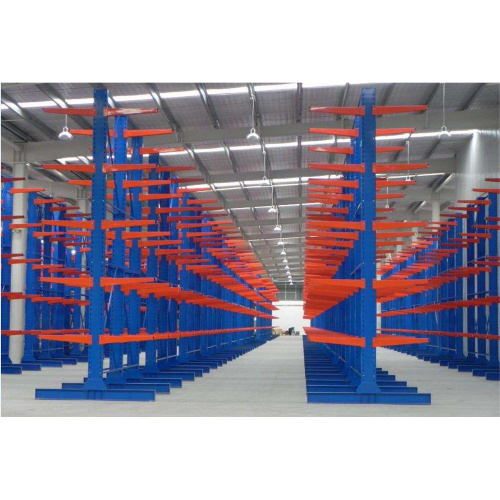

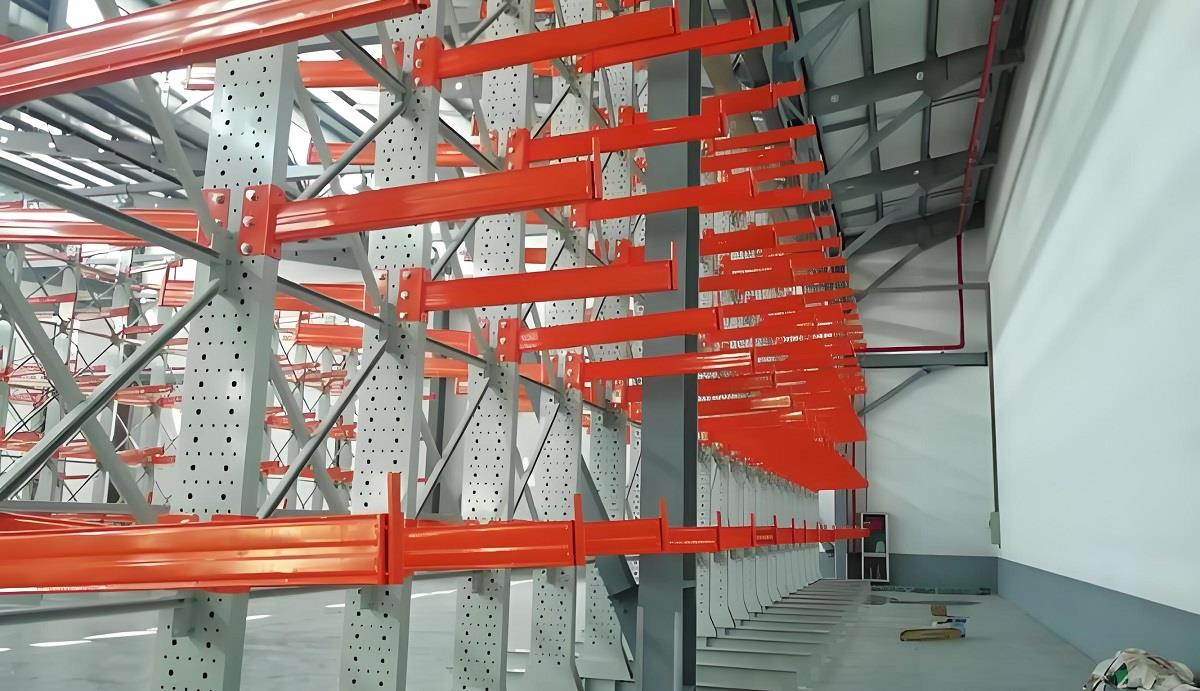

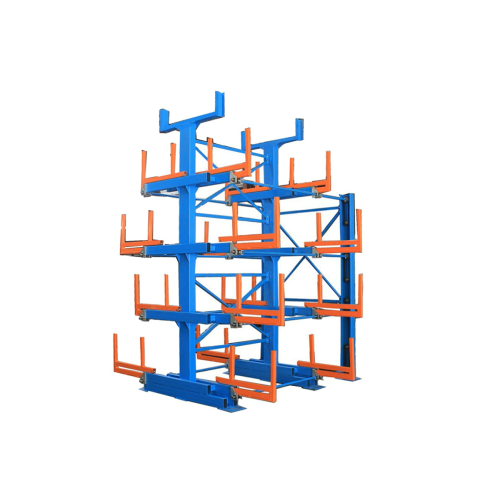

The cantilever rack is a storage equipment used for storing long materials, circular goods, and irregular items. The main body is composed of H-shaped steel or cold-rolled steel columns, and the cantilever columns are mostly made of cold-rolled hollow steel and prefabricated holes. The base is connected by welding or bolt groups. The base is equipped with a footboard fixed to the ground, and the cantilever beam is made of square tube, H-shaped steel or cold-rolled steel. It is connected to the column through connecting pins or bolts, and the height spacing can be adjusted.
Cantilever shelves are suitable for storing long materials, circular materials, boards, pipes, and irregular goods. Cantilever shelving columns are often made of H-shaped steel or cold-rolled steel. Cantilevers are made of square tubes, cold-rolled steel or H-shaped steel, and the connection between the cantilever and the column is plug-in or bolted. The connection between the base and the column is bolted, and the base is made of cold-rolled steel or H-shaped steel. Goods storage and retrieval are carried out by forklifts, cranes, or manual labor. The shelf height is usually within 2.5 meters (up to 6 meters if accessed by a forklift), the cantilever length is within 1.5 meters, and the load capacity of each arm is usually within 1000KG. This type of shelf is mostly used in the mechanical manufacturing industry and building materials supermarkets. After adding shelves, it is particularly suitable for warehouses with small space and low height. It is easy to manage, has a wide view, and has a higher utilization rate compared to ordinary shelf style shelves; According to the carrying capacity, it can be divided into three types: lightweight, medium weight, and heavy weight.
