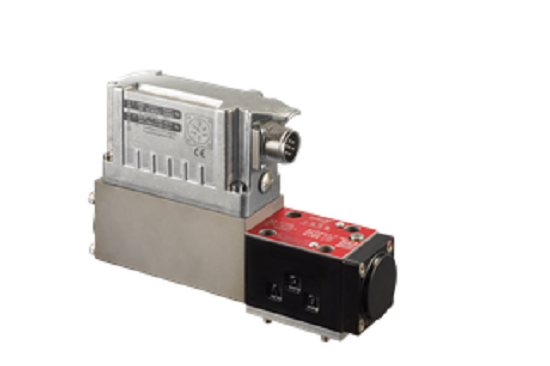

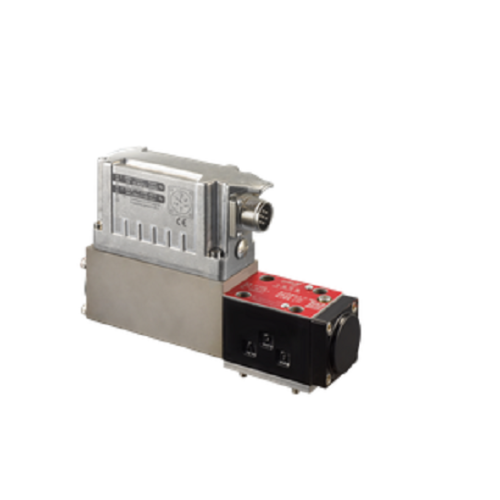

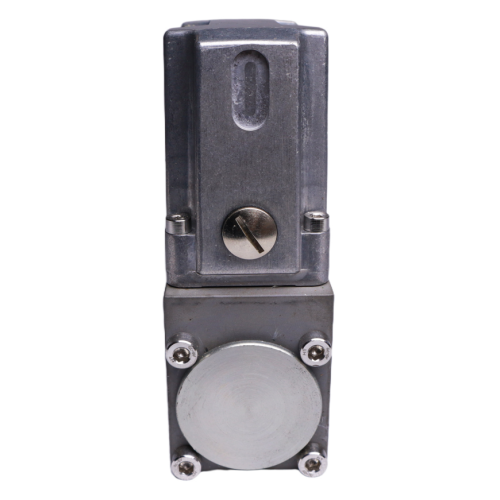

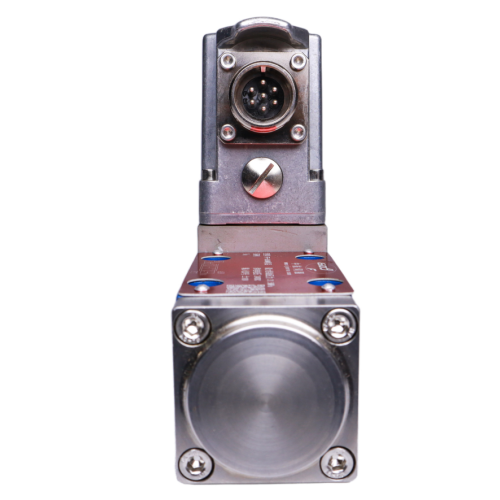

Wholesale Hydraulic Proportional Control Valve

$1085-1650 /Piece/Pieces

Contact Now

Payment Type: T/T
Incoterm: FAS,EXW,CIF,CFR,FOB
Min. Order: 1 Piece/Pieces
Transportation: Ocean,Land,Air,Express

Description

Product Attributes

Model No.: FF-636M

Packaging & Delivery

Selling Units:	Piece/Pieces

Supply Ability & Additional Information

Transportation: Ocean,Land,Air,Express

Payment Type: T/T

Incoterm: FAS,EXW,CIF,CFR,FOB

Product Description

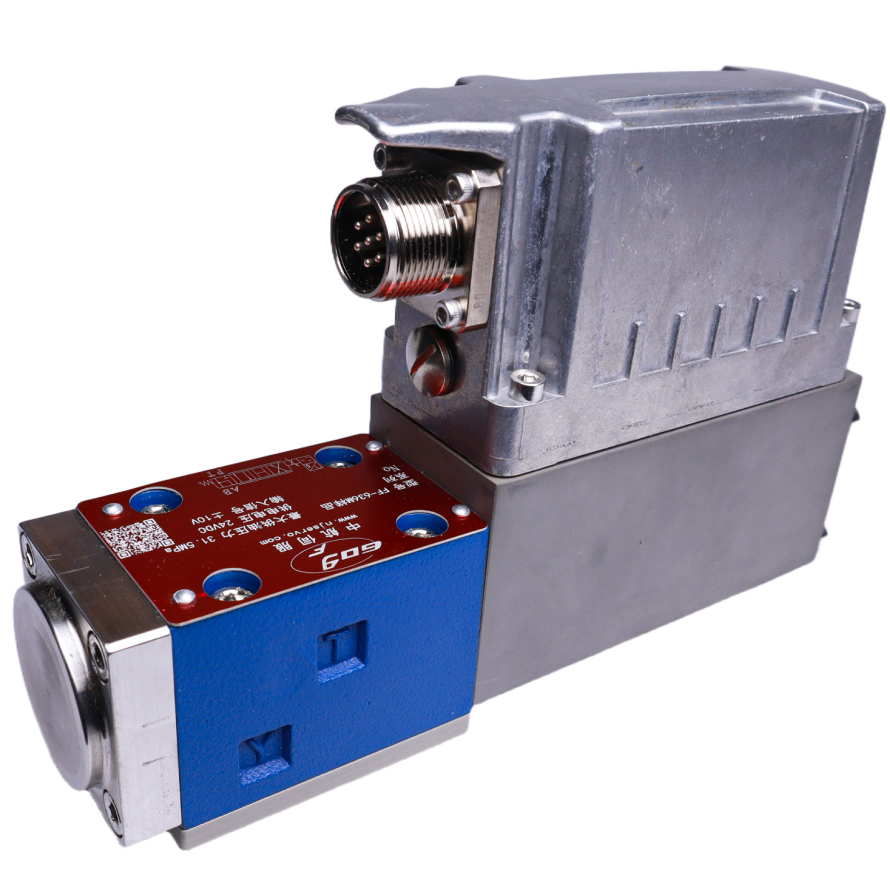

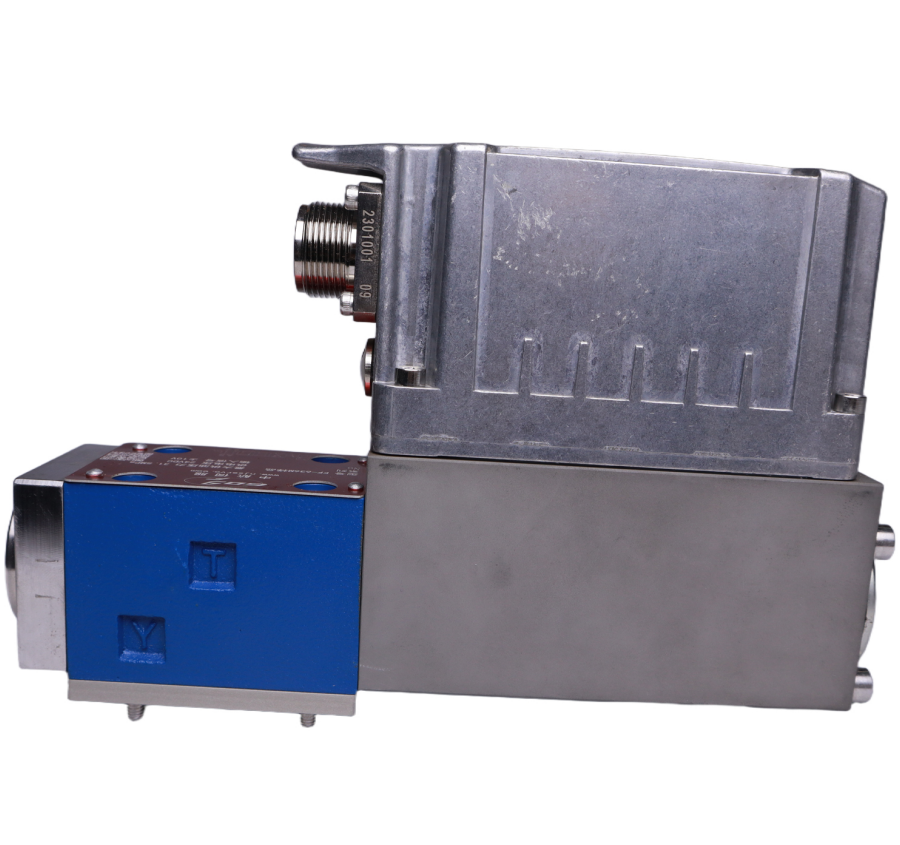

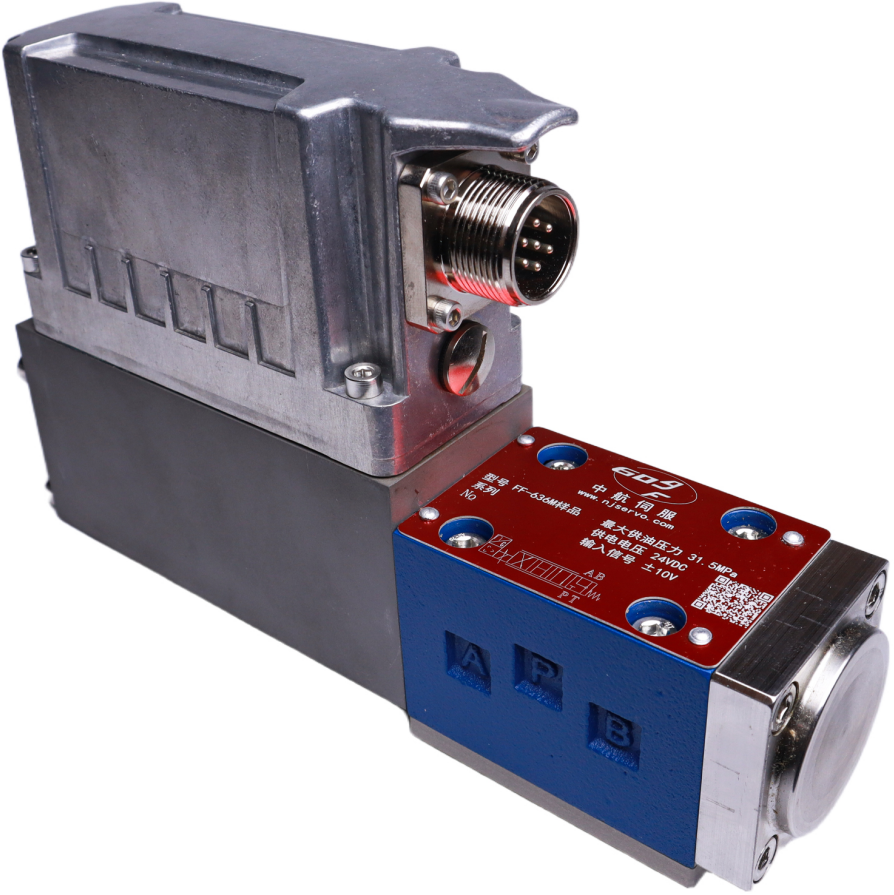

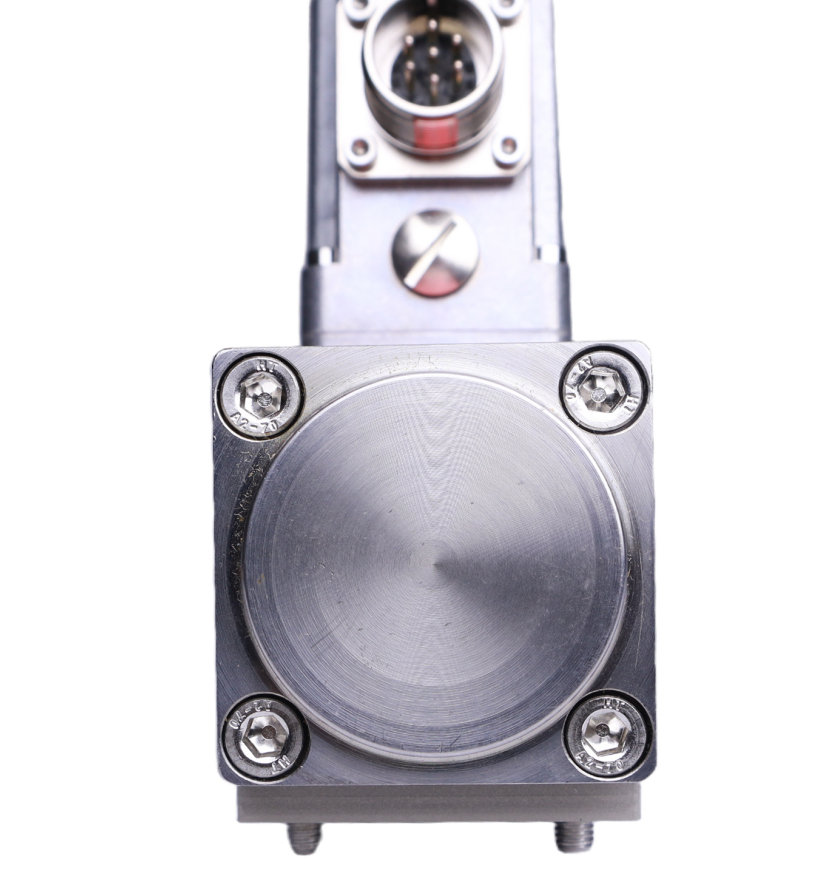

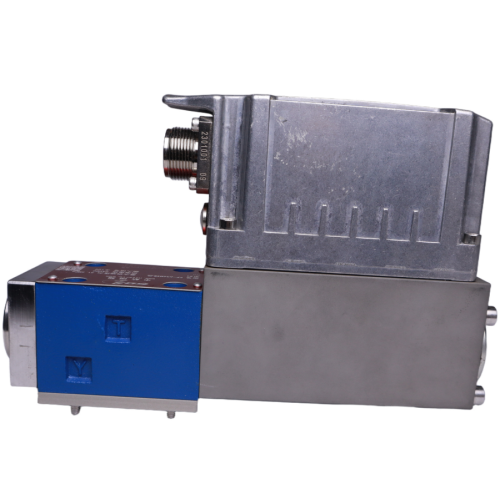

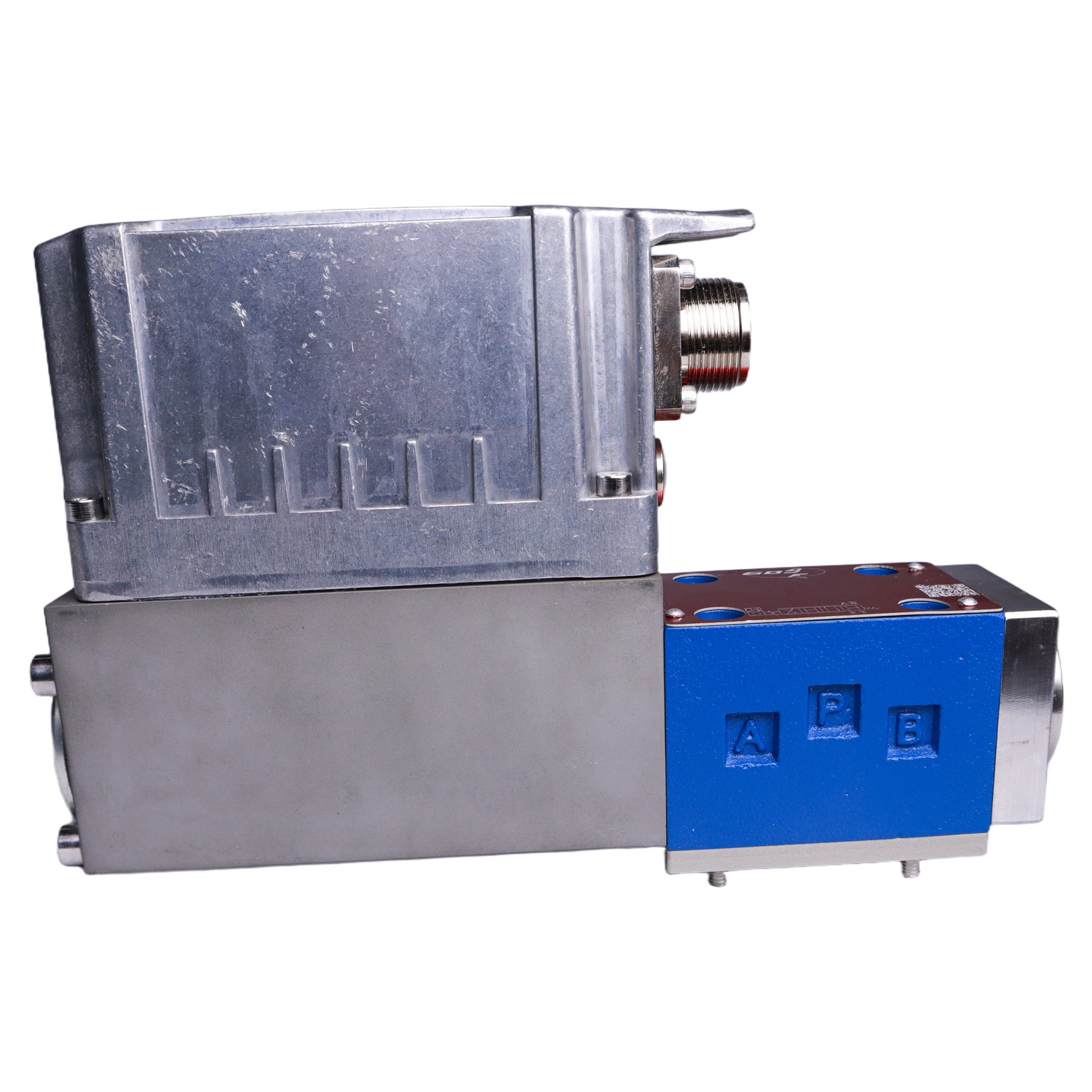

The FF-636M series electro-Hydraulic Servo Valve is a linear direct drive flow Servo Proportional Valve. This type of Servo Valve is directly driven by a proportional solenoid, without a pilot stage or internal throttling small hole structure. Therefore, it has low leakage, low hydraulic power consumption, strong anti pollution ability, and minimal impact on valve dynamics due to low system oil supply pressure drop. The LVDT valve core position sensor is used internally for position closed-loop control, resulting in small hysteresis, high resolution, and good repeatability accuracy. Compared to general servo valves, this series of products has multiple power-off safety position functions to choose from, which can keep the system in a set safe state after unexpected power failure. The control box is designed with an external electrical zero adjustment device, making it more convenient to use. It is widely used in heavy machinery, steel, metallurgical industries, as well as blowing and injection molding machines.

Product Features:

● Large static traffic and high dynamic response

●Internal integrated controller, combined with LVDT and other components to form an electro-hydraulic servo valve

internal closed-loop control

● Good output linearity

●High resolution, small hysteresis loop

●The pilot inlet and return oil can be controlled externally

● External electrical zeroing

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
