Hot Sale Electro-Hydraulic Flow Control Servo Valves Price

$100-5000 /Piece/Pieces

Contact Now

Payment Type: T/T,Paypal
Incoterm: FAS,EXW,CFR,FOB,FCA,CPT
Min. Order: 1 Piece/Pieces
Transportation: Express,Air,Land,Ocean

Description

Product Attributes

Model No.: FF-102

Packaging & Delivery

Selling Units:	Piece/Pieces
Package Type:	carton

Supply Ability & Additional Information

Packaging: carton

Transportation: Express,Air,Land,Ocean

Payment Type: T/T,Paypal

Incoterm: FAS,EXW,CFR,FOB,FCA,CPT

Product Description

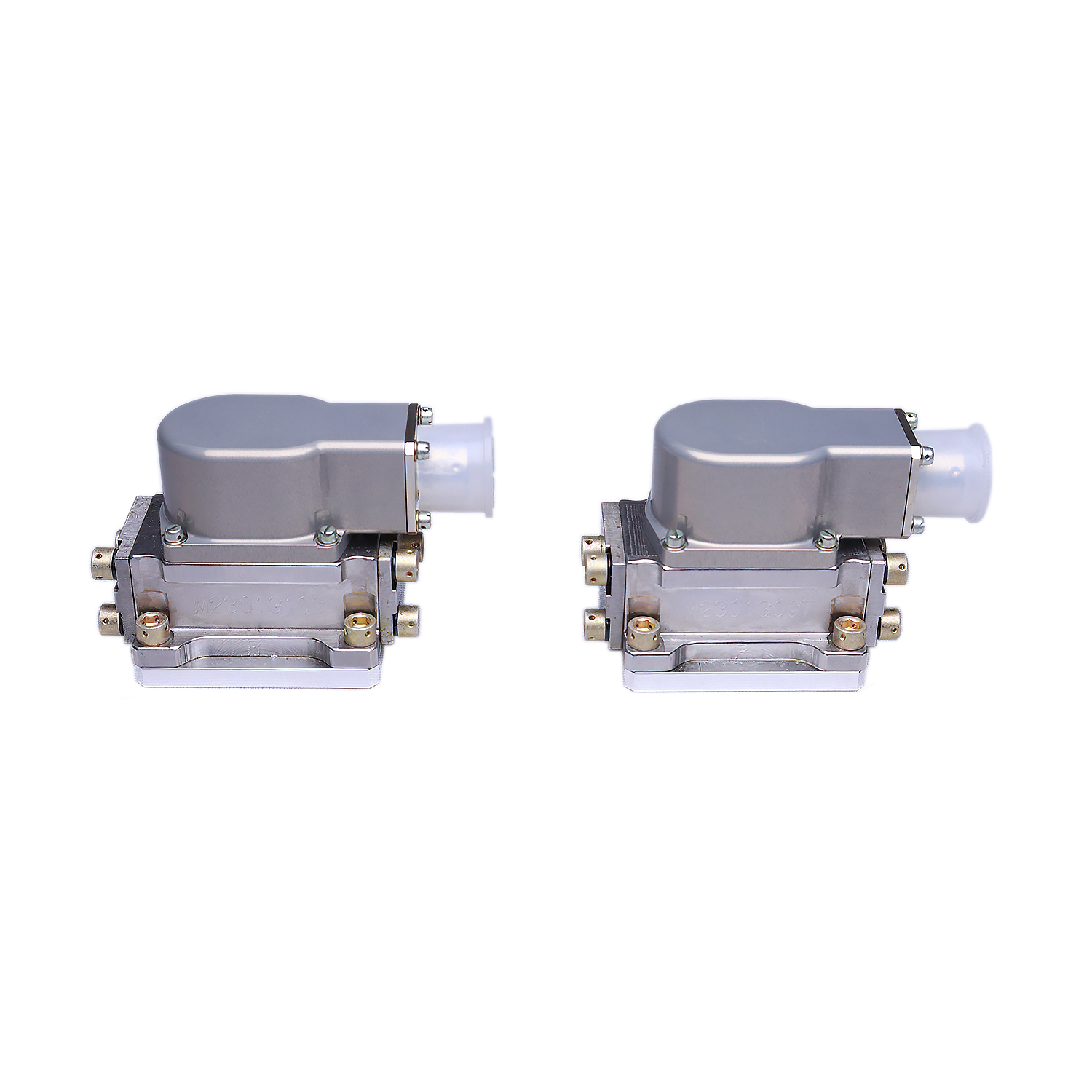

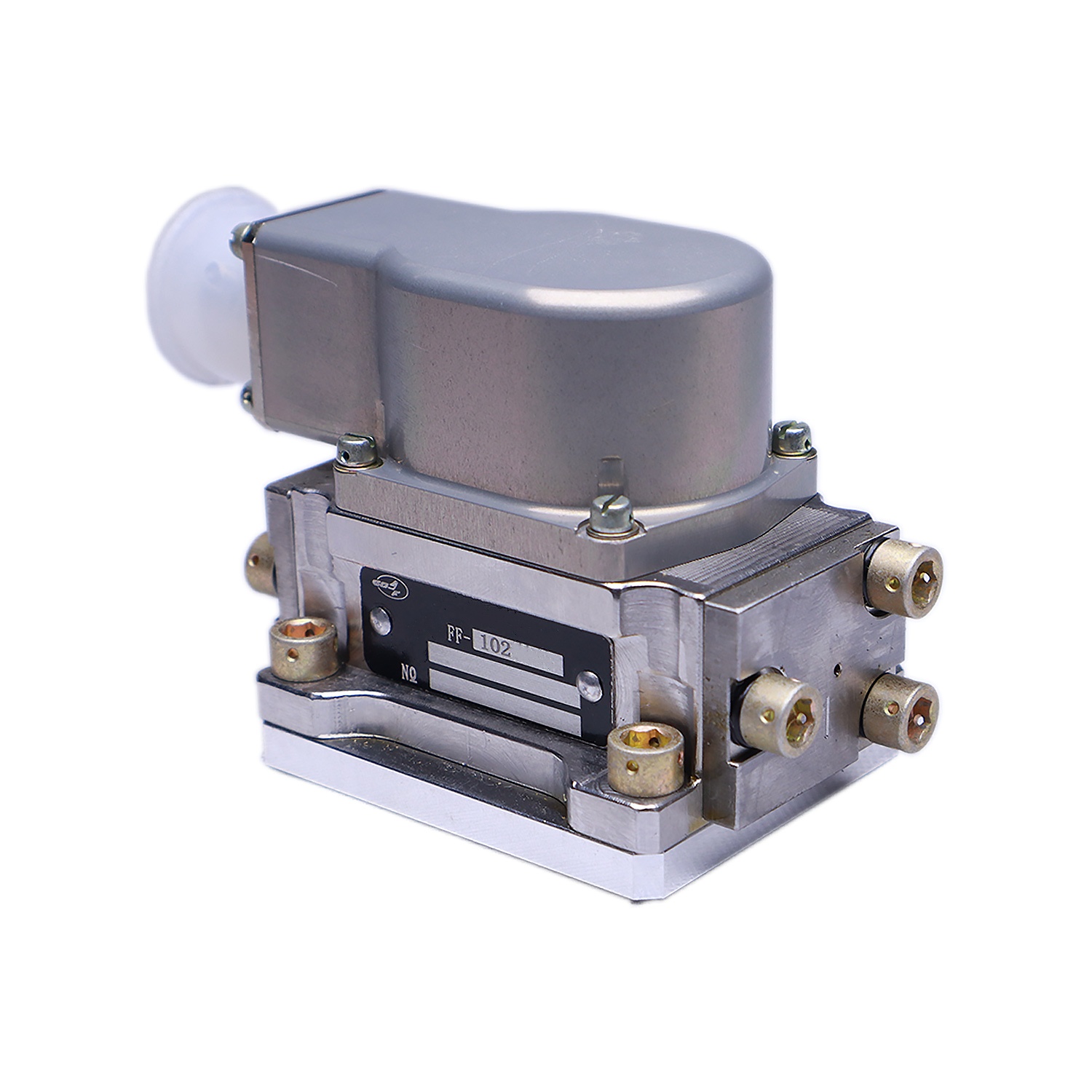

The FF-102 series electro-Hydraulic Servo Valve is a two-stage dual nozzle baffle flow Servo Valve with force feedback. Under a pressure difference of 21MPa, its flow range is 2L/min to 30L/min. This series of servo valves adopts a fully stainless steel shell, compact internal structure, high structural strength, and relatively small volume and weight. The installation direction of product plugs and sockets can be selected according to needs. It has the advantages of fast dynamic response, good linearity, zero drift, stable working performance, high reliability, long service life, small internal leakage, and low power consumption. Suitable for small and medium-sized rolling mills, blow molding machines, testing equipment, etc.

Product Features:

● High control accuracy, fast dynamic response, and easy operation

● All stainless steel shell, high structural strength

● Compact internal structure, small volume, and light weight

● Stable working performance, high reliability, and long service life

● Small internal leakage and low power consumption

● Low hysteresis loop, high resolution, high repeatability accuracy

● Good linearity, strong driving force, and small zero drift

Applications:

Electro Hydraulic Servo Valve is a key component in electro-hydraulic servo control. It is a Hydraulic Control Valve that receives analog electrical signals and outputs modulated flow and pressure accordingly. Electro Hydraulic Servo valves have the advantages of fast dynamic response, high control accuracy, and long service life, and have been widely used in electro-hydraulic servo control systems in aviation, aerospace, shipbuilding, metallurgy, chemical and other fields.
